- Page 1 Quick Start Guide SR655ac This Quick Start Guide shows you how to set up and start using your new gateway.
-
Page 2: Installation
Installation Locate the splitter cable that is included with your SmartRG gateway. It has three ports. 1. Connect the splitter as follows: a. Connect the DSL port of the gateway and the Modem port of the splitter with a telephone cable b. - Page 3 PHONE 1 LAN 1-4 PHONE 2 RESET On/Off RJ11 USB Data Card / LTE RJ45...
-
Page 4: Led Indicators

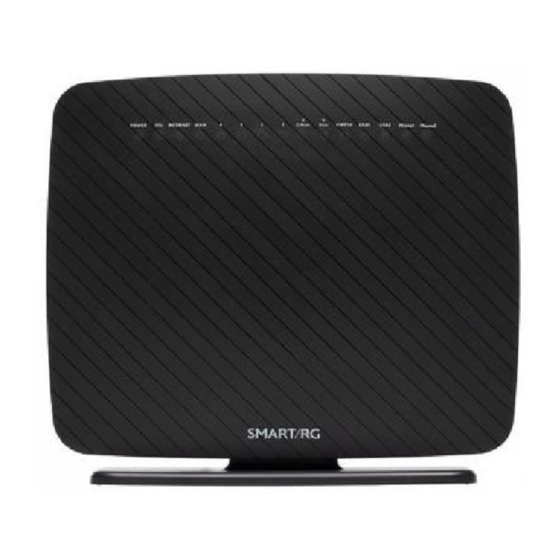

LED Indicators The indicator lights (LEDs) on the front of your SR655ac gateway can help you understand the state of your gateway. Legend: Green Green Blinking Lt. Blue Lt. Blue Blinking Dk Blue Dk. Blue Blinking Action Explanation All LEDs except Feature enabled &/or working correctly... - Page 5 Action Explanation For VDSL only /WAN service (Single Line - For VDSL only WAN service (Bonded Line) Inner or Outer Pair) DSL line 0 acquiring sync DSL line 0 (inner pair) connected DSL Line 0 (Inner pair) is active; DSL line 1 (Outer pair) is not active.
-
Page 6: Quick Gateway Configuration
Quick Gateway Configuration Warning: Do not press the Reset button unless you want to clear the current settings. The Reset button is in a small circular hole on the rear panel. If you want to restore the default settings, insert a thin wire (such as a paper clip) into the hole, press the Reset button gently for 1 second, and then release the button. - Page 7 (advanced). The gateway interface appears, showing the Device Info summary page. Configuring the WAN manually If the automatic connect process is unsuccessful, refer to the Advanced Setup > Layer 2 Interface WAN Services sections of the SmartRG SR655ac Gateway User Manual to manually establish a connection.
- Page 8 WiFi Setup Two methods, WPS and Manual, are available for WiFi setup. Perform the steps on this page first, and then follow the instructions for the applicable method. 1. In the left navigation bar, click Wireless. The Basic page appears, showing information for the 5 GHz band. If you want to set up the 2.4 GHz band, click 2.4 GHz Band in the left menu.
- Page 9 WPS Method If the device you wish to connect to the Internet via your gateway supports the WPS secure WiFi connection method, follow these steps. 1. In the left navigation bar, click Wireless. Then click Security for the wireless band that you want to configure. 2.
- Page 10 Manual Method Set up your gateway’s parameters first, then follow these steps. 1. In the left navigation bar, click Wireless and then click Security for the wireless band that you want to configure. 2. Scroll down to the Manual Setup AP section.
-
Page 11: Optional Wall Mount
Optional Wall Mount Using a Phillips-head screwdriver, remove the mount from its Gateway Front present location on the bottom of the gateway. Slide the mount onto the back of the gateway. Tighten the screw located in the bottom of the mount. Using the template below, mount the two included screws to 1/16”... - Page 12 Record Your SR655ac WiFi Settings Predefined wireless settings If you change the preset wireless settings WiFi network name (SSID) Network key (password) Additional Support If you require further instructions, please contact your local ISP Support. SMARTRG INC. ALL RIGHTS RESERVED. COPYRIGHT 2018 ©...
