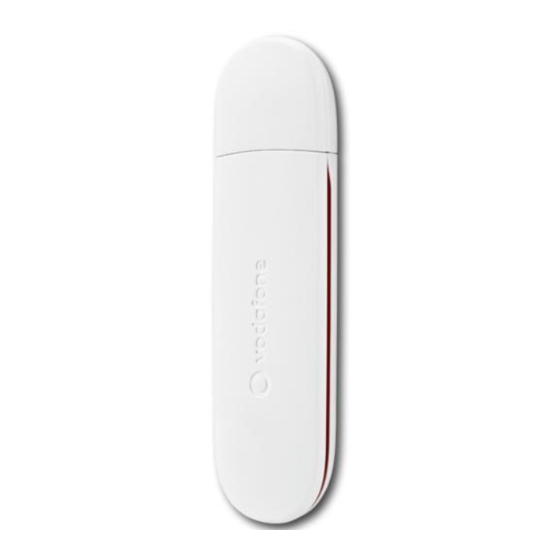

- Page 1 ZTE K3570-Z HSPA USB Modem Quick Guide ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: (+86) 755 26779999 URL: http://www.zte.com.cn E-mail: mobile@zte.com.cn...
- Page 2 ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.
-
Page 3: Table Of Contents
Contents Contents ..........................3 Introduction ........................... 4 Hardware Installation ......................4 Outline and Parts ....................... 4 Inserting the (U)SIM Card ....................4 Connecting to Your Computer ..................5 Software Installation ......................6 For Windows OS ....................... 6 Installation ........................6 Uninstall ........................ -
Page 4: Introduction
Introduction The ZTE K3570–Z USB modem is a multi-mode USB modem, working in mobile networks. With USB interface connecting to a laptop or a desktop PC, it integrates the functionality of a modem and a mobile phone(SMS), and combines mobile communication with Internet perfectly. It supports data and SMS services through the mobile phone network, enabling you to communicate anytime and anywhere. -
Page 5: Connecting To Your Computer
Notes: Do not open the front cover rudely so as to avoid the damage of the front cover. 2. Insert the (U)SIM card with the metal contact area facing downwards into the slot, shown as the following picture. 3. Put the front cover of the modem flatly upon the body of modem. Direct the front cover towards the locking catches on the sides of the modem, and then push the front cover of the modem to lock the front cover into its place. -
Page 6: Software Installation
Software Installation On different operating systems, the installation and removal procedures may differ. Follow the system prompts during operation. For Windows OS Installation 1. Your system will start the software setup process automatically when you connect the modem to your computer correctly. Follow the system prompts to complete the software installation. Notes: If the system does not launch installation automatically, you can run the installation program in path of “My Computer >... - Page 7 clicking the Change button, and then click the Next button. 4. Wait until the setup procedure complete, click the Finish button to end the installation.
-
Page 8: Uninstall
Notes: If you have problems with installation after the upper operation, please contact the shop or ZTE. Uninstall 1. Close the application program before the software uninstalls. Click the Start > Programs > Dialog Manager > Uninstall menu on your computer. Follow the system prompts to complete the software uninstall. -
Page 9: For Mac Os
For MAC OS Installation 1. The system will automatically display a Dialog Manager CD-ROM icon on the desktop, when you connect the modem to your computer correctly. Double click the Dialog Manager in the Dialog Manager, and follow the system prompts to complete the software installation. 2. - Page 10 3. Select the folder that you want to install the software, and then click the Continue button. 4. Select the installation type by clicking the Customize button, and then click the Install button.
- Page 11 5. Please enter user name and password to be authenticated, and click the OK button to install. 6. Installation is in progress, after a while, click the Close button to finish software installation.
-
Page 12: Uninstall
Notes: If you have problems with installation after the upper operation, please contact the shop or ZTE. Uninstall 1. Close the application program before the software uninstalls. Double click the Finder > Applications > Uninstall Dialog Manager to uninstall the application software. Follow the system prompts to complete the software uninstall. -
Page 13: Installation
Installation Before installation, make sure that you have the needed dependencies installed (qt3, wvdial1.5.6 or newer), and you are in root privilege. Notes: If you can find the file "/etc/wvdial.conf" and "/usr/lib/qt3", then you have installed wvdial and qt3. The steps of installation are as following: 1. -
Page 14: Uninstall
(supported versions 2.6.x)” and “compiler/binutils for kernel compilation” and install them. If you have any problems with installation after the upper operation, please contact the shop or ZTE. Uninstall Close the application program before the software uninstalls. Make sure you are in root privilege. -
Page 15: How To Use Your Modem
Or open a shell-terminal as root and run a shell-command "/opt/Dialog_Manager/uninstall.sh" in the shell-terminal. How to Use Your Modem Enable quick operation of the following functions: Internet Connect to the Internet. -
Page 16: Warning And Notice
Short Message Send SMS and read SMS. Phonebook Save and view the different information of the contact list. Settings Set normal relative information for the modem. Statistic Record the online time and flux. help Show the help information. Warning and Notice To the Owner Some electronic devices are susceptible to electromagnetic interference sent by modem if •... -
Page 17: Limited Warranty
End User shall have no right to reject or return the Product, or receive a refund for the Product from ZTE under the above-mentioned situations. This warranty is End User’s sole remedy and ZTE’s sole liability for defective or nonconforming •... -
Page 18: Limitation Of Liability
Limitation of Liability ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using of this product, whether or not...
