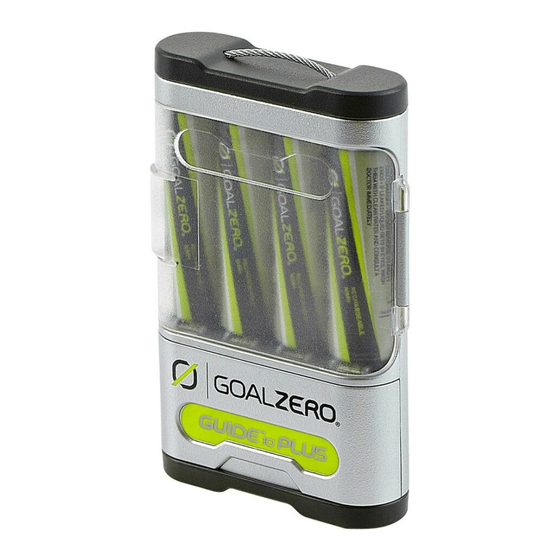

GOAL ZERO GUIDE 10 Plus Manual

GUIDE PLUS
10
B A T T E R Y P A C K
Get to know your gear
Getting Started
1. Be sure to ACTIVATE YOUR WARRANTY at www.GOALZERO.com/warranty
2. Install batteries in correct orientation.
3. Turn on and use.
4. Recharge from any GOAL ZERO Nomad solar panel or USB power source.
How to use your gear
Power switch
Turn to ' o n' to enable output; turn to the
legend below.
HANG IT
Power LED
Sturdy hanging wire provides
Indicates power and charging state. See power legend below.
convenient storage options.
USB output port
Accepts any standard USB cable for charging USB devices. To
PROTECT IT
use, turn GUIDE 10 PLUS to 'on.'
Batteries are housed securely
behind a transparent door.
LED Flashlight
100+ hours of light per charge. Turn on with power switch.
Solar charging port
Recharge from GOAL ZERO Nomad 7 or Nomad 3.5 solar panels.
POWER IT
Power portable electronic devices
Mini-USB charging port
directly from the USB output port.
Recharge from USB sources, like a computer.
LIGHT IT
Equipped with a bright LED flashlight,
which never needs replacing.
GUIDE 10 PLUS power legend:
Technical Specs
Usage
to turn on flashlight. See
Charges from the following:
Any USB power source
GOAL ZERO Nomad 3.5 (solar port)
GOAL ZERO Nomad 7 (solar port)
Inputs
USB-mini port
Solar port
Outputs
Batteries
USB standard port
Flashlight
Internal
Battery capacity
Life-span
Shelf Life
General
Weight w/ batteries
Dimensions
Warranty
Certifications
Optimal operating temp.
*When using GOAL ZERO NiMH rechargeable low self-discharge AA cells.
**AAA batteries are not included. GOAL ZERO batteries are available at
GOALZERO.com. AAA batteries come with adapter.
Approx. charge time:
8-10 hours
6-8 hours
2-4 hours
5V, 0.7A max (3.5W)
6.5V, 1.5A max (7W)
4x AA or AAA** NiMH cells
5.0V, 1.0A max (5W)
100mW white LED, 100+ hours*
10 Wh*, use only NiMH cells
hundreds of cycles*
12 months*
0.4 lbs (0.18 kg)
2.5x4x0.75 in (6x10x2 cm)
12 months
FCC and CE
32-104ºF (0-40ºC)
