- Page 1 UVAIR216 USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...
-
Page 2: Table Of Contents
Thank you for purchasing a GOLDENSEA UV product. You have acquired a powerful and versatile product. We are confident that you will be satisfied with our excellent product and service. For your own safety, please read this user manual carefully before operating the product. - Page 3 www.goldenseauv.com Voltage Input: AC100-240V~, 50/60Hz; Power: 450W; Product Size: 457x429x1075mm This product is for commercial use, such as in conference rooms, offices, hotels, schools, theaters, waiting rooms, restaurants, etc. IMPORTANT! When using electrical equipment, basic safety precautions should always be followed. READ AND FOLLOW ALL SAFETY INSTRUCTIONS carefully before using this product, save it for future reference.
-
Page 4: Product Overview

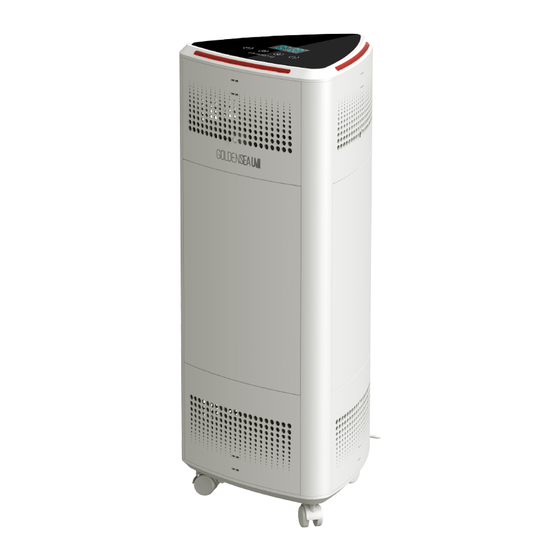

www.goldenseauv.com 1. Product Overview 2. Control Panel Overview Display Panel: Fan Speed Time Mode - - WIFI indicator PM2.5 Indicator - - Status and Alert Key Lock - - Lamp Replacement Indicator Filter Replacement Indicator Control Buttons: V1.0... - Page 5 www.goldenseauv.com Touch to Select the function in main menu Touch to go Up to select different setting Touch to go Down to select different setting Touch to Start or Stop operation, or Enter the selected setting 4 Time Modes: ON (continuous); 60 min; 90 min; 120 min 10 Fan Speeds: from 1(low) to 10(high) WIFI connected;...
-
Page 6: Using The Product
www.goldenseauv.com 3. Using The Product 3.1 Before Use • Always place the product on a stable and flat surface with the universal wheels brakes engaged before and during use. • For best purification and disinfection performance, close all the doors and windows. •... - Page 7 • Make sure the LAN network you connected is 2.4G WIFI, not 5G WIFI. • One LAN network is only for one user to bind device, not for multi-user. Download "GOLDENSEA UV" APP from App store or Android market and install into your mobile phone.
- Page 8 www.goldenseauv.com 4. Select the device from 5. Choose “Main Building” 6. You can find the the list of “Local Devices and click “Bind”. (you can device(s) in the “Main Discovered”. also choose “Main Room” Building” and “Rooms” as an option) 7.
-
Page 9: Moving The Unit
www.goldenseauv.com 4. Moving The Unit This product has been integrated with 3 universal wheels for fast and easy relocation. Before moving the product, make sure the power cable is disconnected from power socket. Simply push the brake lever down to engage the brake; or lift the lever to release the brake. -
Page 10: Dimensional Drawings
www.goldenseauv.com 7. Dimensional Drawings 8. Replacing and Cleaning The Filters • Always turn off the product and unplug from the socket before replacing the filters. • The HEPA and Active Carbon Filters are not washable or reusable. • Before carrying out any replacement and cleaning, wait about 15 minutes after switching off the product (to let the UV tubes cool down to avoid scalding). - Page 11 www.goldenseauv.com Steps: 1. Push in on the right side of the front 2. Remove the air inlet cover by simply door and release to open. pulling it out. * The other two doors can be opened by pushing out from inside. 3.
-
Page 12: Replacing The Uv Lamps
www.goldenseauv.com icon and pressing for 5 seconds to reset. 8.2 Clean the Pre-filters The Pre-filters need to be checked and cleaned regularly to avoid dust accumulated and wind flow efficiency reduced. • Do not clean the Pre-filters with a vacuum. •... - Page 13 www.goldenseauv.com Steps: 1. Push in on the right side of the front 2. Loosen the 2 screws and remove door and release to open. the UV shield cover by pulling it out. * The other two doors can be opened by * If the screws are too tight to turn by hand, pushing out from inside.
-
Page 14: Troubleshooting Tips
www.goldenseauv.com the two clips upwards on both sides. 5. Re-install the UV tube holder cover 6. Re-install the UV shield cover and and tighten the 2 screws. tighten the 2 screws. Push in on the right side of the door to close. -
Page 15: Features
www.goldenseauv.com just replaced? 1. Check if you have reset the filter/lamp in the display menu after replacement. 11. Features Light Source • Lamp: TUV PL-L 36W/4P 1CT/25 (PHILIPS) or HNS L 36W 2G11 GFT36DL/2G11/SE/OF PURITEC UV-C Germicidal Low Pressure Lamp (OSRAM) •... - Page 16 www.goldenseauv.com Errors and omissions for all information given in this user manual are expected. All information is subject to change without prior notice. V1.0...
