ESAB OCE 2H Instruction Manual

Hide thumbs Also See for OCE 2H:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

OCE 2H
101103105107109111102021110025108024042106023061104022041100020040060001
Bruksanvisning
Brugsanvisning
Bruksanvisning
Käyttöohjeet
Instruction manual
Betriebsanweisung
0443 406 001
030303
Manuel d'instructions
Gebruiksaanwijzing
Instrucciones de uso
Istruzioni per l'uso
Manual de instruções
Ïäçãßåò ÷ñÞóåùò
Valid for serial no. 535- -xxx- -xxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OCE 2H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESAB OCE 2H

Summary of Contents for ESAB OCE 2H

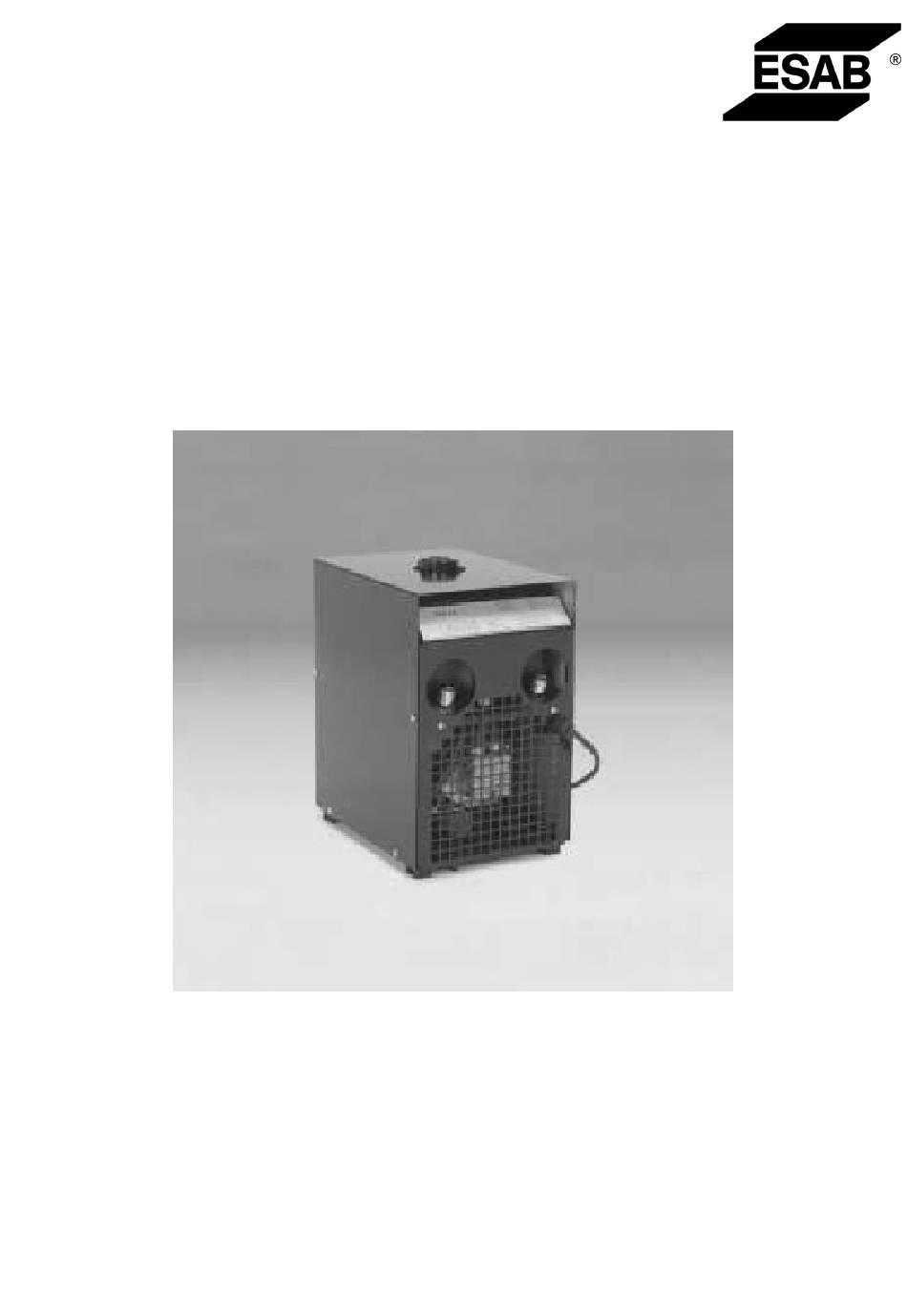

  • Page 1 OCE 2H 101103105107109111102021110025108024042106023061104022041100020040060001 Bruksanvisning Manuel d’instructions Brugsanvisning Gebruiksaanwijzing Bruksanvisning Instrucciones de uso Käyttöohjeet Istruzioni per l’uso Instruction manual Manual de instruções Betriebsanweisung Ïäçãßåò ÷ñÞóåùò 0443 406 001 030303 Valid for serial no. 535- -xxx- -xxxx...
  • Page 2 SVENSKA ..........DANSK .
  • Page 3 ENGLISH 1 DIRECTIVE ............2 SAFETY .
  • Page 4 DIRECTIVE DECLARATION OF CONFORMITY ESAB Welding Equipment AB, 695 81 Laxå, Sweden, declares that cooling unit OCE 2H from serial number 452 onwards, conforms to standard EN 60204--1, in accordance with the requirements of di- rective (73/23/EEC) and appendix (93/68/EEC) and standard EN 50199 in accordance with the re- quirements of directive (89/336/EEC) and appendix (93/68/EEC).

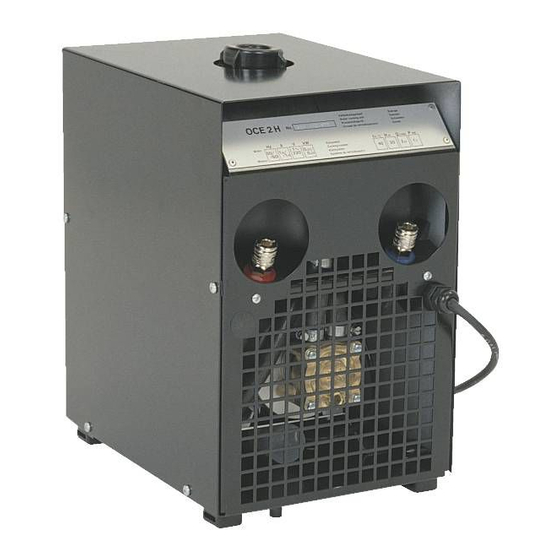

  • Page 5 TECHNICAL DESCRIPTION The OCE2 H cooling unit is designed primarily for cooling welding torches, TIG torches included. The cooling unit consists of: 1. Pump 2. Electric motor 3. Fan 4. Radiator 5. Water tank 6. Casing 7. Optional accessories, see page 30. dgb2d001 The pump is of the turbine type and is designed for high pressure operation and low water consumption.
  • Page 6 Optional accessories include a flow guard (7) which can be fitted to monitor the mini- mum water flow (ca 1 l/min). This should be installed in the return line (hot side) be- tween the radiator water connection and the quick--connector. dgb2d002 Fitted to one end panel of the cooling unit are two quick--connectors for the water lines.
  • Page 7 Cooler Cooling effect (40°C overtemp. and 2,0 l/min) 2,0 kW Cooling effect (60°C overtemp. and 2,0 l/min) 3,0 kW Water pressure at 2,0 l/min 220 kPa (2,2 bar) Total water consumption Overtemperature* 60°C Enclosure type IP23** Continous A--weighted noise pressure 72 dB For physical dimensions, see dimension drawing on page NO TAG.
  • Page 8 MAINTENANCE 1. Radiator The air flowing through the radiator carries particles of dust which can become attached to the cooling pipes and fins, especially in a dirty working environment. This eventually reduces the cooling performance, so the radiator should be regularly blown clean using compressed air.
