COOL 2
Instruction manual
Valid for: serial no. 324-xxx-xxxx
0463 348 001 GB 20170302

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COOL 2 and is the answer not in the manual?

Questions and answers

Related Manuals for ESAB COOL 2

Summary of Contents for ESAB COOL 2

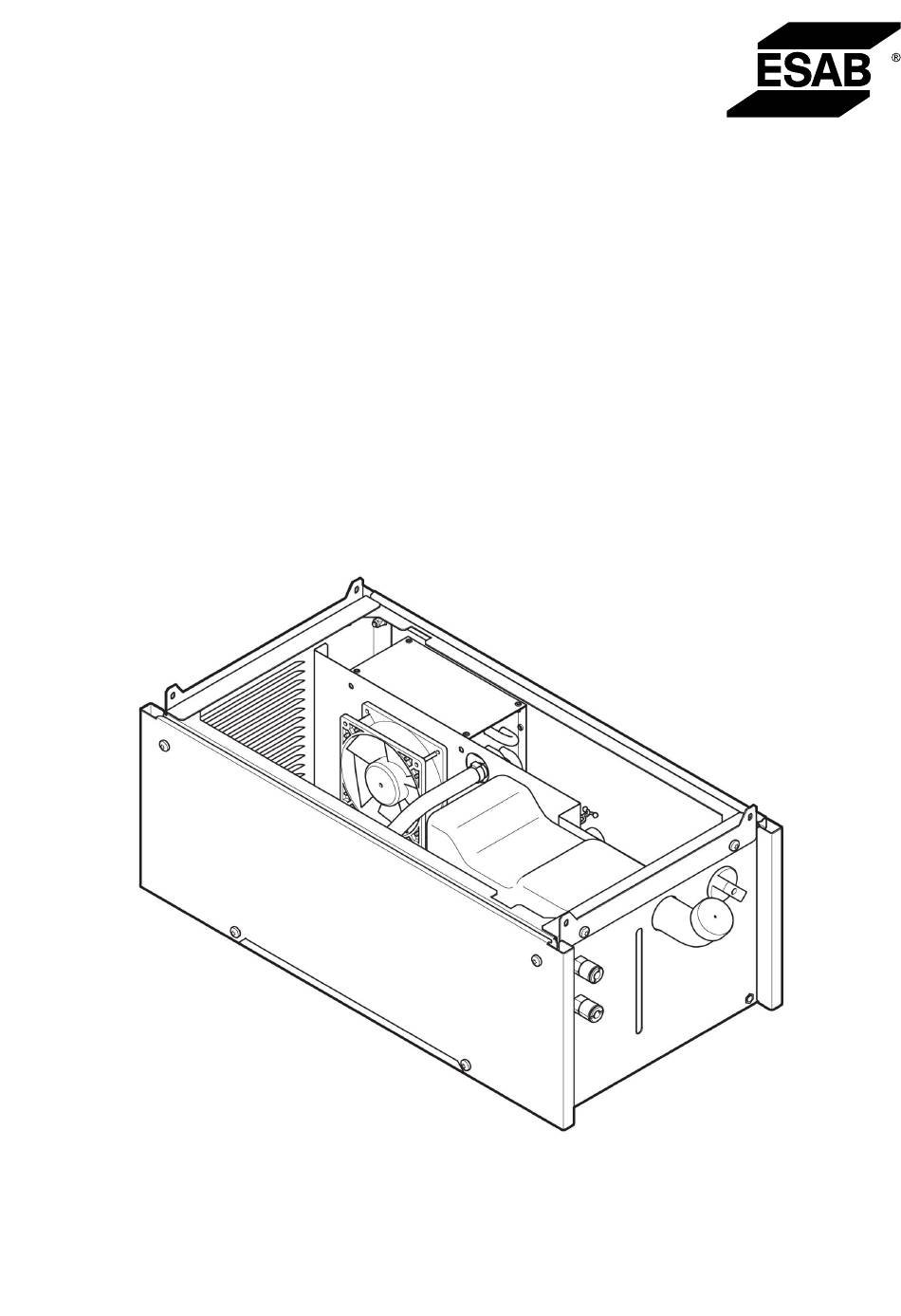

  • Page 1 COOL 2 Instruction manual Valid for: serial no. 324-xxx-xxxx 0463 348 001 GB 20170302...

  • Page 3: Table Of Contents

    MAINTENANCE ..................... 10 Inspection and cleaning................Filling the coolant..................FAULT TRACING................... ORDERING SPARE PARTS ................12 ASSEMBLY INSTRUCTIONS ................DIAGRAM ......................PUMP DATA......................ORDERING NUMBERS ..................ACCESSORIES ....................Rights reserved to alter specifications without notice. 0463 348 001 © ESAB AB 2017...

  • Page 4: Safety

    Data Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace.
  • Page 5 For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. 0463 348 001 - 5 -...

  • Page 6: Introduction

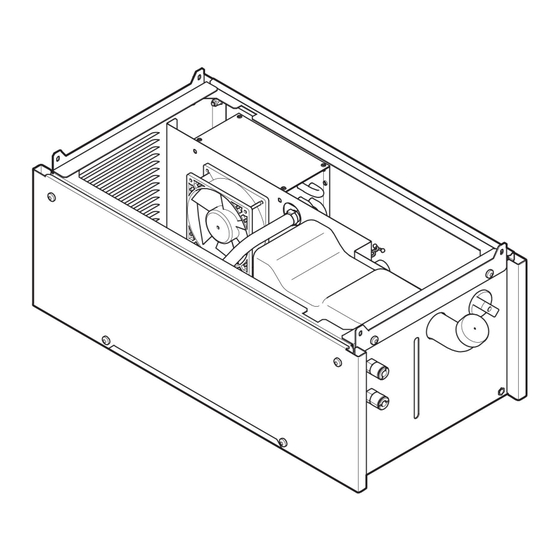

    2 INTRODUCTION INTRODUCTION Cooling unit COOL 2 is intended for cooling water-cooled MIG/MAG welding torches. Accessories for the product can be found in the "ACCESSORIES" chapter of this manual. Equipment The cooling unit is supplied with installation instructions and instruction manual.

  • Page 7: Technical Data

    40 V AC / 2A, 50/60 Hz Cooling power 1 kW Noise < 70 dB(A) (Constant sound pressure when idling) Coolant "ESAB's ready mixed coolant, see the "ACCESSORIES" chapter. Coolant quantity 4.5 l Maximum water flow 1.8 l/min Max pressure lift for torch Q 4.6 bar...

  • Page 8: Installation

    Power supply The cooling unit is supplied from the power source, see the"OPERATION" chapter. Installing welding equipment Installation instruction for this product can be found in the "ASSEMBLY INSTRUCTIONS" chapter". 0463 348 001 - 8 - © ESAB AB 2017...

  • Page 9: Operation

    The pump has an enclosed pressure relief valve. The valve opens gradually when the pressure is too high. This can occur if a hose is folded, which causes the flow to fail or stop. 0463 348 001 - 9 - © ESAB AB 2017...

  • Page 10: Maintenance

    Then drain the tank manually, i.e. empty via the tank's filling hole. Filling the coolant Only use ESAB's ready mixed coolant, see the "ACCESSORIES" chapter. • Fill with coolant. (The fluid level must not exceed the upper marking but neither must it be below the lower marking.)

  • Page 11: Fault Tracing

    Poor cooling effect • Clean the cooling element using compressed air. • Check the coolant level. • Check that the on/off switch on the cooling unit is set to ON. 0463 348 001 - 11 - © ESAB AB 2017...

  • Page 12: Ordering Spare Parts

    Spare parts and wear parts can be ordered through your nearest ESAB dealer, see the back cover of this document. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list.

  • Page 13: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 0463 348 001 - 13 - © ESAB AB 2017...
  • Page 14 ASSEMBLY INSTRUCTIONS 0463 348 001 - 14 - © ESAB AB 2017...

  • Page 15: Diagram

    DIAGRAM DIAGRAM 0463 348 001 - 15 - © ESAB AB 2017...

  • Page 16: Pump Data

    PUMP DATA PUMP DATA 0463 348 001 - 16 - © ESAB AB 2017...

  • Page 17: Ordering Numbers

    ORDERING NUMBERS Ordering Number Denomination Type 0465 427 880 Cooling unit COOL 2 0459 839 092 Spare parts list COOL 2 Technical documentation is available on the Internet at www.esab.com. 0463 348 001 - 17 - © ESAB AB 2017...

  • Page 18: Accessories

    ACCESSORIES ACCESSORIES 0465 720 002 ESAB ready mixed coolant (10 l / 2.64 gal) Use of any other cooling liquid than the prescribed one might damage the equipment. In case of such damage, all warranty undertakings from ESAB cease to apply.
  • Page 19 ACCESSORIES 0463 348 001 - 19 - © ESAB AB 2017...
  • Page 20 ESAB subsidiaries and representative offices Europe THE NETHERLANDS North and South America SOUTH KOREA ESAB Nederland B.V. ESAB SeAH Corporation AUSTRIA Amersfoort ARGENTINA Kyungnam ESAB Ges.m.b.H Tel: +31 33 422 35 55 CONARCO Tel: +82 55 269 8170 Vienna-Liesing Fax: +31 33 422 35 44...
