1K221-T
A150623

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1K221-T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartscher 1K221-T

Summary of Contents for Bartscher 1K221-T

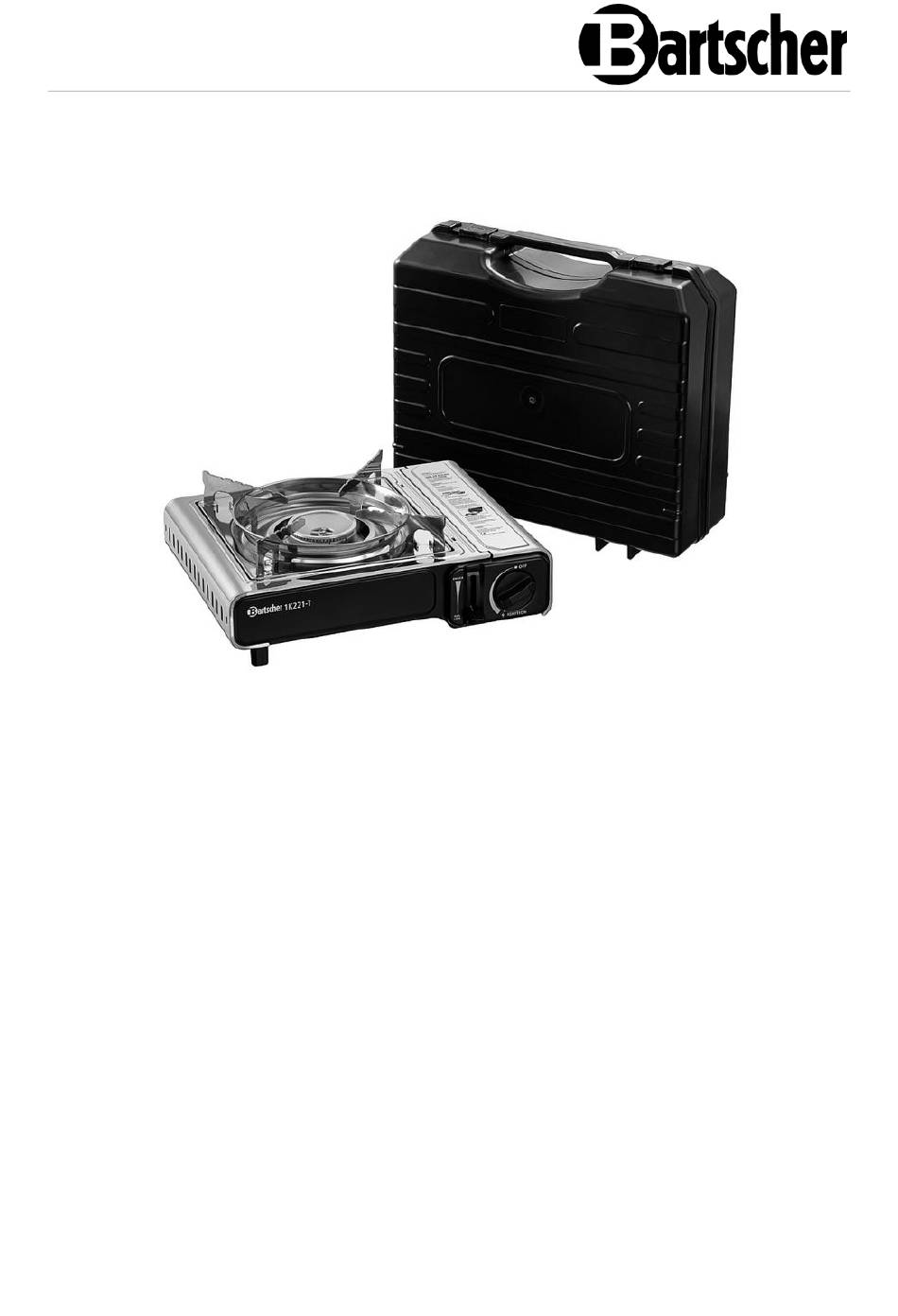

  • Page 1 1K221-T A150623...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Service hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com PIN: 2806CU0001 | CE2806 Version: 1.0 Date of preparation: 2021-10-15...

  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage ..............

  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmunge n eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬ s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.

  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Do not use the appliance, when the gas cartridge shaft cover is in open position. • The appliance may be fuelled only with Bartscher butane gas cartridges, art. No. A150625, in accordance with EN 417. Connecting other gas cartridges may be hazardous.
  • Page 7 Safety Fig. 2 • Before connecting the gas cartridge, check the gasket (a, Fig. 2). Make sure it is in its place and in good condition. ATTENTION! Do not use the appliance if its gasket is damaged. • Do not use the appliance if is not tight, damaged or operates improperly. •...
  • Page 8 Safety Flammable Materials • Never use the appliance near flammable or easily combustible materials (e.g.: petrol, spirit, alcohol). High temperature triggers evaporation of these materials, and, as a result of contact with sources of ignition, an explosion may occur. • Use the appliance only with materials designed to this end and with correct temperature settings.

  • Page 9: Intended Use

    Safety Improper Use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.

  • Page 10: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.

  • Page 11: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 12: Technical Data

    Technical Data Technical Data Technical Specifications Name: Gas cooker 1K221-T A150623 Art. No.: Material: steel Number of hobs: Cookware diameter, from–to, in mm: 150 - 270 Gas consumption at maximum setting, in g/hour (at 20°C of ambient temperature): Max. power output per hob, in W:...

  • Page 13: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance Fig. 3 1. Burner grate 2. Piezoelectric ignition 3. Thermoelement 4. Burner head 5. Wind cover 6. Gas cartridge cover 7. Gas cartridge 8. Gas cartridge shaft 9. Operating elements 10. Heating plate, fixed 11.
  • Page 14 Technical Data Fig. 4 13. FUEL LOCK (OFF) position of the gas 14. UNLOCK (ON) position of the gas cartridge locking lever cartridge locking lever 15. Min. flame setting 16. Rotary controller OFF position 17. Rotary controller with piezoelectric 18. Ignition position ignition 19.
  • Page 15 Technical Data – after making sure that the gas cartridge locking lever (20) is in UNLOCK (13) position, insert a new gas cartridge in the gas cartridge shaft (8). If a new gas cartridge is not available, cool the removed gas cartridge with water. The gas cartridge may be installed only when the rotary controller (17) is in OFF position.

  • Page 16: Functions Of The Appliance

    Installation and operation Functions of the Appliance The gas cooker may be flexibly used outdoors. With suitable cookware, you may prepare and heat up food. Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards.

  • Page 17: Operation

    Installation and operation • Never place the appliance directly next to walls, furniture, or other objects made of flammable materials. Assure a minimum lateral clearance of the appliance of 30 cm. • If keeping the minimum clearance is not possible, and the appliance must be installed directly next to regular or low walls, pieces of furniture or other flammable objects, it is necessary to install protective materials (e.g., films made of materials resistant to high temperatures), which sustain temperatures of at...
  • Page 18 Installation and operation • Reinigen Sie das Ger ät und Zubehörteile vor dem Gebrauch gründlic h nac h den Anweis ungen i m Absc hnitt 6 „R einigung “. Ac hten Sie darauf, das s keine F euchtigkeit i n die el ektrisc he Anl age bz w. den Sc haltkasten ei ndringt. Tr oc knen Si e das Ger ät und Z ubehörteile gründlich ab! •...
  • Page 19 Installation and operation Igniting Burner (Fig. 3, 4, 9, 10) 1. Next, rotate the rotary controller (17) to the leftmost ignition position (18) and hold it for a couple of seconds in the position until the ignition clicks. (Fig. 9) 2.

  • Page 20: Cleaning And Maintenance

    Cleaning and Maintenance Replacing Gas Cartridge (Fig. 3, 4, 11) WARNING! Gas cartridges may be replaced only in open air, away from any possible sources of ignition, such as: open flame, ignition flame, electric cooking appliances. While at it, make sure there are no people in immediate vicinity.

  • Page 21: Possible Malfunctions

    Possible Malfunctions 1. Clean the appliance thoroughly after each use. 2. Remove the gas cartridge from the shaft. Follow the instructions in section 'Replacing Gas Cartridge'. 3. Wipe the appliance with a soft, damp cloth. 4. Then dry the appliance with a soft cloth. 5.

  • Page 22: Disposal

    Disposal Disposal At the end of the appliance's operational life cycle, dispose of the appliance, observing national and local regulations. To this end, we recommend contacting a professional company or local authorities' unit, proper for utilisation matters. Before disposing of the appliance make sure that the appliance cannot be restarted to prevent any abuse and related risks, and then deliver it to the local collection point.
