Activ8rlives Pulse Oximeter 3 Manual

Wireless monitor. pulmonary/cardiovascular health
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

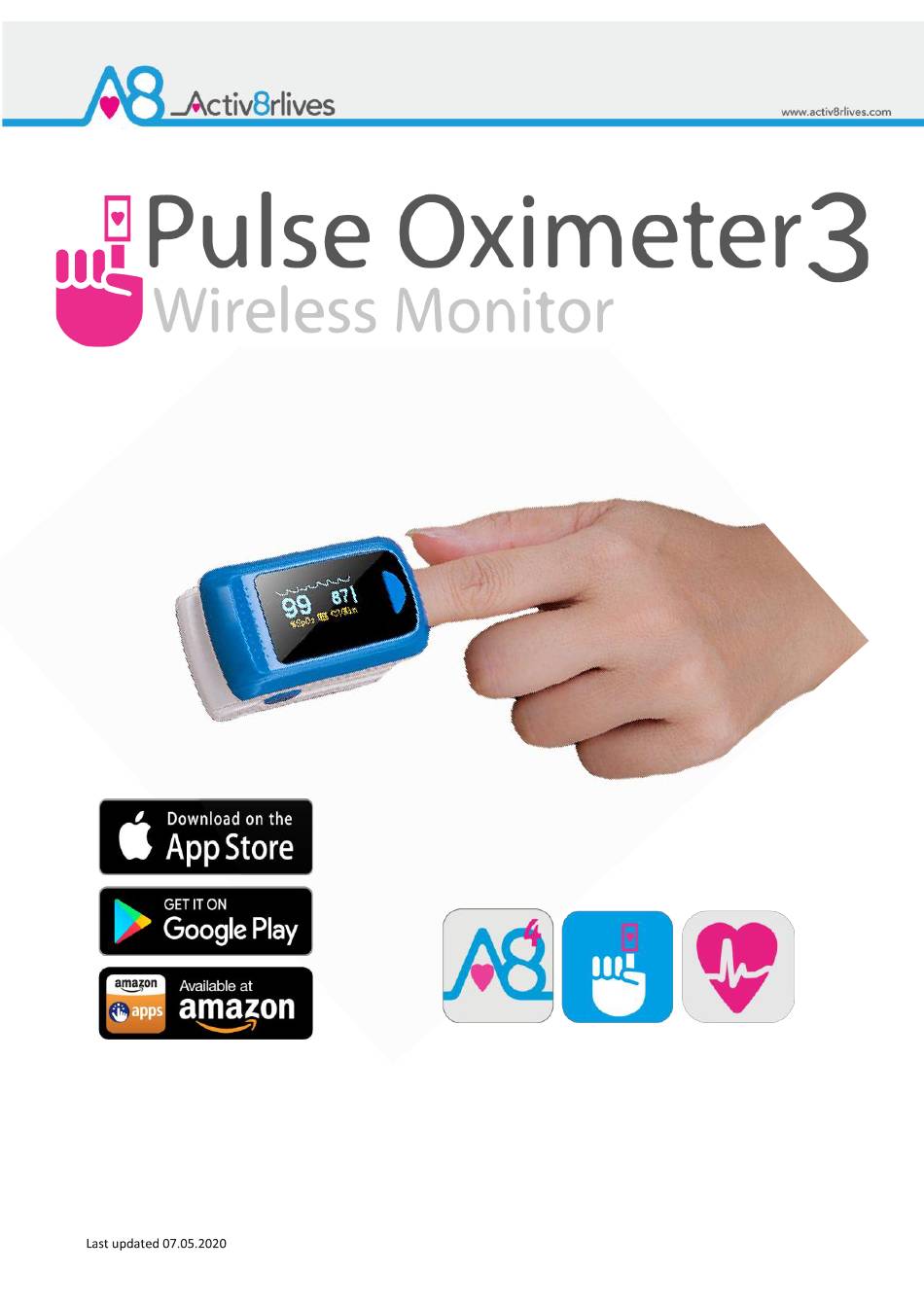

Pulmonary/Cardiovascular Health
www.activ8rlives.com
4
+
Pulse Oximeter3 connects wirelessly and uploads data to Activ8rlives
Health+Wellness or Asthma
me Apps.
th
Works with: Bluetooth Smart Ready device (typically Bluetooth 4.0 or later). iPhone 5 or later, iPad 4
Generation or later,
th
iPad Mini 2 or later, all iPad Air and iPad Pro models or iPod Touch 6
generation. Android devices running 5.0 or later.
Amazon Kindle Fire devices running Amazon Fire OS 5.0 or later. Apple Health App compatible.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pulse Oximeter 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Activ8rlives Pulse Oximeter 3

Summary of Contents for Activ8rlives Pulse Oximeter 3

  • Page 1 Pulmonary/Cardiovascular Health www.activ8rlives.com Pulse Oximeter3 connects wirelessly and uploads data to Activ8rlives Health+Wellness or Asthma me Apps. Works with: Bluetooth Smart Ready device (typically Bluetooth 4.0 or later). iPhone 5 or later, iPad 4 Generation or later, iPad Mini 2 or later, all iPad Air and iPad Pro models or iPod Touch 6 generation.

  • Page 2: Table Of Contents

    Getting started Your Pulse Oximeter3 Inserting Batteries How does the device work? 9-11 Correct placement of finger Let’s get started 12-13 Register for Activ8rlives account 14-15 Start-up Screens Pairing your device 17-18 Taking a Reading Viewing Data Data Charts Sending data to cloud OLED &...
  • Page 3 From tracking levels of physical activity, weight, food intake, cardiovascular and lung function, to a new generation of at-home testing for long-term lung disease, we provide the devices and web-based tools to help you be active, eat well and stay healthy. Learn more at www.activ8rlives.com...

  • Page 4: Intended Use

    Your Activ8rlives Pulse Oximeter3 Please read this manual carefully before you use your new device so that you do not injure yourself or others, or cause damage to your new device through improper use. Intended Use for Activ8rlives Pulse Oximeter3...

  • Page 5: Health & Safety Notices

    The technical specifications for this product and the contents of the User Manual are subject to change without notice by the manufacturer. If you experience any serious incident that occurs in relation to this device, please report this to Aseptika Limited (Activ8rlives) and the competent authority of the Member State in which you are based.

  • Page 7: Your Pulse Oximeter3

    Your Activ8rlives Pulse Oximeter3 Your Activ8rlives Pulse Oximeter3 has several parts, the OLED Display, the On/Off Button, and the Battery Compartment. It is also supplied with 2 AAA Batteries, Lanyard and User Manual. The OLED Display has many parts: Oxygen saturation (known as SpO...

  • Page 8: Inserting Batteries

    Inserting Batteries in Activ8rlives Pulse Oximeter3 Your Activ8rlives Pulse Oximeter3 uses two AAA 1.5V alkaline batteries, which are supplied. These are non- rechargeable batteries and no attempt should be made to recharge these. Remove the back cover and add the 2 x AAA 1.5 V alkaline batteries in the direction indicated.

  • Page 9: How Does The Device Work

    How Does the Activ8rlives Pulse Oximeter3 Work? Activ8rlives Pulse Oximeter3 is a non-invasive wireless method allowing the monitoring of the saturation of oxygen of the haemoglobin in your blood. A sensor is placed on a thin part of your body, such as your fingertip. Light of two wavelengths is passed through the finger to a photodetector.
  • Page 10 and Heart Rate Values at Rest These values have been created from population tables of the normal distribution of oxygen saturation and Heart Rate values within the general population. The colour coding by traffic light colours are a good indicator if the reading is Normal or Fair - Green zone, Poor or Concern - Amber zone...

  • Page 11: Correct Placement Of Finger

    Indication of Pulse Intensity Activ8rlives Pulse Oximeter3 also measures the Indication of Pulse Intensity (IPI). This is the strength of the pulsatile or pulse blood flow. Activ8rlives Pulse Oximeter3 optimal pulse oximetry monitoring and accuracy is dependent on the selection of a monitoring site (e.g.

  • Page 12: Let's Get Started

    Let’s get started with the Set-up and Connect to the Activ8rlives Health+Wellness App Activ8rlives Pulse Oximeter3 is programmed by and uploads information directly to and from your Activ8rlives account each time your Bluetooth connected Smartphone or Tablet is connected to it (not included).
  • Page 13 Installing the Activ8rlives Health+Wellness App on Your Smartphone or Tablet (Bluetooth 4.0 Enabled Devices are required to use the Pulse Oximeter3) Download the Activ8rlives Health+Wellness App from the App Store appropriate to your device. Search for Activ8rlives in the search bar of your App Store or scan the QR code below and it will take you to the appropriate App Store for your device.

  • Page 14: Register For Activ8Rlives Account

    Register for Activ8rlives Account Once you have installed the Activ8rlives Health+Wellness App open the App making sure your Smartphone or Tablet is connected to the internet with Bluetooth switched on. If you have already Registered, you can Login to your Activ8rlives account.
  • Page 15 Completed Registration On one of the screens of the Registration you can select the Activ8rlives devices that you have. Once you have completed your Registration you will automatically be directed to your Dashboard and a summary of your activity and weight targets are into this Simple Dashboard.

  • Page 16: Start-Up Screens

    Start-up Screen automatically From the Dashboard to the Menu, defaults to the Dashboard. select Upload Devices. Make sure that Bluetooth on your Make sure you have also set your Screen Smartphone or Tablet is switched on. lock to longer than 2 minutes.

  • Page 17: Pairing Your Device

    Preparing to Connect Activ8rlives Pulse Oximeter3 Your Activ8rlives Pulse Oximeter3 now needs to talk to your Smartphone or Tablet. Ensure that it is connected to the Internet with Bluetooth switched Open the Activ8rlives Health+Wellness App on your Smartphone or Tablet and select and touch the image of...
  • Page 18 Inserting your finger too far into the Activ8rlives Pulse Oximeter3 will give a slightly lower reading, see Page 11 for more details on correct placement of your finger.

  • Page 19: Taking A Reading

    IPI has risen to medium to high, press Start with your other hand. Remember not to touch the Start button on the App with the hand you have the Activ8rlives Pulse Oximeter3 attached to as this will give an inaccurate reading because it has been moved.

  • Page 20: Viewing Data

    Viewing Data on Smartphone or Tablet Detailed data can be viewed from the Activ8rlives Health+Wellness App. The example shown here gives: Oxygen Saturation 92.0% Heart Rate 65bpm Refer to the Blood Oxygen Chart on Page 10 to see where your reading is placed in the population table.

  • Page 21: Data Charts

    Data Charts Detailed data Charts can be viewed from the Activ8rlives Health+Wellness App by selecting from the Main Menu > Health Data > Charts. To change how these Charts display your data you can select and deselect via the Settings Cog.

  • Page 22: Sending Data To Cloud

    Sending Your Data to Cloud If your Smartphone or Tablet is connected to the internet by WiFi, your data will upload to your online Activ8rlives account automatically. If there is an arrow in the Cloud it indicates that you have data to upload to the Cloud Server.

  • Page 23: Oled & Brightness Settings

    OLED & Brightness Settings for Activ8rlives Pulse Oximeter3 To change the OLED Display orientation touch the On/Off Button once to rotate the screen 90° and keep rotating by touching the On/Off Button until you get to the desired orientation of the OLED Display.

  • Page 24: Viewing Data On Pc/Mac And Printing Data

    Viewing Your Data on Your PC or Mac Computer Login via the Activ8rlives website, go to www.activ8rlives.com using the same Username and Password that you used for your App Login. From your Activ8rlives account you can view your Health Data, select the Timeframe and scroll down to view.
  • Page 25 Printing your Data Printing your data can be achieved by going to the Web version www.activ8rlives.com and using the same Username and Password for your Activ8rlives account. Select Health Data from the menu and then select Print All to print-out all data sets selected or copy the chart.

  • Page 26: Manual Data Entry Custom Trackers

    Manual Data Entry You can also manually enter your data from other self-monitoring devices into the Activ8rlives⁴ Health+Wellness App. Open the Activ8rlives⁴ Health+Wellness App and select from the Menu the Manual Data Entry page. You can use the Data categories we currently...

  • Page 27: Medication

    Note: Do not rely solely on the Reminder capabilities of the Activ8rlives⁴ Health+Wellness App to take your prescribed medication as directed by your medical team.

  • Page 29: Apple Health Integration And Quick Record

    Apple Health App Integration Included in the Activ8rlives Health+Wellness App is the ability to allow users to record data from Activ8rlives’ growing range of consumer-focused health monitors and store these data in both Activ8rlives Cloud servers and Apple’s Health App via your iPhone.

  • Page 30: Trouble Shooting

    Trouble Shooting Help Menu? Help can be found on all pages of the Activ8rlives Health+Wellness App in the top right-hand corner. Touch to expand the page and scroll down through the Help information, including viewing the Help Videos. This symbol...
  • Page 31 Trouble Shooting Activ8rlives App Crashes Close other Apps open on your Smartphone or Tablet, as these may be using too much memory to allow the Activ8rlives Health+Wellness App to function fully. Stops Monitoring You may be moving slightly during the reading period of 15 seconds and your pulse traceline will be lost temporarily until you stop moving.

  • Page 32: Case Study

    Case Study The decline in a patients health and oxygen saturation is seen in the data below. Note the period of decreased oxygen saturation from the Green (fair) zone to Amber (poor) (see Page 10 for explanation) whilst the volunteer is experiencing an exacerbation or a mild chest infection.

  • Page 33: Specifications & Warranty

    Type Description Biolight Model M70C Dimensions of main unit 57mm (Length) x 33mm (Width) x 30mm (Height) Weight 54g (including batteries) Communication interface Bluetooth Smart (4.0) Sensor Specifications Wavelength Red light ~660nm Infrared ~905nm Total optical output power LEDs less than 15mW Sensor LED light emissions Fall within Class 1 level, according to IEC 60825-1:2001 Measuring range...
  • Page 34 Warranty Activ8rlives (Aseptika Limited) guarantees this product for one (1) year after the date of purchase. The guarantee does not cover the batteries, packaging and damages of any kind due to misuse, such as: dropping or physical misuse cau sed by the user or water damage outside of the stipulated usage. Claimed products will be replaced when returned marked as DAMAGED together with the original proof-of-purchase.

  • Page 35: Labelling & Symbols

    Indicates the FCC ID for this 2AC6R-M70C. Read instructions before use. https://www.activ8rlives.com/support/ This symbol is required by European directive 2002/96/EEC on waste electrical and electronic equipment (WEEE). At the end of its useful life this device must not be disposed of as normal domestic waste.
