Activ8rlives PulseOximeter2 Manual

Wireless monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Pulmonary/Cardiovascular Health
www.activ8rlives.com
4
+
Pulse Oximeter2 connects wirelessly and uploads data to Activ8rlives
Health+Wellness or Asthma
me Apps.
th
Works with: Bluetooth Smart Ready device (typically Bluetooth 4.0 or later). iPhone 5 or later, iPad 4
Generation or later,
th
iPad Mini 2 or later, all iPad Air and iPad Pro models or iPod Touch 6
generation. Android devices running 5.0 or later.
Amazon Kindle Fire devices running Amazon Fire OS 5.0 or later. Apple Health App compatible.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PulseOximeter2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Activ8rlives PulseOximeter2

Summary of Contents for Activ8rlives PulseOximeter2

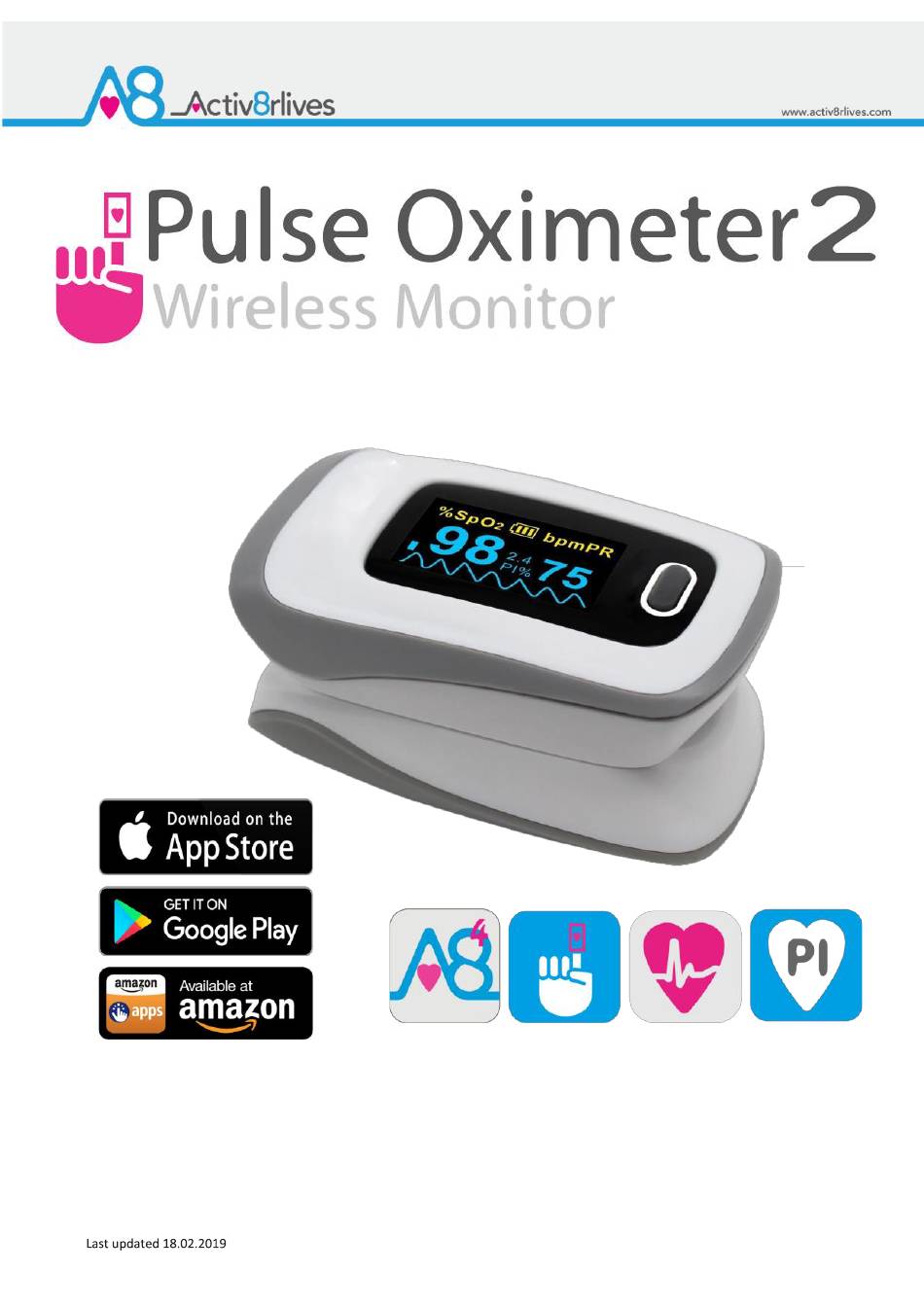

  • Page 1 Pulmonary/Cardiovascular Health www.activ8rlives.com Pulse Oximeter2 connects wirelessly and uploads data to Activ8rlives Health+Wellness or Asthma me Apps. Works with: Bluetooth Smart Ready device (typically Bluetooth 4.0 or later). iPhone 5 or later, iPad 4 Generation or later, iPad Mini 2 or later, all iPad Air and iPad Pro models or iPod Touch 6 generation.

  • Page 2: Table Of Contents

    Your Pulse Oximeter2 Inserting Batteries How does the device work? 9-11 Correct placement of finger Let’s get started 12-13 Register for Activ8rlives account 14-15 Start-up Screens 16-17 Pairing your device Waiting to Take a Reading Viewing Data Sending data to cloud...
  • Page 3 From tracking levels of physical activity, weight, food intake, cardiovascular and lung function, to a new generation of at-home testing for long-term lung disease, we provide the devices and web-based tools to help you be active, eat well and stay healthy. Learn more at www.activ8rlives.com...

  • Page 4: Intended Use

    Your Activ8rlives Pulse Oximeter2 Monitor Please read this manual carefully before you use your new device so that you do not injure yourself or others, or cause damage to your new device through improper use. Intended Use for Activ8rlives Pulse Oximeter2 Monitor...

  • Page 5: Health & Safety Notices

    If you experience any serious incident that occurs in relation to this device, please report this to Aseptika Limited (Activ8rlives) and the competent authority of the Member State in which you are based. Call us 7-days-a-week, between 09:00—18:00...

  • Page 7: Your Pulse Oximeter2

    Your Activ8rlives Pulse Oximeter2 Your Activ8rlives Pulse Oximeter2 has several parts, the OLED Display, the On/Off Button, and the Battery Com- partment. It is also supplied with a storage bag and User Manual. The OLED Display has many parts: Oxygen saturation (or known as SpO for short), Perfusion Index PI, Pulse Rate bpm, Battery symbol, Bluetooth 4.0 symbol, Pulse Rate Bar graph and the Pulse Rate Waveform Display or...

  • Page 8: Inserting Batteries

    Inserting Batteries in Activ8rlives Pulse Oximeter2 Your Activ8rlives Pulse Oximeter2 uses two AAA 1.5V alkaline batteries, which are supplied. These are non- rechargeable batteries and no attempt should be made to recharge these. Remove the back cover and add the 2 x AAA 1.5 V alkaline batteries in the direction indicated.

  • Page 9: How Does The Device Work

    How Does the Activ8rlives Pulse Oximeter2 Work? Activ8rlives Pulse Oximeter2 is a non-invasive wireless method allowing the monitoring of the saturation of oxygen of the haemoglobin in your blood. A sensor is placed on a thin part of your body, such as your fingertip. Light of two wavelengths is passed through the finger to a photodetector.
  • Page 10 and Heart Rate Values at Rest These values have been created from population tables of the normal distribution of oxygen saturation and Heart Rate values within the general population. The colour coding by traffic light colours are a good indicator if the reading is Normal or Fair - Green zone, Poor or Concern - Amber zone...

  • Page 11: Correct Placement Of Finger

    Perfusion Index Activ8rlives Pulse Oximeter2 also measures the Perfusion Index (PI). This is the ratio of the pulsatile blood flow to the non-pulsatile or static blood in peripheral tissue. Perfusion Index thus represents a non-invasive measure of peripheral perfusion that can be continuously and non-invasively obtained from the Activ8rlives Pulse Oximeter2.

  • Page 12: Let's Get Started

    Let’s get started with the Set-up and Connect to the Activ8rlives Health+Wellness App Activ8rlives Pulse Oximeter2 Monitor is programmed by and uploads information directly to and from your Activ8rlives account each time your Bluetooth connected Smartphone or Tablet is connected to it (not included).
  • Page 13 Installing the Activ8rlives Health+Wellness App on Your Smartphone or Tablet (Bluetooth 4.0 Enabled Devices are required to use the Pulse Oximeter2) Download the Activ8rlives Health+Wellness App from the App Store appropriate to your device. Search for Activ8rlives in the search bar of your App Store or scan the QR code below and it will take you to the appropriate App Store for your device.

  • Page 14: Register For Activ8Rlives Account

    Register for Activ8rlives Account Once you have installed the Activ8rlives Health+Wellness App open the App making sure your Smartphone or Tablet is connected to the internet with Bluetooth switched on. If you have already Registered, you can Login to your Activ8rlives account.
  • Page 15 Completed Registration On one of the screens of the Registration you can select the Activ8rlives devices that you have. Once you have completed your Registration you will automatically be directed to your Dashboard and a summary of your activity and weight targets are into this Simple Dashboard.

  • Page 16: Start-Up Screens

    Start-up Screen automatically defaults to the Dashboard. Make sure that Bluetooth on your Smartphone or Tablet is switched on.
  • Page 17 From the Dashboard to the Menu, select Upload Devices. Make sure you have also set your Screen lock to longer than 2 minutes.

  • Page 18: Pairing Your Device

    Preparing to Connect Activ8rlives Pulse Oximeter2 Your Activ8rlives Pulse Oximeter2 Monitor now needs to talk to your Smartphone or Tablet. Ensure that it is connected to the Internet with Bluetooth switched Open the Activ8rlives Health+Wellness App on your Smartphone or Tablet and select and touch the image of...

  • Page 19: Waiting To Take A Reading

    PI% has risen to over 3%, press Start with your other hand. Remember not to touch the Start button on the App with the hand you have the Activ8rlives Pulse Oximeter2 attached to as this will give an inaccurate reading because it has been moved.

  • Page 20: Viewing Data

    Viewing Data on Smartphone or Tablet Detailed data can be viewed from the Activ8rlives Health+Wellness App. The example shown here gives: Oxygen Saturation 92.0% Poor NEWS = 2 Heart Rate 65bpm Normal NEWS = 0 With an accumulated NEWS of 2. Refer to the Blood Oxygen...

  • Page 21: Sending Data To Cloud

    Sending Your Data to Cloud If your Smartphone or Tablet is connected to the internet by WiFi, your data will upload to your online Activ8rlives account automatically. If there is an arrow in the Cloud it indicates that you have data to upload to the Cloud Server.

  • Page 23: Manual Settings

    Manual Settings for Activ8rlives Pulse Oximeter2 Setting OLED Display Orientation To change the OLED Display orientation touch the On/Off Button once to rotate the screen 90° and keep rotating by touching the On/Off Button until you get to the desired orientation of the OLED Display.
  • Page 24 Manual Setting SpO Alarm Activ8rlives Pulse Oximeter2 can be manually programmed to set-off an Alarm if your reading is above or below a certain SpO level. To programme the device: • Press On/Off Button to bring the device to life and show the default screen.
  • Page 25 Manual Setting Pulse Rate Beep Activ8rlives Pulse Oximeter2 can be manually programmed to set-off a Beep to correspond with every Heart Beat. To programme the device: • Press On/Off Button to bring the device to life and show the default screen.

  • Page 26: Viewing Data On Pc/Mac And Printing Data

    Viewing Your Data on Your PC or Mac Computer Login via the Activ8rlives website, go to www.activ8rlives.com using the same Username and Password that you used for your App Login. From your Activ8rlives account you can view your Health Data, select the Timeframe and scroll down to view.

  • Page 27: And Medication

    Manual Data Entry You can also manually enter your data from other self- monitoring devices into your Activ8rlives account. Login to your Activ8rlives account in the usual manner and select from the Menu the Manual Data Entry page. You can use the Data categories we currently offer:...

  • Page 29: Apple Health Integration And Quick Record

    Apple Health App Integration Included in the Activ8rlives Health+Wellness App is the ability to allow users to record data from Activ8rlives’ growing range of consumer-focused health monitors and store these data in both Activ8rlives Cloud servers and Apple’s Health App via your iPhone.

  • Page 30: Trouble Shooting

    Trouble Shooting Help Menu? Help can be found on all pages of the Activ8rlives Health+Wellness App in the top right-hand corner. Touch to expand the page and scroll down through the Help information, including viewing the Help Videos. This symbol...
  • Page 31 Trouble Shooting Activ8rlives App Crashes Close other Apps open on your Smartphone or Tablet, as these may be using too much memory to allow the Activ8rlives Health+Wellness App to function fully. Stops Monitoring This may be caused by: You may be moving slightly during the reading period of 15 seconds and your pulse traceline will be lost temporarily until you stop moving.

  • Page 33: Case Study

    Case Study The decline in a patients health and oxygen saturation is seen in the data below. Note the period of decreased oxygen saturation from the Green (fair) zone to Amber (poor) (see Page 10 for explanation) whilst the volunteer is experiencing an exacerbation or a mild chest infection.

  • Page 34: Specifications & Warranty

    Atmospheric pressure 70—106 Kpa Warranty Activ8rlives (Aseptika Limited) guarantees this product for one (1) year after the date of purchase. The guarantee does not cover the batteries, packaging and damages of any kind due to misuse, such as: dropping or physical misuse caused by the user or water damage outside of the stipulated usage.

  • Page 35: Labelling & Symbols

    Labelling and Symbols This product is manufactured by Shenzhen Jumper Medical Equipment Co., Ltd, Building D, No 71, Xintian Road, Fuyong Street, Baoan, Shenzhen, Guangdong Province, 518102, China . Date of Manufacture 2017-10. Model Digital Pulse Oximeter Monitor JPD-500F. Battery 2 x AAA Alkaline Batteries.
