Pulmonary/Cardiovascular Health
www.activ8rlives.com
Pulse Oximeter2 connects via Bluetooth 4.0 (Smart)
& upload data to Activ8rlives.
FREE App that works with: iOS 10 and above (iPhone 5s or later & iPad 4 or later)
and select Android devices running Android 5.0 and above.
Apple Health App compatible.
Advertisement
Table of Contents
Related Manuals for Activ8rlives Pulse Oximeter2 Bluetooth
Summary of Contents for Activ8rlives Pulse Oximeter2 Bluetooth
- Page 1 Pulse Oximeter2 connects via Bluetooth 4.0 (Smart) & upload data to Activ8rlives. FREE App that works with: iOS 10 and above (iPhone 5s or later & iPad 4 or later) and select Android devices running Android 5.0 and above.
-
Page 2: Table Of Contents
Charging your device How does the device work? 9-10 Correct placement of finger Installing Activ8rlves App Let’s get started 12-13 Register for Activ8rlives account 14-15 Start-up Screens 16-17 Connecting by Bluetooth Taking a Reading Viewing Data Sending data to cloud... - Page 3 From tracking levels of physical activity, weight, food intake, cardiovascular and lung function, to a new generation of at-home testing for long-term lung disease, we provide the devices and web-based tools to help you be active, eat well and stay healthy. Learn more at www.activ8rlives.com...
-
Page 4: Getting Started
Need Help Setting-Up? Call us 7 days a week, between 9:00—18:00 UK +44 (0)1480 352 821... -

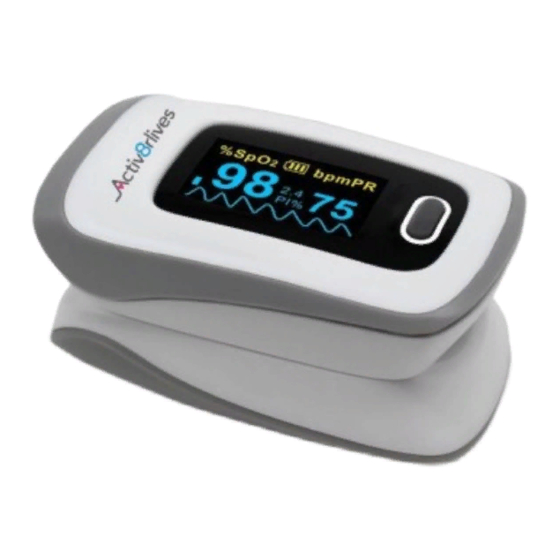

Page 5: Your Pulse Oximeter2
Your Activ8rlives Pulse Oximeter2 Please read this manual carefully before you use your new device so that you do not injure yourself or others, or cause damage to your new device through improper use. Activ8rlives Pulse Oximeter2 is a simple electronic device which allows you to monitor aspects of your cardiovascular and pulmonary function—especially if you have Asthma,... - Page 6 Your Activ8rlives Pulse Oximeter2 Your Activ8rlives Pulse Oximeter2 has several parts, the OLED Display, the On/Off Button, and the Battery Compartment. It is also supplied with a storage bag, Quick Guide and Product Manual. The OLED Display has many parts: Oxygen saturation or SpO , Perfusion Index PI, Pulse Rate bpm, Battery symbol, Bluetooth 4.0 symbol, Pulse Rate Bar graph and the Pulse Rate Waveform...
-
Page 7: Health And Safety Notices
Health and Safety Notices WARNINGS: The Activ8rlives Pulse Oximeter2 is NOT waterproof. Do not submerge it in water. PLEASE seek medical advice before undertaking strenuous exercise or weight loss programmes. Seek advice from your Doctor about any long-term condition. This device should not be used to make a primary diagnosis. -
Page 8: Charging Your Device
Charging Your Activ8rlives Pulse Oximeter2 Your Activ8rlives Pulse Oximeter2 uses two AAA 1.5V alkaline batteries, which are supplied. These are non-rechargeable batteries and no attempt should be made to recharge these. Remove the back cover and add the 2 x AAA 1.5 V alkaline batteries in the direction... -
Page 9: How Does The Device Work
How Does the Activ8rlives Pulse Oximeter2 Work? Activ8rlives Pulse Oximeter2 is a non-invasive wireless method allowing the monitoring of the saturation of haemoglobin in your blood. A sensor is placed on a thin part of your body, usually a fingertip or earlobe (separate adapter required). - Page 10 and Heart Rate Values at Rest These values have been created from population tables of the normal distribution of oxygen saturation and Heart Rate values within the general population. The colour coding by traffic light colours are a good indicator if the reading is Normal or Fair (Green zone), Poor or Concern (Amber zone)
-
Page 11: Correct Placement Of Finger
Perfusion Index thus represents a non-invasive measure of peripheral perfu- sion that can be continuously and non-invasively obtained from the Activ8rlives Pulse Oximeter2. To make informed patient management decisions, clinicians often need to be aware of chang- es in peripheral perfusion and circulatory status. -
Page 12: Installing Activ8Rlves App
OK, let’s get started with the Setup This guide will instruct you how to: Activ8rlives Pulse Oximeter2 is programmed by and uploads information directly to and from your Activ8rlives account each time your Bluetooth Smart (also known as 4.0 or Bluetooth Low Energy BLE) Smartphone or Tablet is connected to it (not included). - Page 13 Installing the Activ8rlives App on Your Smartphone or Tablet requires Bluetooth 4.0 Enabled Devices Download the Activ8rlives Wellness and Diary App from the App Store appropriate to your device. Search for Activ8rlives in the search bar of your App Store or scan the QR code below and it will take you to the appropriate App Store for your device.
-
Page 14: Register For Activ8Rlives Account
Register for Activ8rlives Account Once you have installed the Activ8rlives Wellness and Diary App, open the App making sure your Smartphone or Tablet is connected to the internet with Bluetooth switched on. If you have already Registered, you can Login to... - Page 15 Password details associated with your account and keep these safe. You use the same Username and Password to access your account via the web: www.activ8rlives.com. How to Videos on App A Quick Tour showing what the Activ8rlives Wellness and Diary App can do is available from the App.
-
Page 16: Start-Up Screens
Start-up Screen moves to Main Menu automatically. Make sure that Bluetooth on your Smartphone or Tablet is switched on. - Page 17 From the Main Menu, select Upload Devices. Make sure you have also set your Screen lock to longer than 2 minutes.
-
Page 18: Connecting By Bluetooth
Connecting to the Activ8rlives by Bluetooth Ensure that Bluetooth is switched on, on your Smartphone or Tablet. Open the Activ8rlives Wellness and Diary App on your Smartphone or Tablet. Select Upload Devices from the Menu and touch the image of the... -
Page 19: Taking A Reading
PI will improve enough for you to take a reading but remember not to touch the Start button on the App with the hand you have the Activ8rlives Pulse Oximeter2 attached to. Ready to Take a Measurement... -
Page 20: Viewing Data
Today’s Reading After taking a reading your data will display on the Activ8rlives Wellness and Diary App . The example shown here gives: Oxygen Saturation 92.0% Amber NEWS = 2 Heart Rate 65bpm Normal NEWS = 0 Refer to the Blood Oxygen Chart on... -
Page 21: Sending Data To Cloud
Sending Your Data to Cloud If your Smartphone or Tablet is connected to the internet by WiFi, your data will upload to your online Activ8rlives account automatically. Touch the Cloud and it will automatically detect and synchronise if you are on WiFi. -
Page 23: Manual Settings
Manual Settings for Activ8rlives Pulse Oximeter2 Setting OLED Display Orientation To change the OLED Display orientation touch the On/Off Button once to rotate the screen 90° and keep rotating by touching the On/Off Button until you get to the desired orientation of the... - Page 24 Setting SpO Alarm Activ8rlives Pulse Oximeter2 can be manually programmed to set-off an Alarm if your reading is above or below a certain SpO level. To programme the device: Press On/Off Button to bring the device to life and show ...
- Page 25 Setting Pulse Rate Beep Manually Activ8rlives Pulse Oximeter2 can be manually pro- grammed to set-off a Beep to correspond with every Heart Beat. To programme the device: Press On/Off Button to bring the device to life and show the default screen.
-
Page 27: Viewing Data On Pc Or Mac
Viewing Your Data on Your PC or Mac Computer To Login via the Activ8rlives website, go to www.activ8rlives.com and Login from the top menu of the website using the same Username and Password that you used for your App Login. The website has a lot more features than can be incorporated in to the Activ8rlives Wellness and Diary App. -
Page 28: Apple Health Integration
Apple Health (HealthKit) Integration Included in the Activ8rlives Wellness and Diary App is the ability to allow users to record data from Activ8rlives’ growing range of consumer- focused health monitors and store these data in both the Activ8rlives web-servers and Apple’s... -
Page 29: Trouble Shooting
Trouble Shooting Help Menu? Help can be found on all pages of the Activ8rlives Wellness and Diary App in the top right-hand corner. Touch to expand the page and scroll down through the Help information. Will Not Connect via Bluetooth? Requires Bluetooth 4.0 Smartphone/Tablet (iOS 10... - Page 30 Trouble Shooting Activ8rlives App Crashes Close other Apps open on your smartphone or tablet, as these may be using too much memory to allow the Activ8rlives Wellness and Diary App to function. Also try rebooting your phone to clear its memory too.
-
Page 31: Manual Data Entry And Custom Trackers
Manual Data Entry You can also manually enter your data from other self-monitoring devices into your Activ8rlives account. Login to your Activ8rlives account in the usual manner and select from the Menu the Manual Data Entry page. You can use the Data categories we current-... -
Page 32: Case Study
Case Study The decline in a patients health and oxygen saturation is seen in the data below. Note the period of decreased oxygen saturation from the Green (healthy) zone to Amber (caution) whilst the volunteer is experiencing an exacerbation and a mild chest infection. It soon recovers to a health reading in the Green zone. - Page 33 Find Activ8rlives products at...
-
Page 34: Specifications
Specifications Description Oxygen Saturation Range 35—100% (resolution 1%) Measurement Precision +2 (70-100%) Alert Range 50-100% Alert Error +1% of preset value Accuracy 70—79% accuracy is + 2%, 80—100 accuracy is + 3 Low Perfusion Index Range 0-20% Weak PI Min 0.2% Pulse Rate Display Range and Alert Range 25—250 bpm (resolution 1 bpm) -
Page 35: Warranty
Warranty Activ8rlives (Aseptika Limited) guarantees this product for one (1) year after the date of purchase. The guarantee does not cover the battery, packaging and damages of any kind due to misuse, such as: dropping or physical misuse caused by the user or water damage outside of the stipulated usage. -
Page 36: Website
Quick Guide to the Activ8rlives Website Home Page Activ8rlives Wellness and Diary App is just the start of the self-monitoring experience. There is so much more to explore online at www.activ8rlives.com Our website has a secure Login—you use the same Username and Password that you use on the App. -
Page 37: Groups And Adventures
Join a Group, Start Your Own and Keep in Touch! We work best in groups. This motivates and provides support for this function. This can be used for: family, friends or Corporate teams, for charity events, personal health training or fundraising activities. -
Page 38: Rewards And Medals
Rewards and Medals Being active everyday is vital for long-term health and wellbeing. To encourage consistent activity, Activ8rlives has two rewards systems. Medals are earned as you gain days of activity. They do not have to be consecutive days. Bronze Medal = 7 days of 10,000 steps. -
Page 39: Food Diary
Track your food and liquid intake using our photo-based free Activ8rlives Wellness and Diary App. Take pictures of what you eat and drink with your Smartphone or Tablet. Brings mindfulness to your eating habits and portion size. Records photos of what you eat and drink in your Activ8rlives Wellness and Diary App. - Page 40 Award winning...
