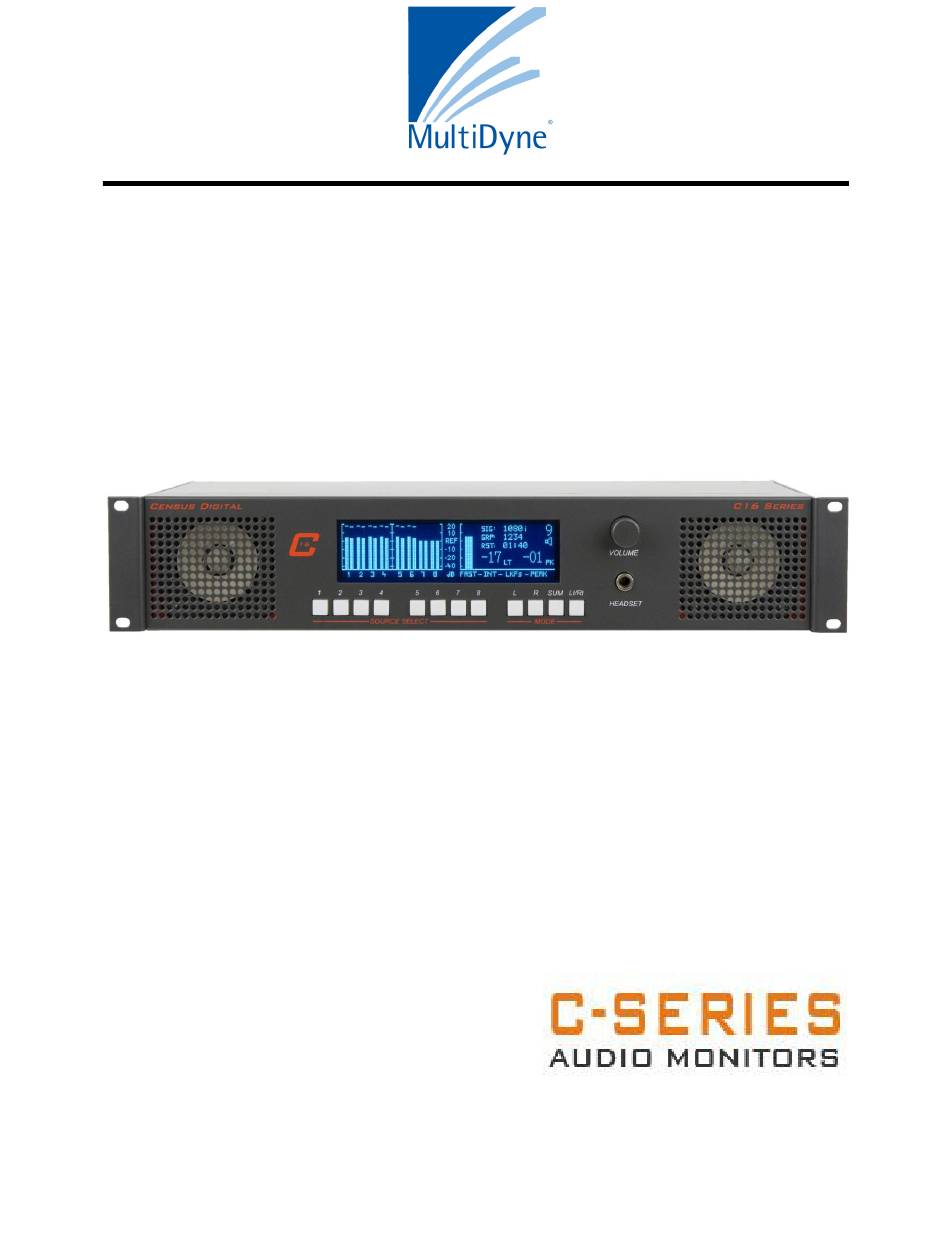

- Page 1 C16A 3G/HD/SD-SDI Embedded Audio Monitor User Manual...
- Page 2 Thank You Thank you for choosing the C16A for your SDI embedded audio monitoring needs. The C16A is just one of many products from the C-Series of audio monitors offered by Census Digital. Please visit our website www.censusdigital.com for more information. Overview The C16A is a compact 2 RU 3G/HD/SD-SDI embedded audio monitoring system designed to extract up to 16 Channels of embedded audio from an SDI signal for...
- Page 3 stereo monitor output. This monitor output follows the signals that are being monitored on the internal speakers. Features & Controls C16A Front Panel Features and Controls Left Speaker Right Speaker Rotary Shaft Encoder turn for volume, push to mute Longframe ¼” Headset Jack. When headset is inserted internal speakers are muted Vacuum fluorescent display used to display audio meters and signal data information...
- Page 4 Channel Source & Mode Selection Selecting the audio channels you want to monitor is provided by eight pushbuttons located directly below the audio meters allowing the user to intuitively select whichever stereo pair they would like to route to the speakers. Pushbuttons numbered 1 through 8 allow the user to select the embedded audio pairs.
- Page 5 Display C16A Front Panel Display 16 Channel Bargraph VU/PPM Meter REF = -20dBFS ITU 1770 LKFS Bargraph FAST 10 second integration time ITU 1770 LKFS numerical readout long term integration time LT ITU 1771 LKFS numerical readout true peak PK Signal data display SIG: Displays the type of signal detected at the input (eg.
- Page 6 Technical Specifications Technical Specifications C16A 75 Ohm SDI Input and Output Input & Output Standards Reclocked SMPTE259M,292M,424M Connectors 1: 75 Ohm BNC for input 1 :75 Ohm BNC for output Physical Specifications Input Equalization Automatic to 80m @ 3Gb/s Dimensions Width = 19”...
- Page 7 All products shipped to you from Census Digital will be shipped collect. The MultiDyne Technical Support Department will continue to provide advice on any product manufactured by Census Digital Inc., beyond the warranty period without charge, for the life of...
- Page 8 Contact Us MultiDyne 10 Newton Place Hauppauge, NY 11788 Phone: 1-800-488-8378 1-516-671-7278 Website: www.multidyne.com...
