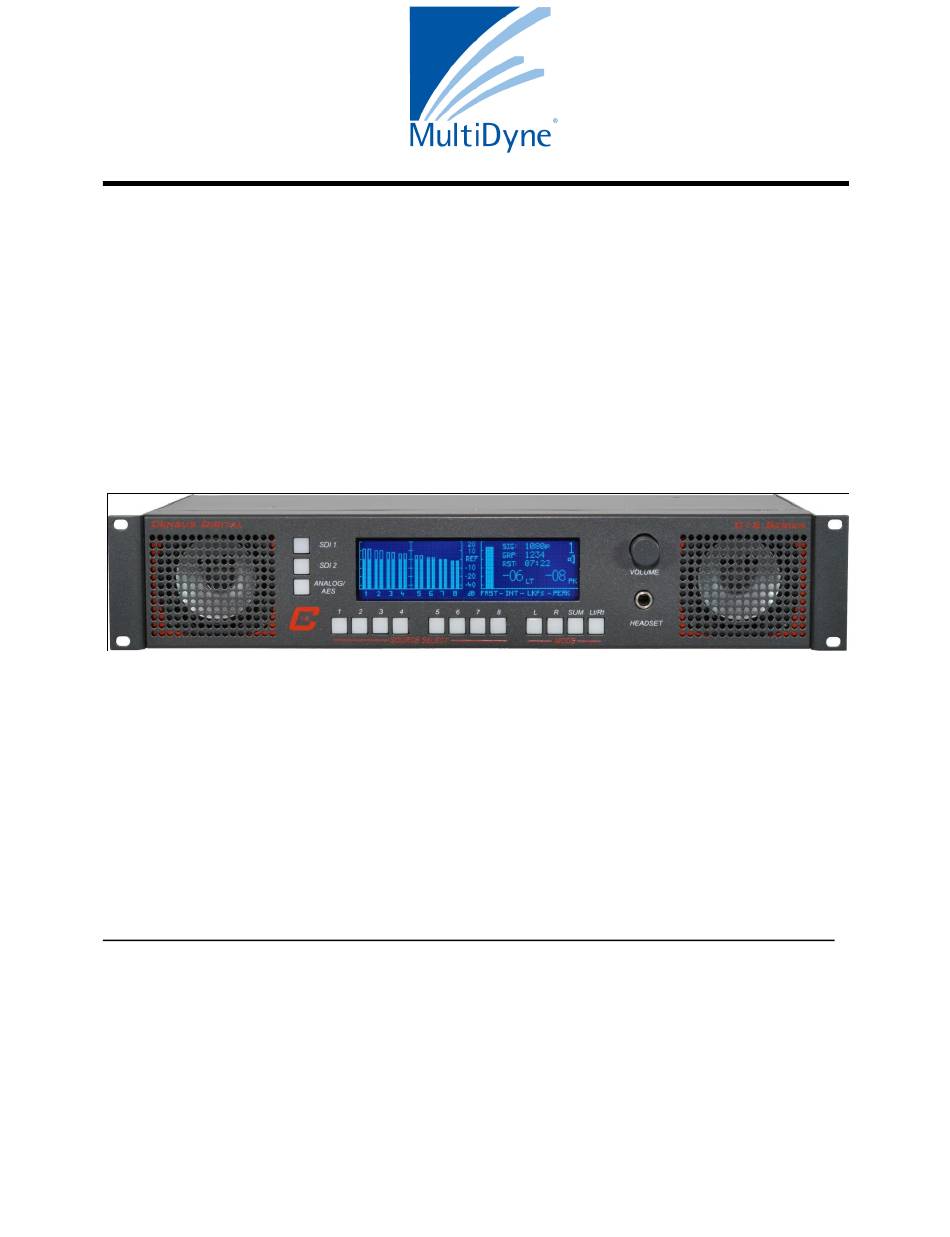

- Page 1 C16C-2 Dual 3G/HD/SD-SDI + 2 Channel Analog + 1 AES/EBU Input Audio Monitoring System User Manual...
- Page 2 Overview The C16C-2 is a compact 2 RU Dual 3G/HD/SD-SDI, +Analog +Digital Audio Monitoring System designed to provide visual and aural monitoring of two 3G/HD/SD-SDI additionally the unit can also accept 1 stereo analog audio input and 1 75 Ohm...
- Page 3 Features Input Source Selection SDI 1 Routes SDI 1 input signal to the display for further source selection to the speakers. Provides up to 16 channels of embedded audio. SDI 2 Routes SDI 2 input signal to the display for further source selection to the speakers.
- Page 4 2 pairs beside it and creates the downmix from these 6 channels. Volume Control The C16C-2 comes equipped with a high quality mil-spec push to mute optical shaft encoder for the volume control. Finished with a BIG custom machined aluminum knob for ease of operator use and longevity.
- Page 5 Headset The C16C-2 uses a high quality metal ¼ inch long frame jack like the type used in an audio patch bay to ensure it can handle the day to day use for many years to come. When a headset is inserted the internal speakers are automatically muted and the volume control now controls the headset level.
- Page 6 DISPLAY The C16C-2 uses a large high quality VFD vacuum fluorescent display to provide audio metering and signal status information. You can display up to 16 channels of 3G/HD/SD-SDI embedded audio at one time for at a glance audio signal presence.
- Page 7 Impedance High impedance >20K Ohm Frequency Response +/- 0.1dB 20Hz to 20kHz <0.005% 20Hz to 20kHz Max Input Level +24dBu +4 Typical Analog Audio Output 2 Channels Balanced 3-Pin Terminal Blocks Output Level Fix Mode +4dBu Variable Mode adjustable with volume control Width 19”...
-
Page 8: Warranty And Repair Policy
In Case of Problems Should any problem arise with your C16, please contact the MultiDyne Technical Support Department. Contact information is supplied at the end of this publication. A Return Material Authorization number (RMA) will be issued to you, as well as specific shipping instructions, should you wish our factory to repair your C16. - Page 9 Contact Us MultiDyne 10 Newton Place Hauppauge, NY 11788 Phone: 1-800-488-8378 1-516-671-7278 Website: www.multidyne.com...
