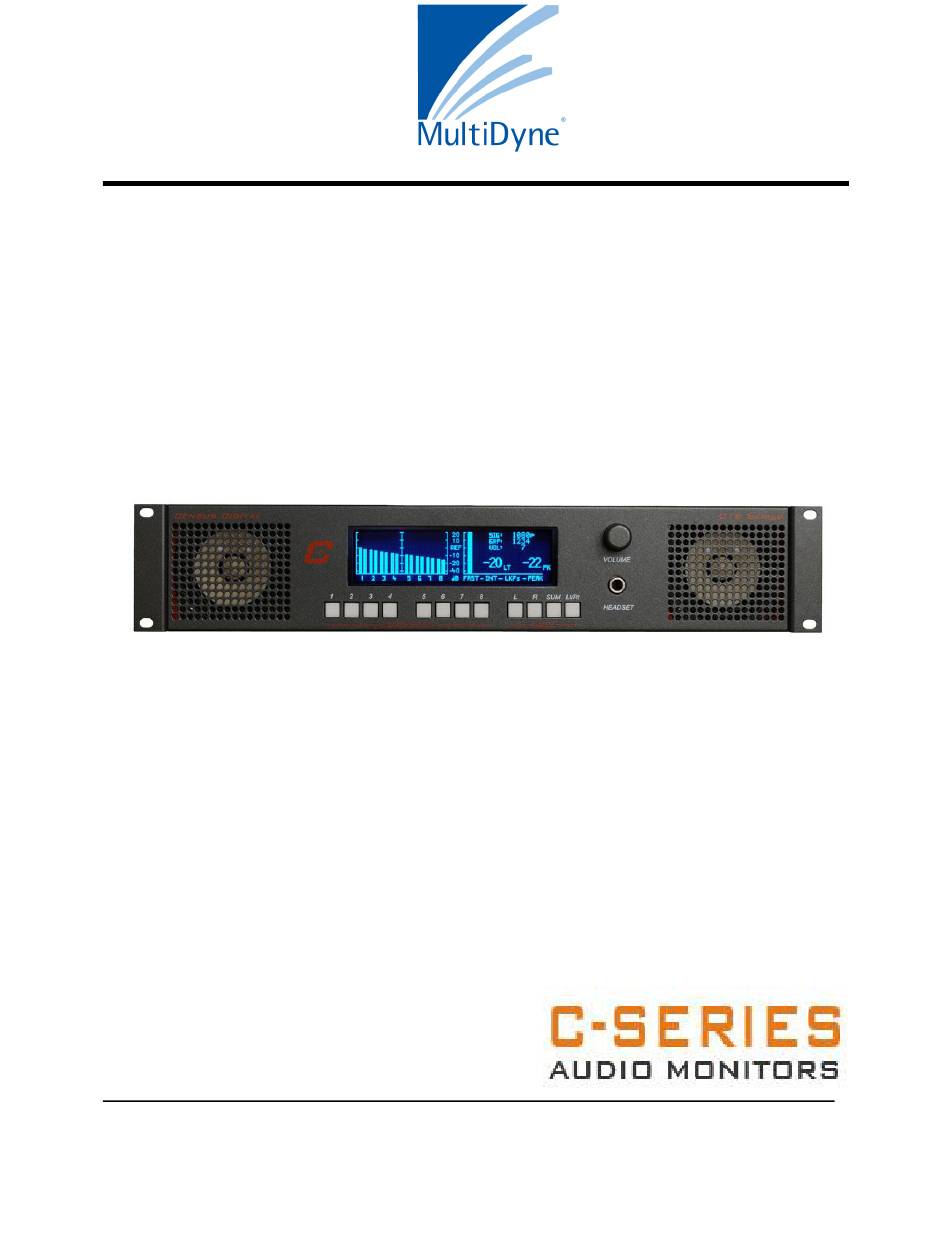

- Page 1 C16B 3G/HD/SD-SDI + 8 Channel Analog + 4 AES/EBU Input Audio Monitor User Manual...
- Page 2 Overview The C16B is a compact 2 RU 3G/HD/SD-SDI, Analog & Digital Audio Monitoring system designed to provide visual and aural monitoring of one 3G/HD/SD-SDI additionally the unit can also accept 4 stereo analog audio signals & 4 75 Ohm AES/EBU digital audio signals..
-
Page 3: Features And Controls
Features & Controls C16A Front Panel Features and Controls Left Speaker Right Speaker Rotary Shaft Encoder turn for volume, push to mute Longframe ¼” Headset Jack. When headset is inserted internal speakers are muted Vacuum fluorescent display used to display audio meters and signal data information Intuitive source select switches used to route signals to the speakers Intuitive mode select switches allows for on the fly mode selection... - Page 4 Display C16A Front Panel Display 16 Channel Bargraph VU/PPM Meter REF = -20dBFS ITU 1770 LKFS Bargraph FAST 10 second integration time ITU 1770 LKFS numerical readout long term integration time LT ITU 1771 LKFS numerical readout true peak PK Signal data display SIG: Displays the type of signal detected at the input (eg.
- Page 5 Speaker volume level and flashing X underneath the number indicates the speakers have been muted using the push to mute rotary shaft encoder. Input, Channel Select & Mode Selection Input source selection is made by pressing the “DIS” display button. This allows the user to select between the 3G/HD/SD-SDI signal providing up to 16 channels of audio and a split screen with the 4 AES/EBU inputs appearing on pairs 1-4 and the 4 stereo analog inputs on pairs 5-8.
- Page 6 8 Channel Analog Audio Input Pinout 25 Pin D-SUB Audio Channel Tip + Ring - Sleeve GND...
-
Page 7: Technical Specifications
Technical Specifications Technical Specifications C16A 75 Ohm SDI Input and Output Input & Output Standards Reclocked SMPTE259M,292M,424M Connectors 1: 75 Ohm BNC for input 1 :75 Ohm BNC for output Physical Specifications Input Equalization Automatic to 80m @ 3Gb/s Dimensions Width = 19”... -
Page 8: Warranty And Repair Policy
Support for more information. In Case of Problems Should any problem arise with your C16B, please contact the MultiDyne Technical Support Department. Contact information is supplied at the end of this publication. A Return Material Authorization number (RMA) will be issued to you, as well as specific shipping instructions, should you wish our factory to repair your C16B. - Page 9 Contact Us MultiDyne 10 Newton Place Hauppauge, NY 11788 Phone: 1-800-488-8378 1-516-671-7278 Website: www.multidyne.com...
