Summary of Contents for Yokota YZ-N800A-Z

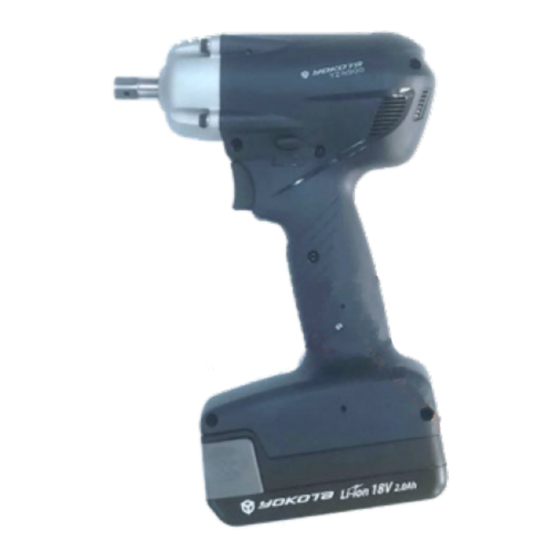

- Page 1 YZ-N800A-Z MANUAL EN www.rami-yokota.com...
- Page 2 Brand : Yokota Safety standard : EN ISO 11148-6 Square Drive / Hexagon : 1/4" HEX Bolt capacity (mm) : 6-8 : 2000 - 4800 Torque (Nm) : 7 - 30 Weight w/o battery (kg) : 1,05 mm A : 157...
- Page 3 Tools shall be inspected periodically to verify that the ratings and markings required by the applicable part of the ISO 11148 series are legibly marked on the tool. If not the user/employer shall obtain replacement labels from the dealer or manufacturer. ...
- Page 4 Change of output torque due to motor speed setting and relief valve adjustment 1. Speed setting 1 2. Speed setting 2 3. Speed setting 3 4. Speed setting 4 Setting the motor speed, rpm On the left handle side is the rpm setting screw 1 = 2000 rpm, LED blinks 1 time 2 = 3000 rpm, LED blinks 2 times 3 = 4000 rpm, LED blinks 3 times...
- Page 5 The adjust screw is blocked in both directions, never use force or otherwise the screw or internal parts may get damaged. Never use the tool at 100% at its maximum or minimum. Maintenance: Check the tool regularly for loose bolts/screws or parts. In case of power loss: Have the tool repaired.
- Page 6 • 3 months on spare parts of tools, which are repaired by us. Warranty covers material or construction mistakes of the manufacturer, which are clearly definable. Replacement of parts or repair by an official Yokota/Red Rooster service workshop is free of charge, when the tool is covered by warranty.
- Page 7 www.rami-yokota.com...
