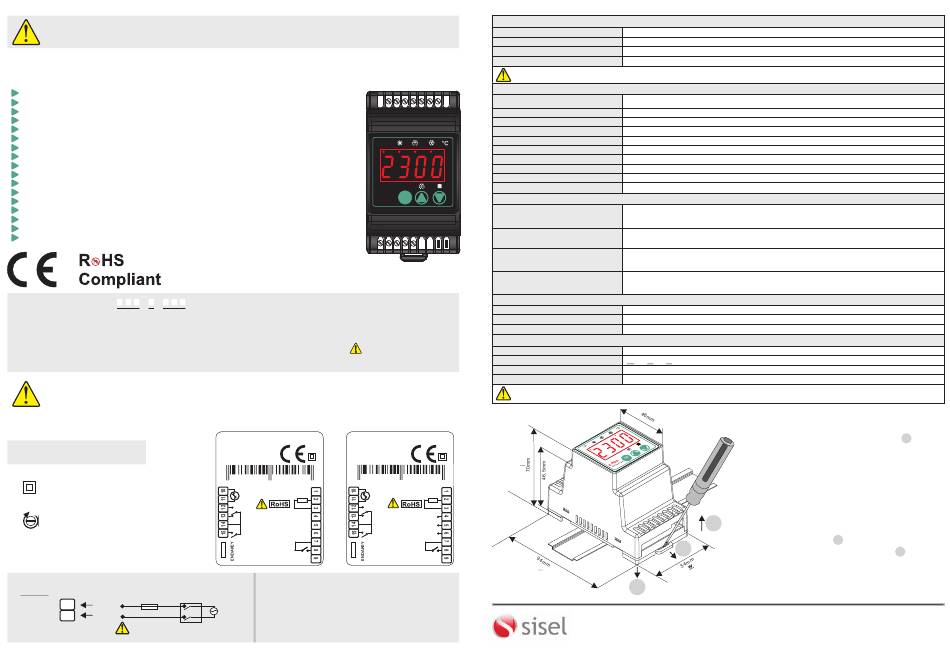

sisel Enda EDT5412A Quick Start Manual

Please read this document carefully before using this product. The guarantee will be invalidated if the device is damaged by
not following instructions detailed in the manual. The company shall not be responsible for any damage or losses however
caused, which may be experienced as a result of the installation or use of this product.
ENDA EDT5412A DIGITAL THERMOSTAT
Thank you for choosing ENDA EDT5412A Digital Thermostat.
54x94mm.
On-Off control.
Relay output selection for Defrosting or Lighting control.
Single NTC probe input.
Offset value can be entered for NTC input.
Compressor protection parameters.
In case of probe failure, compressor operation can be set to ON, OFF or periodic.
Upper and Lower setpoint values can be set.
Defrost duration and intervals can be set.
6 different warning tone selections.
Upper and Lower alarm limits can be set to depend on setpoint value.
Temperature unit monitoring selection (°C or °F).
External alarm feature via digital input.
Defrosting / Lighting startup feature via digital input or manually selection.
Transfer device parameter settings with ENDAKEY. -no power-up required.
RS485 ModBus protocol communication feature (optional).
CE Marked according to European Norms.
Order Code : EDT5412A - - -
1 2 3
1 - Supply Voltage
2 - Output Selection
230........230V AC
R......... 8A Relay Output
110........110V AC
P......... 20A Relay Output
24........24V AC/DC
CONNECTION DIAGRAM
12........12V AC/DC
SM........9-30VDC / 7-24V AC
ENDA EDT5412A Series are rail mounted devices. Make sure that the device is used only for the intended purpose.
The electrical connections must be carried out by qualified staff and must be according to the relevant locally
applicable regulations. During installation, all of the cables that are connected to the device must be free of electrical
power. The device must be protected against inadmissible humidity, vibrations, severe soiling and make sure that the
operating temperature is not exceeded. The cables (signal, data, sensor, etc.) should not be close to the power cables
or components.
Please see page 3 for Modbus
Conncetion diagram.
Equipment is protected throughout by
DOUBLE INSULATION
Holding screw
0.4-0.5Nm.
NOTE:
Fuse
SUPPLY: F 100 mA
Switch
250V AC
10
Line
184-253V AC
50/60Hz 4VA
11
Neutral
Fuse should
Cable size: 1,5mm²
be connected
1 2 3
°F
ENDA
EDT5412A
10 11 12
3 - Modbus Selection
RS........ RS-485 Modbus (Optional)
Blank.... N/A
(Specify at Order)
ENDA ENDA ENDA ENDA
INDUSTRIAL ELECTRONICS INDUSTRIAL ELECTRONICS INDUSTRIAL ELECTRONICS INDUSTRIAL ELECTRONICS
EDT5412A-230-R
EDT5411A-230-R EDT5412A-230-R-RS
EDT5411A-230-R-RS
DIGITAL THERMOSTAT
DIGITAL THERMOSTAT DIGITAL THERMOSTAT DIGITAL THERMOSTAT
8 680407 709892 8 680407 719242
8 680407 719235 8 680407 709885
230V AC +10% -20% 230V AC +10% -20% 230V AC +10% -20% 230V AC +10% -20%
50/60Hz 5VA 50/60Hz 5VA NTC NTC 50/60Hz 5VA 50/60Hz 5VA
GND GND DEFROST
DEFROST
250 VAC 8A
250 VAC 8A
COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR
250V AC 20A 250V AC 20A
250V AC 20A 250V AC 20A
RESISTIVE LOAD RESISTIVE LOAD RESISTIVE LOAD RESISTIVE LOAD
GND GND
Made in Turkey Made in Turkey
Made in Turkey Made in Turkey
DIG INP DIG INP
SN: XXXXXXXXX SN: XXXXXXXXX
SN: XXXXXXXXX SN: XXXXXXXXX
Note:
1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
230V AC
2) In accordance with the safety regulations, the power
Supply
supply switch shall bring the identification of the
relevant instrument and it should be easily
accessible by the operator.
ENVIRONMENTAL CONDITIONS
Ambient / Storage Temperature
Relative Humidity
Protection Class
Height
KEEP AWAY device from exposed to corrosive, volatile and flammable gases or liquids and
DO NOT USE the device in similar hazardous locations.
ELECTRICAL CHARACTERISTICS
7 9
4 5 6 8
Supply Voltage
Power Consumption
Connection
Scale
Sensitivity
Accuracy
Time Accuracy
Display
EMC
Safety requirements
OUTPUTS
SET
Compressor Relay Output
Defrosting and Lighting
Relay Output
13 14 15 16 17 18
Life Expectancy for Compressor
Relay Output
Life Expectancy for Defrosting
and Lighting Relay Output
CONTROL
Control Type
Control Algorithm
Hysteresis
HOUSING
Housing Type
Dimensions
Weight
Enclosure Material
Avoid any liquid contact while the device is switched on.
DO NOT clean the device with solvent (thinner, gasoline, acid etc.) and / or abrasive cleaning agents.
DIMENSIONS
D
NTC NTC
COM COM
B B
A A
DIG INP DIG INP
H
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah.
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx.
www.enda.com
1/4
0 ... +50°C/-25 ... 70°C (without icing)
Relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C.
According to EN60529; Front panel : IP65
Max. 2000m
230V AC / 110V AC +%10 -%20, 50/60Hz ;
12V AC/DC ± %10 , 24V AC/DC ±%10 or 9-30V DC / 7-24V AC SMPS.
Max. 5VA
2.5mm² screw-terminal connections
-60.0 ... +150.0°C (-76.0 ... +302.0°F)
0.1°C (Can be selected as 0.1ºC or 1ºC.)
±1°C
±1%
4 digits, 12.5mm, 7 segment LED
EN 61326-1: 2013
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
For EDT5412A-X-R; Relay: NO+NC 250V AC,8A (for resistive load), 1/2hp, 0.37kW 240V AC (for inductive load)
For EDT5412A-X-P; Relay: NO 277V AC,20A ( for resistive load
For EDT5412A-X-R; Relay : NO +NC 250V AC, 8A (
1/2hp, 0.37kW 240V AC
For EDT5412A-X-R; Without load 30.000.000 switching; 250V AC, 8A (resistive load) 100.000 switching.
For EDT5412A-X-P; Without load 10.000.000 switching; 277V AC, 20A (resistive load) 100.000 switching.
For EDT5412A-X-R; Without load 30.000.000 switching;
250V AC, 8A (resistive load) 100.000 switching.
Single set-point control
On-Off control
Adjustable between 1 ... 20.0 °C.
Suitable for flush -panel mounting
W54xH94xD70mm
Approx. 190g (After packing)
Self extinguishing plastics.
3
2
1
Barbaros Cad. No:18 Y.Dudullu 34775
Fax : +90 216 365 74 01
Rear Panel : IP20
), 2hp, 1.49kW 250V AC ( for inductive load )
for resistive load ),
(for inductive load)
Mounting the device to the rail :
Push the device in direction 1 and
provide to keep it locked on the rail.
Removing the device from rail ;
Push the rail lock on the device in
direction 2 with a screwdriver and
pull the device in direction 3 .
ENDA TM
EDT5412A-EN-01-191219
