sisel ENDA ET2413K Quick Start Manual

Please read this document carefully before using this product. The guarantee will be invalidated if the device is
damaged by not following instructions detailed in the manual. The company shall not be responsible for any damage or
losses however caused, which may be experienced as a result of the installation or use of this product.

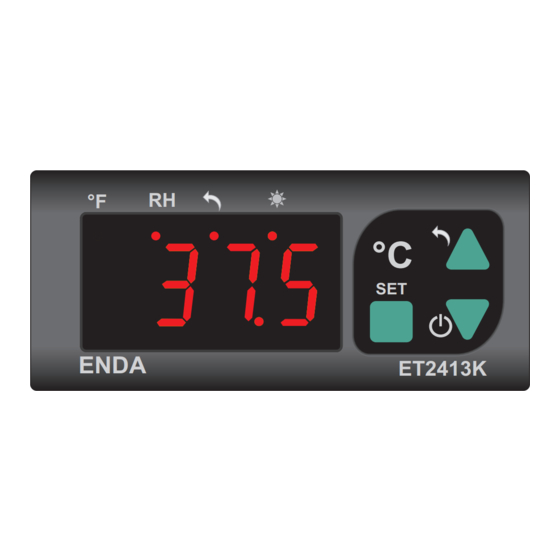

ENDA ET2413K DIGITAL THERMOSTAT
Thank you for choosing ENDA ET2413K incubator temperature controller devices.
°F RH
°C
SET
SET
ENDA
ET2413K
Order Code : ET2413K -
1 2
1 - Supply Voltage
230........230V AC
24 ........24V AC/DC
12 ........12V AC/DC
2 - ModBus (Optional)
RS.........ModBus
Blank.....N/A
ENDA ET2413K is intended for installation in control panels. Make sure that the device is used
only for intended purpose. The electrical connections must be carried out by a qualified staff
and must be according to the relevant locally applicable regulations. During an installation, all of
the cables that are connected to the device must be free of electrical power.
ENDA
SN: XXXXXXXXX
INDUSTRIAL ELECTRONICS
ET2413K-230
DIGITAL DEFROST
8 680407 711284
THERMOSTAT
Made in Turkey
1 2 3 4 5 6 7 8 9 11 12
10
Equipment is protected throughout by
DOUBLE INSULATION
NOTE:
Fuse
SUPPLY: F 100 mA
Switch
250V AC
6 Line
184-253V AC
50/60Hz 4VA
7
Neutral
Fuse should
be connected
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18 Y.Dudullu 34775
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
35x77mm sized
On-Off control.
Relay output for heating operation
Single NTC probe input
Offset value can be adjusted for NTC input
Upper and Lower setpoint value limits can be adjusted.
Rotation duration and intervals can be adjusted
Manuel process feature
Humidity duration and intervals can be adjusted
Temperature unit can be selected °C or °F.
Transfer device parameter settings with ENDAKEY
- No power-up required
RS485 ModBus protocol communication feature (optional)
CE marked according to European Norms.
ENDA
INDUSTRIAL ELECTRONICS
ET2413K-24-RS
DIGITAL DEFROST
8 680407 711321
THERMOSTAT
1 2 3 4 5 6 7 8 9
Holding screw
0.4-0.5Nm.
Note:
1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
230V AC
2) In accordance with the safety regulations, the power
Supply
supply switch shall bring the identification of the
relevant instrument and it should be easily
Cable size: 1,5mm²
accessible by the operator.

ENVIRONMENTAL CONDITIONS

Ambient / Storage Temperature
Relative Humidity
Protection class
Height
Do not use the device in locations subject to corrosive and flammable gasses.

ELECTRICAL CHARACTERISTICS

Supply Voltage
Power Consumption
Connection
Scale
Sensitivity
Accuracy
Time Accuracy
Display
EMC
Safety Requirements

OUTPUTS

Heat Relay Output
Rotation Relay Output
Humidification Relay Output

LIFE EXPECTANCY FOR RELAYS

Heat Relay
Rotation Relay
Humidification Relay

CONTROL

Control Type
Control Algorithm
Hysteresis

HOUSING

Housing Type

Dimensions

Weight
Enclosure Material
While cleaning the device, solvents (thinner, gasoline, acid etc.) or corrosive materials must not be used.
DIMENSIONS
°F RH
Made in Turkey
ENDA
COM B A
10 11 12 13
1/3
0 ... +50°C/-25 ... 70°C (without icing)
Relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C.
According to EN60529; Front panel : IP65
Rear Panel : IP20
Max. 2000m
230V AC +%10 -%20, 50/60Hz ; 12V AC/DC ± %10 or 24V AC/DC ±%10
Max. 5VA
2.5mm² screw-terminal connections
-60.0 ... +150.0°C (-76.0 ... +302.0°F)
0.1°C (Can be selected as 0.1ºC or 1ºC.)
±1°C
±1%
4 digits, 12.5mm, 7 segment LED
EN 61326-1: 2013
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
NO +NC 250V AC, 8A ( for resistive load
NO 250V AC, 8A (for resistive load), 1/2hp, 0.37kW 240V AC (for inductive load)
NO 250V AC, 8A (for resistive load), 1/2hp, 0.37kW 240V AC (for inductive load)
Without load 30.000.000 switching; 250V AC, 8A (resistive load) 100.000 switching.
Without load 30.000.000 switching; 250V AC, 8A (resistive load) 100.000 switching.
Without load 30.000.000 switching; 250V AC, 8A (resistive load) 100.000 switching.
Single set-point control
On-Off control
Adjustable between 1 ... 20.0 °C.
Suitable for flush -panel mounting
W77xH35xD61mm
Approx. 190g (After packing)
Self extinguishing plastics.
77mm
For removing mounting clamps:
- Push the flush-mounting
°C clamp in direction 1 as shown
in the figure below.Then,pull
SET
SET
out the clamp in direction 2 .
ET2413K
Flush mounting
clamp
Panel cut-out
1
), 1/2hp, 0.37kW 240V AC ( for inductive load )
Depth
61mm 5mm
2
Flush mounting
Rubber
clamp
Panel
packing
Note:
71,5mm
1) Panel thickness should
be maximum 7mm.
2) If there is no 60mm free
space at the back side of
the device,it would be
difficult to remove it from
the panel.
ENDA
ET2413K-EN-01-170327
