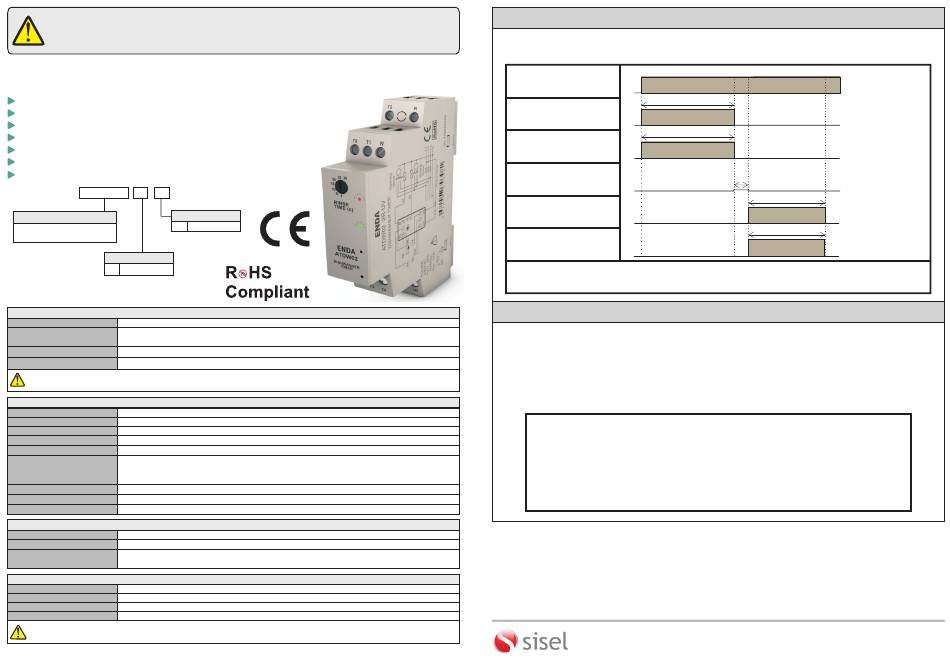

sisel Enda ATDW02 Quick Start Manual

Please read this document carefully before using this product. The guarantee will be invalidated if the
device is damaged by not following instructions detailed in the manual. The company shall not be
responsible for any damage or losses however caused, which may be experienced as a result of the
installation or use of this product.
ENDA ATDW02 Rail Mounted Dishwasher Time Relay
Thank you for choosing ENDA ATDW02 Rail Mounted Dishwasher Time Relay.
5 Different washing time selection with commutator.
Adjustable rinsing time between 1to 30 sec.
Washer motor for wash function (W) output relay.
Rinse function (R) output relay for rinsing function.
Rail mounted.
Screw-terminal connections.
CE marked according to European Norms.
ATDW02 - 2R - UV
ORDER CODE
Supply Voltage
Product Basic Code
UV 230V AC
Rail Mounted Dishwasher
Time Relay
Output Relay
2R 2 Relay
Technical Specifications
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature 0 ... +50°C/-25 ... +70°C (Mustn't be icing and condensation in the environment).
Relative humidity 80% for temperatures up to -31°C decreasing linearly to 50% relative
Max. relative humidity
humidity at +40°C. (Mustn't be condensation in the environment).
Rated pollution degree
IP20, According to EN 60529
Height Max. 2000m
KEEP AWAY device from exposed to corrosive, volatile and flammable gases or
liquids and DO NOT USE the device in similar hazardous locations.
ELECTRICAL CHARACTERISTICS
Supply voltage
90-250V AC +10% -20%.
Power consumption Max. 10VA
Connection
Screw-terminal connection.
Rinsing duration Can be adjusted linearly between 1 and 30 sec.
Resetting time
Max. 0.04 seconds.
Depending on the effect of voltage
Depending on the set value settings
Accuracy
Depending on the effect of temperature : max 1%.
EMC EN 61326-1: 2013
Safety requirements
EN 61010-1: 2010 (pollution degree 2, overvoltage category II)
3kV AC min. 60 Seconds, 4,2kV DC min. 60 Seconds.
Insulation test voltage
OUTPUTS
Washing / Rinsing Outputs Relay: 250V AC, 10A (for resistive load).
Life expectancy for relays Without load 10.000.000 operation; 250V AC, 10A resistive load 50.000 operation.
Washing LED illuminates when rinse output is active.
LED Indicators
Rinse LED illuminates when rinse output is active.
HOUSING
Mounting Rail mounted (EN 60715, TH35)
Dimensions W18xH90xD66mm
Weight Approx. 90g (after packaging)
Self extinguishing plastics.
Enclosure material
Avoid any liquid contact when the device is switched on.
DO NOT clean the device with solvent (thinner, gasoline, acid etc.) and / or abrasive cleaning agents.
: max 0.2%.
: max 4.5%.
ATDW02 - 2R - UV
Power
Washing Relay
Washing LED
3 Seconds
Latency Time
Rinsing Relay
Rinsing LED
Ty: Washing duration Tb: Latency time duration Td: Rinsing duration
When the device is power-up, one of the terminals T1, T2, T3, T4 and T5 is short-circuited with T0 terminal input and the device
starts. The wasing relay output will be activated until the wash time of Ty is turned on and the washing led will turn on and the
washing motor will run.
When the washing cycle expires, the washing relay output stops, the wash lamp goes off, and the device enters standby mode
(Tb) for 3 seconds. After 3 seconds, the rinsing relay output is activated during the Td (1-30 sec. Time according to the set rinse
time), the rinse led is illuminates and the rinsing motor runs. When the Td rinse time expires, the rinsing relay output stops, the
rinsing lamp goes off, and no operation is performed until the device is repower-up.
Ty Washing Duration
T1 : 30 Sec.
T2 : 60 Sec.
T3 : 90 Sec.
T4 : 120 Sec.
T5 : 180 Sec.
SİSEL MÜHENDİSLİK ELEKTRONİK SAN. VE TİC. A.Ş.
Şerifali Mah. Barbaros Cad. No:18
ÜMRANİYE/İSTANBUL-TURKEY
Tel : +90 216 499 46 64 Pbx. Fax : +90 216 365 74 01
url : www.enda.com.tr
1 / 2
OUTPUT CONTROL
Ty
Ty
Tb
Td
Td
OPERATING
Td Rinsing Duration
1-30 Sec. Can be adjusted on the device.
Tb Latency Time Duration
3 sn
Y.Dudullu 34775
ENDA TM
ATDW02-EN-190220
