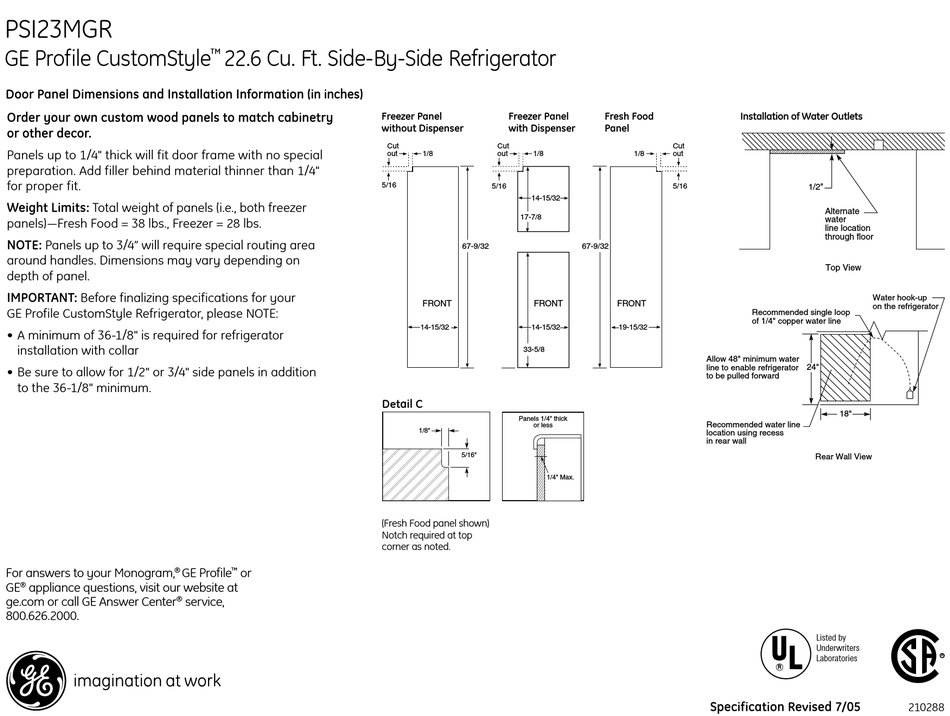

PSI23MGR
GE Profile CustomStyle
Door Panel Dimensions and Installation Information (in inches)
Order your own custom wood panels to match cabinetry
or other decor.
Panels up to 1/4" thick will fit door frame with no special
preparation. Add filler behind material thinner than 1/4"
for proper fit.
Weight Limits: Total weight of panels (i.e., both freezer
panels)—Fresh Food = 38 lbs., Freezer = 28 lbs.
NOTE: Panels up to 3/4" will require special routing area
around handles. Dimensions may vary depending on
depth of panel.
IMPORTANT: Before finalizing specifications for your
GE Profile CustomStyle Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for refrigerator
installation with collar
• Be sure to allow for 1/2" or 3/4" side panels in addition
to the 36-1/8" minimum.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
22.6 Cu. Ft. Side-By-Side Refrigerator
™
or
™
service,
Freezer Panel
Freezer Panel
Freezer Panel
Freezer Panel
without Dispenser
with Dispenser
Without Dispenser
With Dispenser
Cut
Cut
1/2"
1/8
1/8
out
out
Alternate
water
5/16
5/16
1/2"
line location
through floor
14-15/32
Alternate
17-7/8
water
line location
Water hook-up
through floor
on the refrigerator
67-9/32
Top View
Water hook-up
on the refrigerator
Water hook-up
Top View
FRONT
FRONT
on the refrigerator
Recommended
single loop of 1/4" copper water line
14-15/32
14-15/32
Water hook-up
on the refrigerator
33-5/8
Recommended
single loop of 1/4" copper water line
Detail C
18"
Panels 1/4" thick
or less
1/8"
5/16"
Rear Wall View
18"
1/4" Max.
Rear Wall View
(Fresh Food panel shown)
Notch required at top
corner as noted.
In.of water & Electric Ot. Art
In.of water & Electric Ot. Art
Dr. Panel Dim. Panel 1/4 Thick
Fresh Food
Installation of Water Outlets
Fresh Food
Panel
Panel
Cut
1/8
out
5/16
67-9/32
FRONT
19-15/32
Allow 48" minimum water
Allow 48" minimum water
24"
line to enable refrigerator
line to enable refrigerator
to be pulled forward
to be pulled forward
Allow 48" minimum water
Allow 48" minimum water
24"
line to enable refrigerator
line to enable refrigerator
to be pulled forward
to be pulled forward
Recommended water line
Recommended water line
location using recess
location using recess
in rear wall
in rear wall
Recommended water line
Recommended water line
location using recess
location using recess
in rear wall
in rear wall
Specification Revised 7/05
1/2"
Alternate
water
1/2"
line location
through floor
Alternate
water
line location
Top View
through floor
Top View
Water hook-up
on the refrigerator
Recommended single loop
of 1/4" copper water line
Water hook-up
on the refrigerator
Recommended single loop
of 1/4" copper water line
24"
24"
18"
Rear Wall View
18"
Rear Wall View
