Page 1

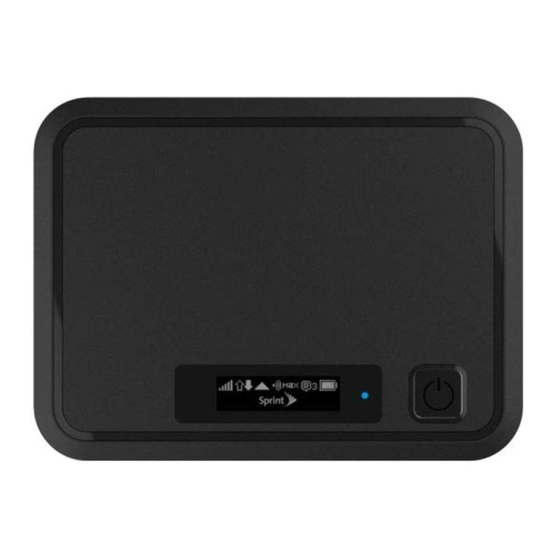

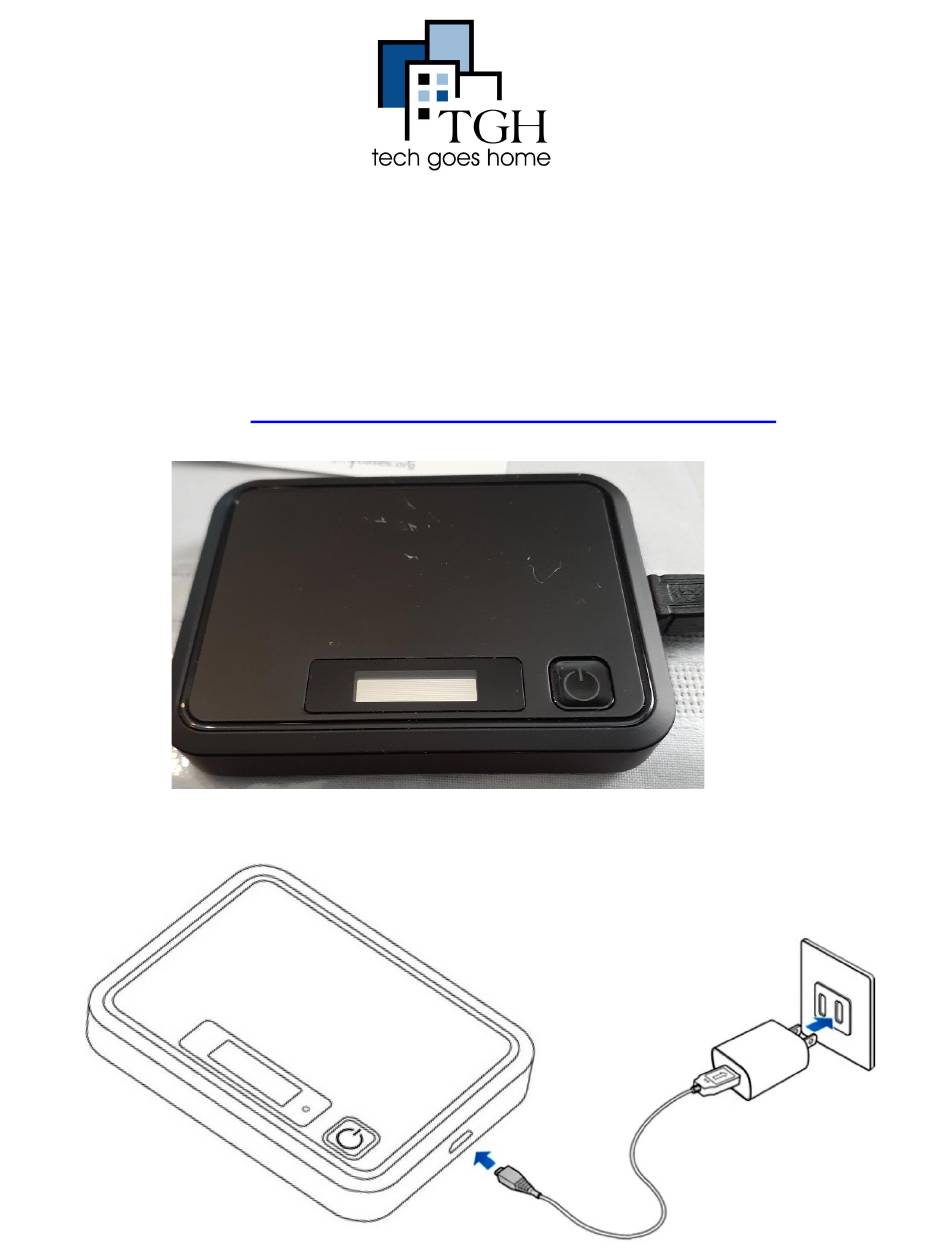

Franklin R850 HOTSPOT Franklin R850 Hotspot Set-Up The R850 Hotspot that was provided by TGH is serviced through Franklin Wireless. For issues with service you can call Franklin Wireless at 1-800-959-3558 for Customer Service in English & Spanish. For more information go to www.franklinwireless.com/support/contact-us...
Page 2
2. The indicator light on the power button illuminates red when charging starts. It may take up to three hours to fully charge the battery. The light will turn green when the device is fully charged. 3. To turn on the device, press and hold the Power button until the device displays "Welcome"...
Page 3
6. To turn off your hotspot, press and hold the Power button until the device displays "Goodbye". Troubleshooting Notes: To reset your device settings to factory default first turn ON your ● hotspot. Then Press the reset button which is located on the backside of the device after battery cover is removed.
Page 4
Home Screen Layout ① Display Screen ● Displays status indicators including Signal strength, SIM Card, Roaming, battery level and more. ② Power (Menu) Button ● Turns the device on or off ● The button to use to activate the menu ●...
Page 5
Status Bar Icons Description Mobile networks connected Service signal strength. The more bars, the better service signal received. Out of service area Appears when roaming The number of connected WiFi devices The battery is full The battery is low No battery, battery icon is blinking (charge is required)
Page 6
Menu Bar Icons ● On a computer that is connected to the hotspot network, open the web browser and enter http://MyHotSpot http://192.168.128.1 in the address bar. ● Shows the number of connected devices. ● Use this feature to see Wi-Fi names and addresses of the devices currently connected.
