SERVICE CENTER, SALES AND TECHNICAL SUPPORT INFORMATION
Corporate Headquarters
3251 Olcott Street
Santa Clara, CA 95054
800-446-3392
408-734-1400 Direct
408-734-1415 Fax
www.metrotech.com
sales@metrotech.com
Warranty: One year. Specifications Subject to change without notice, ISO 9001:2000 Certified. Copyright 2008. All Rights Reserved.
480B™SFL 2Dx
Metrotech Eastern U.S. Service Center
1824 Murfreesboro Road, Ste. 104
Nashville, TN 37217
800-624-6210
615-366-7323 Direct
615-360-9855 Fax
nashville@metrotech.com
OPERATIONS MANUAL
Metrotech European Service Center
Seba KMT
Dr. Herbert Iann St. 6
96148 Baunach, Germany
+49 9544 680
+49 9544 2273 Fax
service@sebakmt.com
Rev 12/01/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 480B SFL 2Dx and is the answer not in the manual?

Questions and answers

Related Manuals for Metrotech 480B SFL 2Dx

Summary of Contents for Metrotech 480B SFL 2Dx

  • Page 1 480B™SFL 2Dx OPERATIONS MANUAL SERVICE CENTER, SALES AND TECHNICAL SUPPORT INFORMATION Corporate Headquarters Metrotech Eastern U.S. Service Center Metrotech European Service Center 3251 Olcott Street 1824 Murfreesboro Road, Ste. 104 Seba KMT Santa Clara, CA 95054 Nashville, TN 37217 Dr. Herbert Iann St. 6...
  • Page 2 ISO 9001:2001 CERTIFIED Metrotech has received ISO 9001: 2001 Quality Management System Certification. Metrotech adheres to the quality standard guidelines of ISO 9001 and ensures quality in its design/development, production, installation, and servicing disciplines. © Metrotech Corporation 2005-2008 Metrotech Corporation...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS List of illustrations ……………………………………………………….….2 1 Introduction …….……..………………………….…………………………….3 2 Safety Precautions ……………………………………………………………..4 3 480B/SFL2Dx Quick Start Guide for the Experienced User ……..……...5 4 480B/SFL2Dx Equipment ………………………………..……………….…...13 4.1 Standard Equipment……………………………………………….…….13 4.2 Optional Accessories…………………………………………………….15 4.3 Technical Specifications………………………………………………...16 4.4 Transmitter Controls and Indicators…………………………….………19 4.5 Transmitter Features…………………………………………………….21 4.6 A-Frame Receiver Controls and Indicators……………………………..22 4.7 Additional A-Frame Receiver Features…………………………………23...
  • Page 4 8 Advanced Techniques …...….………………………………………………..35 8.1 Faults Under Inaccessible Surfaces…………..……………………….…..35 8.1.1 Perpendicular Method…… …………………… ……………………...35 8.1.2 Triangulation Method…………………………… …………...…….….36 8.2 Faults Under Pavement…..……………………………………………..37 8.3 Long Distance Tracing……… ………………….………………………37 8.4 High and Low Impedance Faults……………………….…………….. .38 Multiple Faults…………………… . ……………….………………….. 9 Line Locating …...….…………………………………..

  • Page 5: List Of Illustrations

    ILLUSTRATIONS Figure 3-1: Fault Resistance Scale…………………………………………….5 Figure 3-2: Clamping Black Lead to Ground Rod…..…….. ………………...6 Figure 3-3: Clamping Red Lead to Targeted Cable.………………………..6 Figure 3-4: Locating the Targeted Cable…………..………………. .… …… 7 Figure 3-5: Positioning of A-Frame Receiver for Synchronization………….8 Figure 3-6: Locating the Cable Fault with A-Frame Receiver…….……….

  • Page 6: Introduction

    INTRODUCTION The Metrotech 480B/SFL2Dx Sheath Fault Locator system is designed to detect and pinpoint sheath and other conductor faults that are in direct contact with the earth. The 480B/SFL2Dx offers these unique features: ♦ Fault level measurement at the Transmitter ♦...

  • Page 7: Safety Precautions

    SAFETY PRECAUTIONS Metrotech Utility Line and Sheath Fault Locators are intended for use by utility and contractor professionals. Safety hazards for underground utility access areas include electrical shock, explosive gases, and toxic fumes as well as potential influence on communications and control systems such as traffic control and railroad crossings.

  • Page 8: 480B/Sfl2Dx Quick Start Guide For The Experienced User

    480B/SFL2Dx SHEATH FAULT LOCATOR QUICK START FOR THE EXPERIENCED USER Check batteries prior to departing for the field Check the batteries in the Transmitter, Receiver, and A-Frame. Replace/recharge if necessary. Turn the instruments off. Ensure all conductors are de-energized Lift grounds Lift Grounds (of all conductors in the circuit) at both ends of the faulted cable section.

  • Page 9: Figure 3-2: Clamping Black Lead To Ground Rod

    Figure 3-2: Clamping Black Lead to Ground Rod Figure 3-3: Clamping Red Lead to Conductor...

  • Page 10: Figure 3-4: Locating The Targeted Cable

    Use the 480B Line Locator Receiver to Trace the Cable Trace and mark the cable as you proceed towards the fault. Adjust Receiver Controls - Turn Receiver “ON”. Sweep Area Around Transmitter – Circle Transmitter with Receiver at a distance of 10 feet (3 m). The meter indicates the signal strength detected by the Receiver.

  • Page 11: Figure 3-5: Positioning Of A-Frame Receiver For Synchronization

    Synchronize the A-Frame Receiver and establish Reference value of fault (A-Frame receiver has a one-color band above each spike (Black or White) 1 Hold the A-Frame Receiver so the spike with the black band is about 2 steps away from the ground rod and the spike with the white band is in-line with the targeted cable.
  • Page 12 Monitor bar-graph LCD display for arrow direction. If the arrow points away from the ground rod, there is a fault. If the arrow points towards the ground rod, there is no fault, and grounds and connections need to be rechecked A Reference number will be displayed at turn on and will stay fixed until A-frame is turned off.

  • Page 13: Figure 3-6: Locating The Cable Fault With A-Frame Receiver

    Figure 3-6 : Locating the Cable Fault with A-Frame Receiver...
  • Page 14 Active number at each fault site and compare it to the Reference number. The higher the Active number the larger the fault. If you have difficulty with your Metrotech 480B/SFL2Dx Sheath Fault Locator, check the manual for additional tips. If it still doesn’t work, call us at 1-800-446-3392.
  • Page 15 NOTE: This equipment has been tested and found to comply within limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy.

  • Page 16: 480B/Sfl2Dx Equipment

    MODEL 480B/SFL2Dx EQUIPMENT Standard Equipment The standard equipment included is the following: Part Model # Description Remarks 11206 4.8Hz, 83 kHz Transmitter 400D108 83 kHz, 50/60 Hz Receiver 10498 4.8Hz A-Frame Receiver 400A140 Conductive attachment 10873 Vehicle Mount Charger 12 Volts DC power lead for Transmitter 11207 Operating Manual...

  • Page 17: Figure 4-1: Standard Equipment

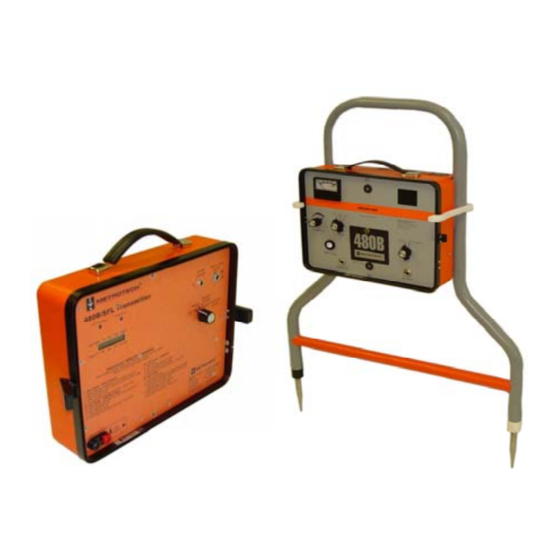

    Figure 4-1: Standard Equipment Standard Equipment: 1. 480B/SFL Transmitter 2. 480B Receiver 3. Conductive Attachment 4. Ground Rod 5. Vehicle Mount 12-Volt DC Power Lead 6. Operation Manual 7. Bracket 8. SFL2Dx A-Frame...
