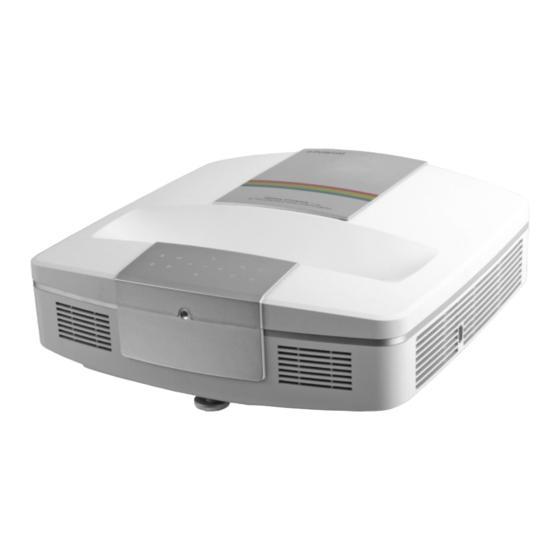

- Page 1 Home Cinema U-100 An HD ultra-short throw smart projector USER MANUAL Please read this user manual carefully before using your unit.
-
Page 3: Table Of Contents
CONTENTS CAUTION WHAT IS IN THE BOX PRODUCT INTRODUCTION 4 -5 REMOTE CONTROLLER INTRODUCTION / HOW TO USE THE REMOTE CONTROLLER WIRELESS MOUSE DESCRIPTION CONNECTION TO EXTERNAL EQUIPMENTS HOW TO USE THE PROJECTOR HOW TO ADJUST THE SCREEN ANGLE OF THE PROJECTOR MAIN MENU INTRODUCTION 11-14 ABOUT SYSTEM SETTING... -
Page 4: Caution
CAUTION CONTENTS Do not look into the lens Do not cover or block vents of while the projector is in the projector. operation. Do not use the projector under No user serviceable parts. extremely hot, cold or high humidity environment. Do not use the projector at Unplug the projector if you are not dusty or dirty places. -
Page 5: What Is In The Box
WHAT IS IN THE BOX CHECKING ON THE ACCESSORIES Note: The appearances of accessories may vary from country to country. Please refer them to the actual items in the box. Projector Remote Controller Power Adapter (one piece of CR2032 Lithium battery is included) Wireless Mouse Mouse Pad... -
Page 6: Product Introduction
PRODUCT INTRODUCTION TOP VIEW 1. Mute: Turn off / restore the sound 2.Decrease the volume 3.Increase the volume 4. MENU button 5. Direction Keys Direction Go to previous selection page / cursor up Go to next selection page / cursor down Go to left selection page / cursor left Go to right selection page / cursor right 6.OK button: Confirm / Play... - Page 7 SIDE VIEW 16 . USB ports 17 . DC power input jack 18. AV input port 19 . Ethernet input port 20. USB ports 21. HDMI input port 22. Micro SD / TF card slot REAR VIEW 23. IR receiver input jack 24.
-
Page 8: Remote Controller Introduction / How To Use The Remote Controller
REMOTE CONTROLLER INTRODUCTION / HOW TO USE THE REMOTE CONTROLLER CONTROLLER FUNCTION KEYS Power Turn on/off the unit Source Switch among data source Home Enter main menu channels: AV / HDMI 1 / HDMI 2 Confirm / play Exit current mode, previous Return control level Go to left selection page /... -
Page 9: Wireless Mouse Description
WIRELESS MOUSE DESCRIPTION and insert it into the USB port of projector. 3. Instal battery(UM4/AAA), and then replace the cover. The image is for illustrative purposes only. For the real shape, please refer to the actual product. -
Page 10: Connection To External Equipments
CONNECTION TO EXTERNAL EQUIPMENTS Note: This projector can access the internet independently Connecting a TV set top box, game console, computer, without being connected to any external devices. mobile phone, or media tablet Connecting USB drive, Micro SD, or TF card Connecting a USB drive, Micro SD, or TF card into the USB socket or the card slot on the projector. -
Page 11: How To Use The Projector
HOW TO USE THE PROJECTOR 1. Connecting to AC power 2. Turn on the projector and the external equipment if existed. Projector To DC IN 12V on the... -
Page 12: How To Adjust The Screen Angle Of The Projector
(Note: Clockwise adjustment to the adjusters is to raise the height; counterclockwise adjustment to the adjusters is to lower the height.) Left edge wider / right left e dge narrower / edge narrower right e dge wider (rotate clockwise) (rotate counterclockwise) (raise the tilt adjuster) (lower the tilt adjuster) If the projected image is distorted as above illustrations,... -
Page 13: Main Menu Introduction
MAIN MENU INTRODUCTION After the is powered on, the following interface (main menu) appears: Projector Source Wireless Casting Music Show the current channel. You can access Miracast, Stores frequently use or DLNA, & AIRPLAY casting favorite online music programs here. player apps. - Page 14 1. SOURCE 3. SETTINGS Connecting AV / HDMI1 / HDMI 2 Select " " on the projector or the remote controller, then click "Settings" on the main menu to enter the "Settings" Select " " on the projector or the remote controller, page.
- Page 15 When connecting with Micro SD/TF card or USB drive, Note: The unit supports third-party Android applications. please Micro SD/ TF card or USB . select your Applications can be downloaded and installed from the internet directly. If you encounter difficulties doing so for some reasons, you can follow below steps to download the application on a PC, copy it onto a micro SD card, then install the application to...
- Page 16 6. LOCAL Click "Local" on the main menu to enter the "Local" page. When connecting Micro SD/TF card or USB drive, When playing video, press【OK】to popup OSD menu. please follow below steps to select the content inside. You u se【 / 】 button t o s elect t he f unction, a nd p ress 【...
-
Page 17: About System Setting
ABOUT SYSTEM SETTING Click Settings main menu About device: system updates, status, legal information, model number, Android version, kemel version, build number. -15-... -
Page 18: How To Access The Internet Through Wi-Fi Connection
HOW TO ACCESS THE INTERNET THROUGH WI-FI CONNECTION Wi-Fi SETTINGS Click Settings on the main menu to enter the "Settings" page. Under "Network", click on "Wi-Fi", the screen will show available Wi-Fi networks. Select the one you want to connect with. Click to return to the main menu. -
Page 19: How To Access The Internet Through Ethernet Connection
HOW TO ACCESS THE INTERNET THROUGH ETHERNET CONNECTION ETHERNET SETTINGS Connect network cable. Click Settings on the main menu to enter the "Settings" page. Under "Network", click on " ", the screen will show Connected to IP. Ethernet Click to return to the main menu. Then you may surf the internet by clicking the browser. Router Network cable Network cable... -
Page 20: How To Access The Internet Through A 3G Mobile Phone Connection (Part I: Through A 3G Enabled Android Smartphone)
HOW TO ACCESS THE INTERNET THROUGH A 3G MOBILE PHONE CONNECTION (PART I: THROUGH A 3G ENABLED ANDROID SMARTPHONE) 1. Enter "Setting" on smart phone, follow the following steps to finish your setting. 2. Enter " Setting " on the projector, click "... -
Page 21: How To Access The Internet Through A 3G Mobile Phone Connection (Part Ii: Through A 3G Enabled Iphone)
HOW TO ACCESS THE INTERNET THROUGH A 3G MOBILE PHONE CONNECTION (PART II: THROUGH A 3G ENABLED iPhone) 1. Enter "Setting" on iPhone, follow the following steps to finish your setting. 2. Enter "Setting" on the projector, click "Wi-Fi" to auto-search iPhone hotspot and connect. -19-... -
Page 22: How To Access The Miracast Casting Program
HOW TO ACCESS THE MIRACAST CASTING PROGRAM 1. Find the Target Name of the projector firstly. Turn on the projector. Select Miracast under Wireless Casting. Click Settings, then you find the Target Name. You may change the default Target Name by click the Target Name and change. 2.Make sure the projector and the end device (for example: a handset, a tablet ... - Page 23 3. Turn on the Miracast function on the end device. 4. Turn on the Miracast function on the projector by clicking "Search Device" under Wireless Casting on the main menu. 5. Turn on the search device function of the end device, then click the right Target Name of the projector it finds.
-
Page 24: How To Access The Dlna Dmp Casting Program
HOW TO ACCESS THE DLNA DMP CASTING PROGRAM DLNA DMP (DLNA Digital Media Player): 1. Make sure the end device linked with the projector on the same WiFi network. 2. Turn on the DLNA function on the end device. * For PC (Windows) (1) Turn on Windows Media Player (2) Click"... - Page 25 * For other end devices (1) Turn on the DLNA function. (2) Turn on the projector and select Media Center in Wireless Casting . Select DLNA DMP. Click the up-right corner to refresh. Then it will show the names of connectable devices on the right side. Select and click the device of your choice.
-
Page 26: How To Access The Dlna Dmr Casting Program
HOW TO ACCESS THE DLNA DMR CASTING PROGRAM DLNA DMR (DLNA Digital Media Renderer): 1. Make sure the end device linked with the projector on the same WiFi network. 2. Turn on the projector and select DLNA DMR on Media Center in Wireless Casting. Turn on all the selection items on the right side. - Page 27 4. There are DLNA selections on the display of the device. If not found, select MENU and find the DLNA selections where you can choose the Target Name of the projector . 5. The projector will be playing the file on the device you opened. -25-...
-
Page 28: How To Access The Airplay Casting Program
HOW TO ACCESS THE AIRPLAY CASTING PROGRAM 1. Make sure the Apple device linked with the projector on the same WiFi network. 2. Turn on the projector and select AirPlayer beneath Media Center in Wireless Casting . 3. Turn on all the selection items of Airplay on the Apple device. 4. -
Page 29: How To Access The Bluetooth Speaker Through Bluetooth Connection
HOW TO ACCESS THE BLUETOOTH SPEAKER THROUGH BLUETOOTH CONNECTION BLUETOOTH SETTINGS On Main Manual, select Settings. Click "Settings", then click "Add accessory". Turn on the Bluetooth by clicking the up right "on-off" switch. Available Bluetooth devices will be shown up. Click the one you want to connect with. -
Page 30: Troubleshooting
TROUBLESHOOTING -28-... -
Page 31: Specification
SPECIFICATION Imaging technology Light source White brightness 700 lumens (on LED scale) Color brightness 700 lumens (on LED scale) Perceived brightness 3000 lumens (on lamp scale) Throw ratio 0.2 : 1 Projection size 70"~ 180" Projection distance 3cm~ 46cm(1.2"-18") (from front edge to wall) Power supply DV 12V / 10A Resolution... - Page 32 Polaroid, Polaroid & Pixel, Polaroid Classic Border logo and Polaroid Color Spectrum are trademarks of PLR IP Holdings, LLC, used under license. Manufactured by : World Electronic (Shenzhen) Co., Ltd. No.160 Longping West Road, Central Town Longgang District, Shenzhen City, Guangdong Province, China...
