Summary of Contents for Nexigo N970P

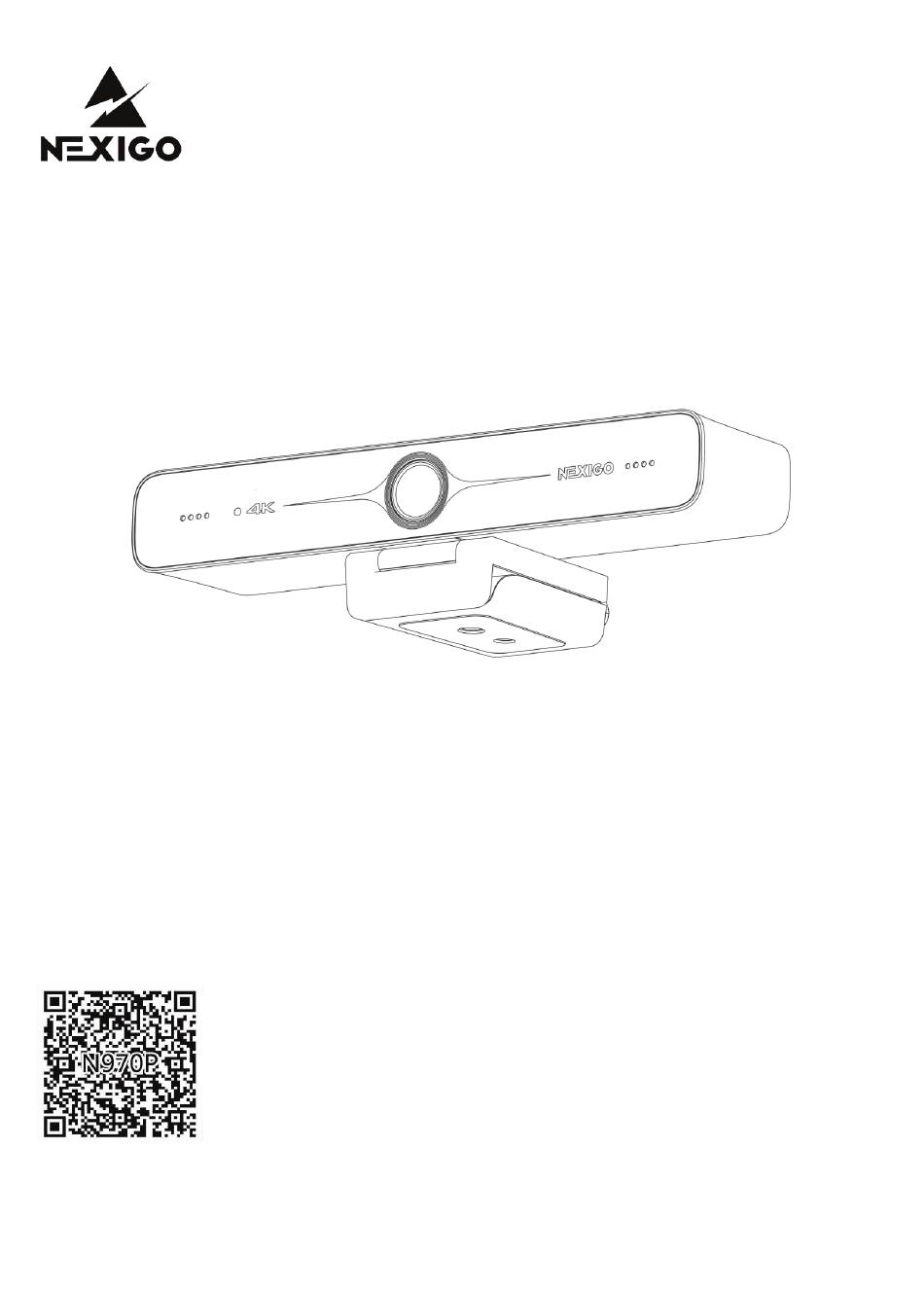

- Page 1 4K AI-Powered Webcam User Manual-N970P Scan the QR code or visit our link to download the latest manual www.nexigo.com...
- Page 3 14 days of the delivery date to extend your warranty coverage to TWO Years! From all of us here at NexiGo, we want to welcome you again to the family. We thank you deeply for your trust and for your business. We know you'll love it here. We look forward to serving you again in the near future.
- Page 4 Safety Notes This manual contains detailed instructions on the operation and installation of the NexiGo N970P. Please read the manual in its entirety before installation and use. Avoid damage to products caused by heavy pressure, strong vibration or immersion during transportation, storage and installation.
-
Page 5: Table Of Contents
Content 1.Product Installation ....................... 1 1.1 Product Diagram ..................... 1 1.2 Installing Your Webcam..................1 1.3 Connect the Webcam to Your Computer ............... 1 2.Product Overview ......................2 2.1 Dimension....................... 2 2.2 What’s in the Box? ....................2 2.3 Main Features ......................2 2.4 Specifications...................... -
Page 6: Product Installation
2) Select the apps on the list where you want the camera to be used. When the app is open, ensure that you have selected the NexiGo N970P 4K Webcam as the active camera and microphone from the list of available options. -
Page 7: Product Overview
1 x Remote (Requires 2 AAA batteries, not included) 2.3 Main Features N970P is a 4K ultra-high-definition ePTZ camera with AI intelligence. It will intelligently and automatically frame individuals in the center of its image. The N970P uses advanced ISP processing algorithms to produce vivid images with clear, even brightness, high resolution, and strong colors. -
Page 8: Specifications
Can also be installed on tripods. Easy to Use: Plug-and-play with no additional drivers or installation required. 2.4 Specifications N970P Model Camera Parameter Sensor 1/2.8-inch SONY low illumination 8.28MP sensor 8.28MP, 16: 9 Effective Pixels Video Interface 1 x USB Type-B 3.0 port; Supports audio signal output... -
Page 9: Remot Control Instruction
3.【*】,【#】Keys 4.Focus Control 【Auto】: None 【Manual】: None Designed for autofocus webcam to adjust the focus. N970P is a fixed focus webcam, so these buttonshave no function. 5.Zoom Control Note: Please ensure that you have disabled the auto framing function and closed the OSD menu before using the zoom function. -
Page 10: Applications
9.Menu Key: Press to enter/exit the On Screen Display (OSD) menu or return to the previous menu. 10.Key Combination Note: When pressing key combinations for any of the commands below, please perform them in sequence. As an example, 【*】>【#】>【3】would mean you press 【*】first, then press【#】, then press【3】. - Page 11 5)Focus Control Designed for autofocus webcam to adjust the focus. N970P is a fixed focus webcam, so these buttons have no function. 6)Camera Remote Control Address Setting These buttons do not currently have any...
-
Page 12: Main Menu
3.3 Main Menu Press MENU to display the OSD menu. Use the arrows on your remote to navigate the menu. Your selection will be displayed with an ">" arrow. Use the HOME button to select the highlighted item. MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ >（Setup) （Exposure) （Color) - Page 13 2.Exposure Setting Move the pointer to (EXPOSURE) in the Main menu, click the【HOME】and enter the (EXPOSURE menu) as shown below: EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Mode Auto Flicker 50Hz Gain Limit Close [↑↓]Select [← →]Change Value Mode: Switch to Auto, Manual, SAE and Bright modes. EV: Toggle to On/Off (only available in Auto mode).
- Page 14 COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto RG Turning BG Turning Saturation AWB Sensitivity High [↑↓]Select [← →]Change Value WB Mode: Switches to Auto, Manual, OnePush, VAR modes. RG Tuning: Adjust from -10~10 (only available when in Auto/Manual mode). BG Tuning: Adjust from -10~10 (only available when in Auto/Manual mode). Saturation: Adjust from 0~50.
- Page 15 Brightness: Adjust from 0~100. Contrast: Adjust from 0~100. Sharpness: Adjust from 0~15. Flip-H: Switch to On to flip the image horizontally, switch to Off to restore to normal Flip-V: Switch to On to flip the image vertically, switch to Off to restore to normal. B&W Mode: Switch to Color, Black, White Mode.
- Page 16 6.Version Move the pointer to the (VERSION) in the Main menu, click the【HOME】and enter the (VERSION menu) as shown below to check the current firmware version. VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Camcra Version 1.0.4 2021-09-22 7.Restore Default Move the pointer to the (RESTORE DEFAULT) in the Main menu, click the 【HOME】 and enter the (RESTORE DEFAULT menu) as shown below: RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
-
Page 17: Faq
4.FAQ Q1: How do I know if my camera is being recognized by the system? A: Connect the camera to any USB 2.0 or USB 3.0 port. It will take a few seconds for the camera to be recognized after it is connected to the system. To ensure the camera has installed correctly on a Windows computer;... - Page 18 In such environments photographed pictures are subjected to color cast due to the lighting impact of these light sources. For Windows & Mac: Using the NexiGo Webcam Settings Software, you can adjust the image parameter you want according to your needs. Note: Dowload the NexiGo Webcam Settings Software from nexigo.com/software.
- Page 19 Q3: Why does my screen go blank or black while trying to preview images? A: There are several reasons this could happen: 1. There is something wrong with the USB port. Please use a different USB port or another PC and test the camera again.
- Page 20 Get in touch with Free online services facebook.com/nexigo1 Register to get EXTRA ONE year warranty. Only valid in registering within 14 days of product delivery. nexigo.com/warranty...
