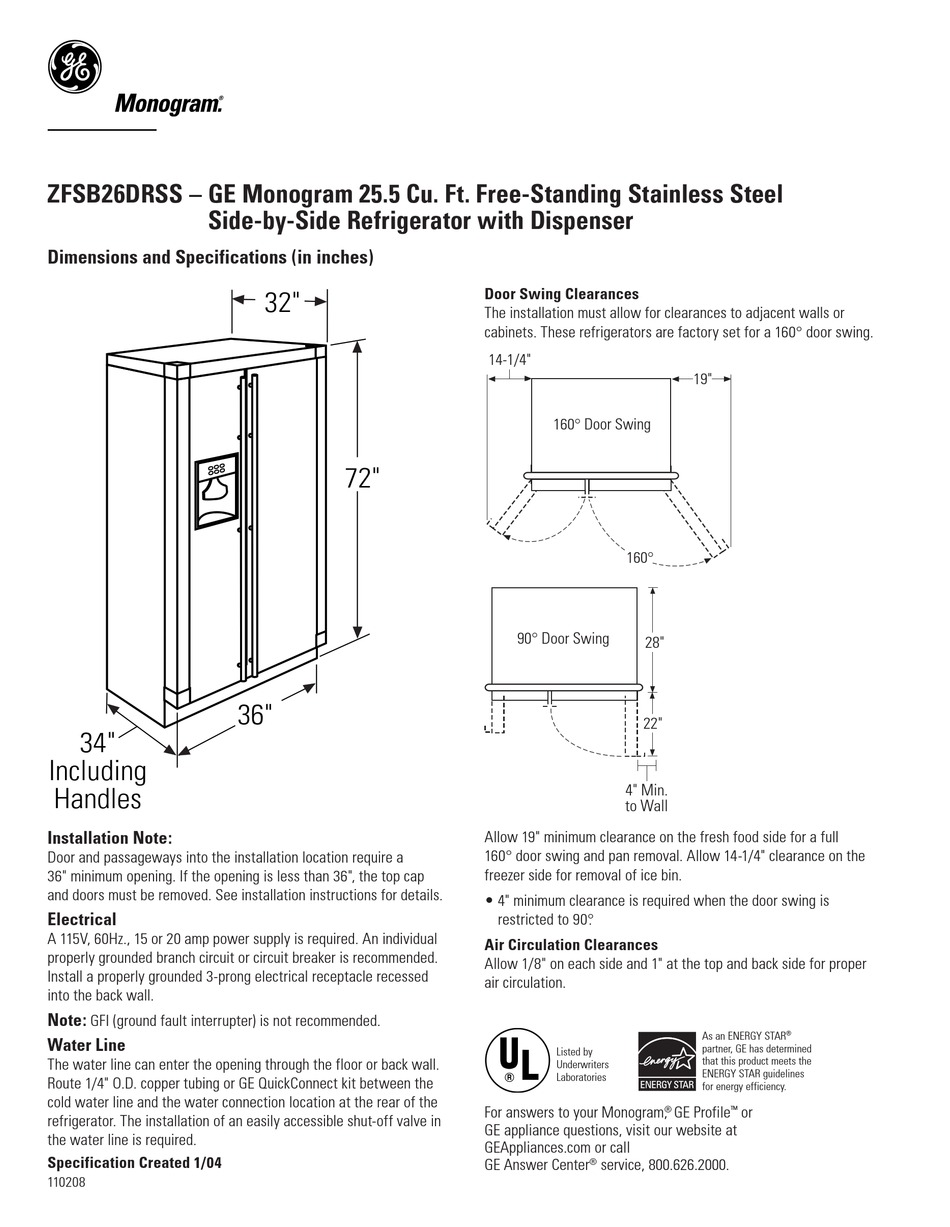

Monogram ZFSB26DRSS Dimensions And Specifications

ZFSB26DRSS – GE Monogram 25.5 Cu. Ft. Free-Standing Stainless Steel
Dimensions and Specifications (in inches)
34"
Including
Handles
Installation Note:
Door and passageways into the installation location require a
36" minimum opening. If the opening is less than 36", the top cap
and doors must be removed. See installation instructions for details.
605Dia41
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is required. An individual
properly grounded branch circuit or circuit breaker is recommended.
Install a properly grounded 3-prong electrical receptacle recessed
into the back wall.
Note:
GFI (ground fault interrupter) is not recommended.
Water Line
The water line can enter the opening through the floor or back wall.
Route 1/4" O.D. copper tubing or GE QuickConnect kit between the
cold water line and the water connection location at the rear of the
refrigerator. The installation of an easily accessible shut-off valve in
the water line is required.
Specification Created 1/04
110208
Side-by-Side Refrigerator with Dispenser
32"
72"
36"
Door Swing Clearances
The installation must allow for clearances to adjacent walls or
cabinets. These refrigerators are factory set for a 160° door swing.
ZFSB26 and ZFSB23
14-1/4"
160° Door Swing
160°
ZFSB26
90° Door Swing
28"
605Dia43
22"
4" Min.
to Wall
Allow 19" minimum clearance on the fresh food side for a full
160° door swing and pan removal. Allow 14-1/4" clearance on the
ZFSB26
freezer side for removal of ice bin.
• 4" minimum clearance is required when the door swing is
restricted to 90° .
Air Circulation Clearances
Allow 1/8" on each side and 1" at the top and back side for proper
air circulation.
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center service, 800.626.2000.
®
19"
As an ENERGY STAR
®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
