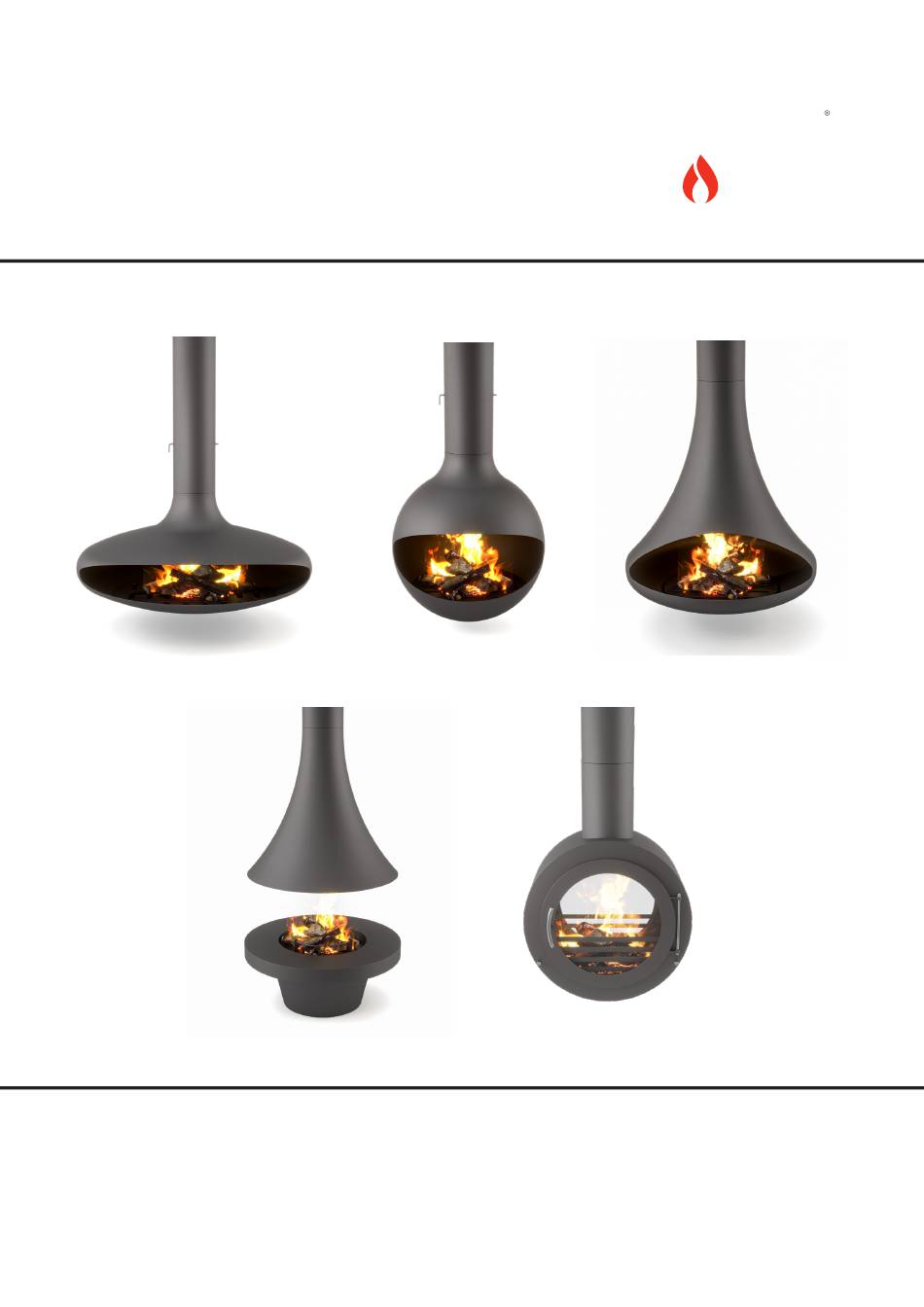

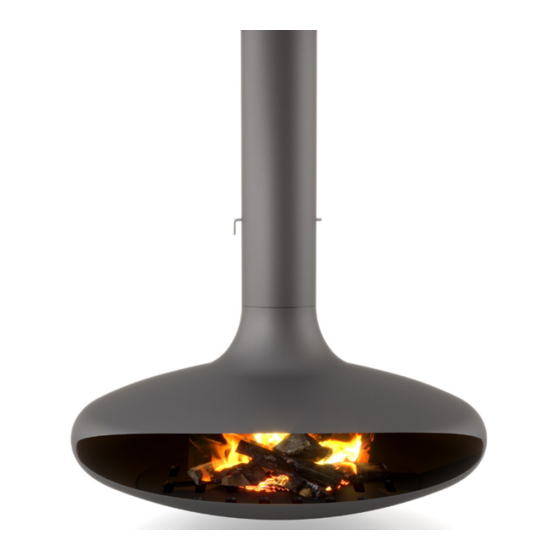

- Page 1 EXCLUSIVE HENLEY ST VES Collection 2020 EVERY HOME DESERVES A HENLEY Installation Manual Gemini | Leo | Libra | Vega | Zodiac...
- Page 2 Exclusive Collection (1) The minimum safe distance of the fireplace body to the wall is not less than 35cm, as shown in Figure 1. If the separation distance is less than 35cm the wall must be protected with a heat insulating material (fire bricks, marble, ceramic tiles, culture stone, glass, metal plates etc).
- Page 3 (2) Once you have confirmed the location in which your stove is to be installed, drill a 24-28cm diameter opening in the roof to install the flanges. The flange is fixed with M12 expanding bolts (bolt length not less than 10cm). Depending on the installation the flange can be installed on the upper or lower part of the roof as shown in Figures 2 and 3.
- Page 4 Exclusive Collection (6) Ensure that your chimney has been installed straight, level and fixed into place. Connect the rain cover and chimney, seal the joint with high temperature resistant sealant and screw into place. The chimney, rain skirt, flange and roof joints should be sealed with cement as shown in Figure 6.
- Page 5 (8) Please refer to Figure 7 and 8 for installing on a pitched roof. (9) Figure 9 shows the installation in roof with false ceiling. After completing Steps (1), (2), (3), install the ceiling decoration ring (opening diameter 28cm) as shown and complete Steps (4), (5), (6).
- Page 6 Exclusive Collection (10) For wooden roofs a double stack installation is required. Flanges and chimneys are installed as per the previous steps and an insulated flue pipe is installed inside the flange. After installing the rain skirt and rain cover, seal the chimney and roof with cement to make watertight.
