SwitchDoc Labs WeatherSense Aftershock Assembly And Test Manual page 16

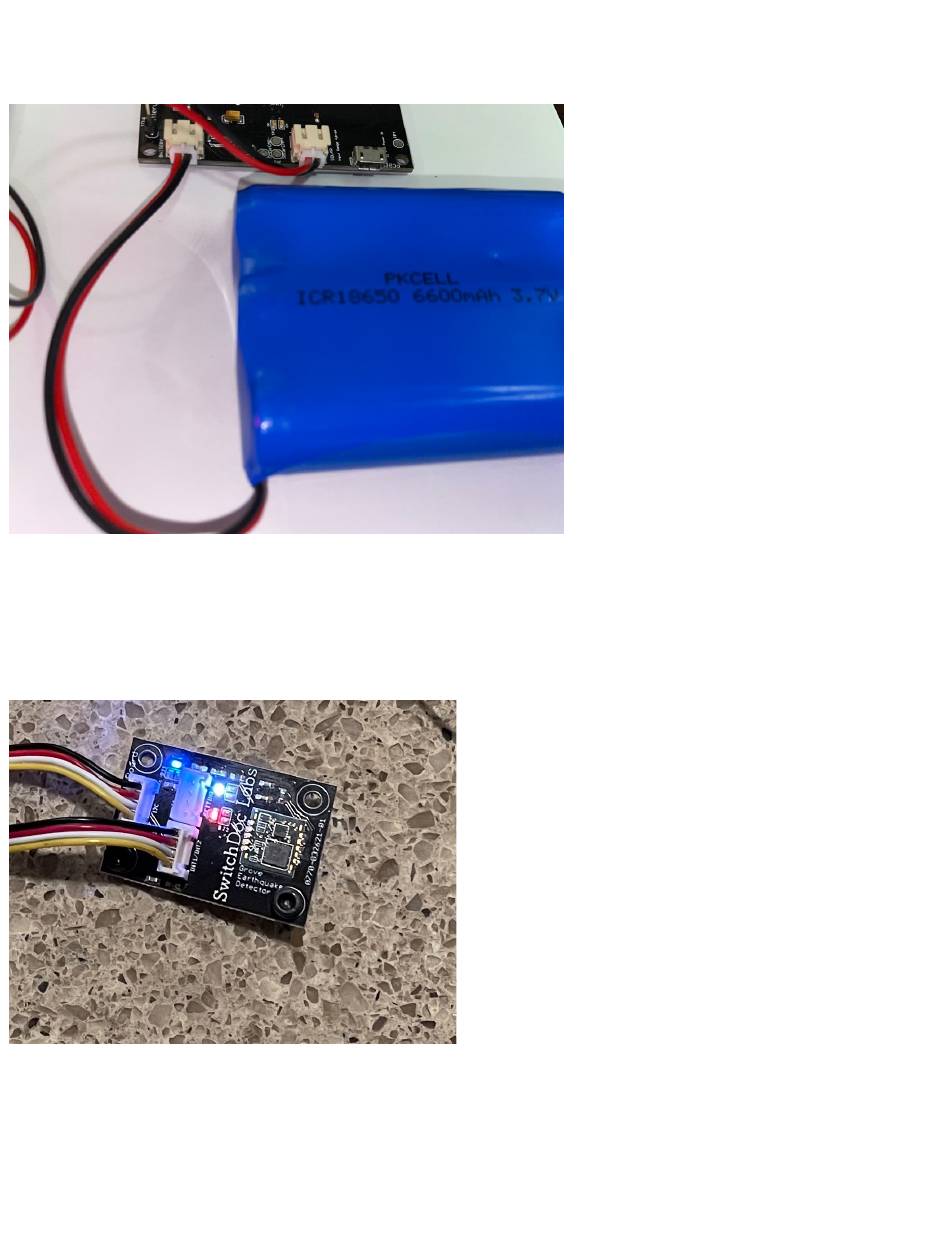

Step 10: Plug your LiPo Battery (Part G – not included) into the JST-2 connector marked Battery (near the
power switch) on the SunAirPlus2 board (Part F).
Step 11: Push the switch on the SunAirPlus2 (Part F) board away from the battery connector. You should see
LED lights come on on both boards and see the white and Red Interrupt LED lights (and then go off after a
while) on the AfterShock Board. If the white and red LEDs on the AfterShock (Part D) does not go out, you
have plugged your 20cm Grove cable into the wrong plugs on the AfterShock Board (Part D) or on the
MiniProPlus (Part A). Go back to Step 3.
Step 12: On powerup, after initialization, the WeatherSense AfterShock will send a message. You will see the
LED market TX flash on the MiniProPlus (Part A). A message has been sent and should have been received by
your Raspberry Pi software.
