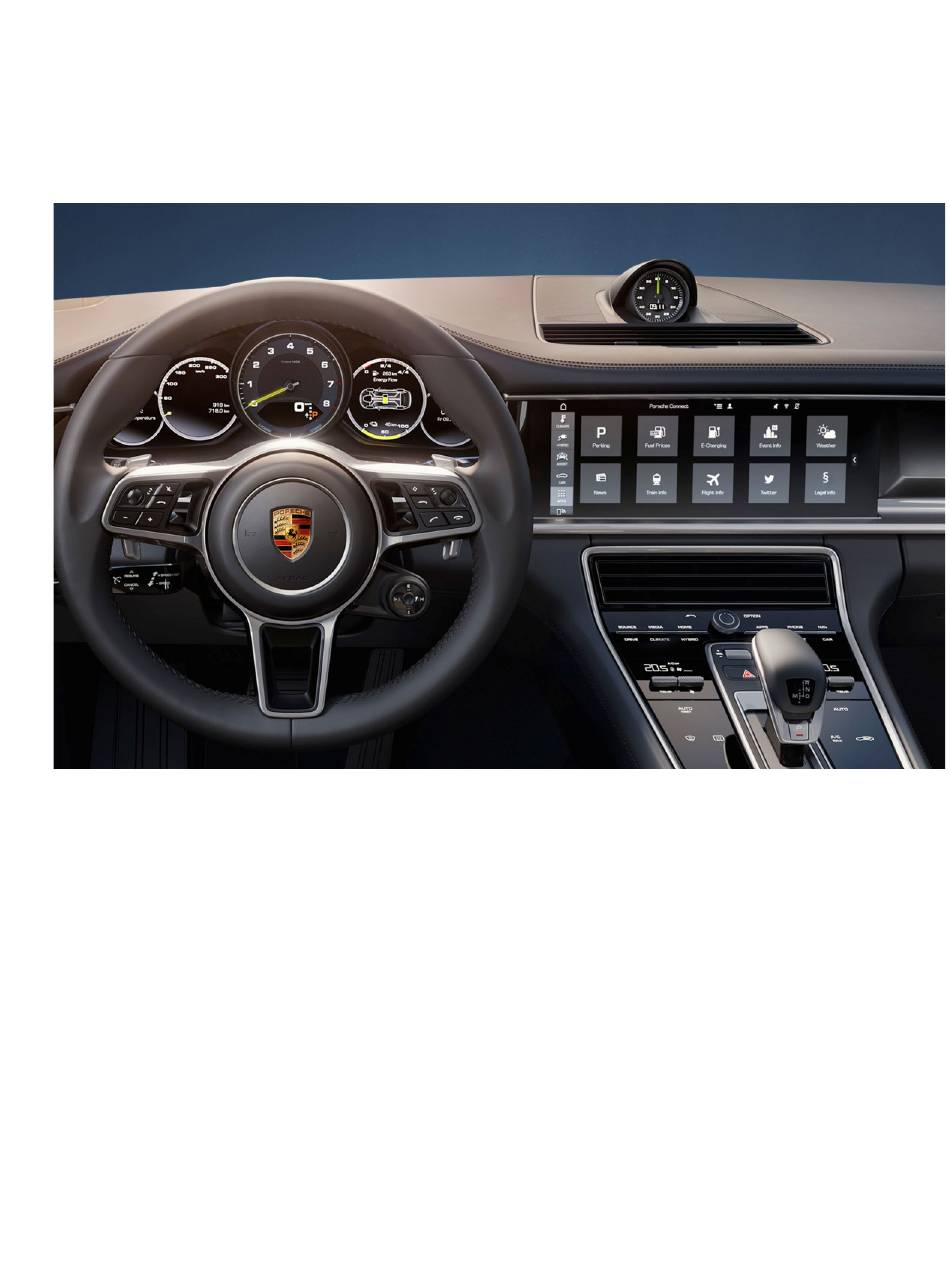

- Page 1 V20180327 Manual Version: E06PO28002 Installation Manual Product Name: PCM4.1 Compatibility: Compatible with all Porsche PCM41 which started in 2018 Macan, Cayenne, Cayman, 911 etc. Screen Size: 12.3" Display...
-
Page 2: Interface Functions
1. Description: The PCM4.1 interface is the latest line of product from SETMA for the Porsche PCM Systems (12.3" Screens). It is completely plug and play and very easy to install. All installation is done behind the HU making it very easy and quick to install. - Page 3 3. What's in the Box: ① ② ③ ④ ⑤ ⑥ Accessories Name Name main unit external keypad power harness RGB/AUX/MIC cable LVDS cable Video input wire...
- Page 4 4. DIP Settings (8 DIPs) b) E06PO28002 (Video Interface Box) DIP UP=Off DIP DOWN =ON Default External RGB enabled External RGB Disabled AV1 enabled AV1 Disabled AV2 enabled AV2 Disabled Not used Cam-CVBS in when reverse OEM display when reverse Should stay OFF 5.
- Page 5 b) E06PO28002...
- Page 6 6. Parameters: Name Parameters Video input amplitude 0.7Vpp ,75 Ω Sync amplitude 3~5Vpp,5K ,negative pulse Reverse-out: 12V,3A[max] Reverse-IN: threshold：3V Av1 , cam video amplitude. 0.7Vpp,75 Ω Av1 , cam format NTSC/PAL/SECAM automatic Power consumption 3.6W [0.3A @12V] Standby current < 10uA RGB input format RGB+ HV sync，VGA format，720P resolution Temperature...
