E06FO100001
This interface can insert high definition RGB navigation video, DVR,360 parking
system and reverse camera video onto Sync3 car screens. The car models are 2016
Lincoln, Ford mustang and some other models. The E06FO10001 has the built‐in GPS
module which drastically reduces the installation work. The E06FO... has
built‐in
Android navigation which can be installed with live‐traffic on‐line
navigation software, also phone mirror function to display the phone's information
onto car screen.
The OEM touch foil is used to control the installed navigation, phone mirror and
other functions.
The features are：

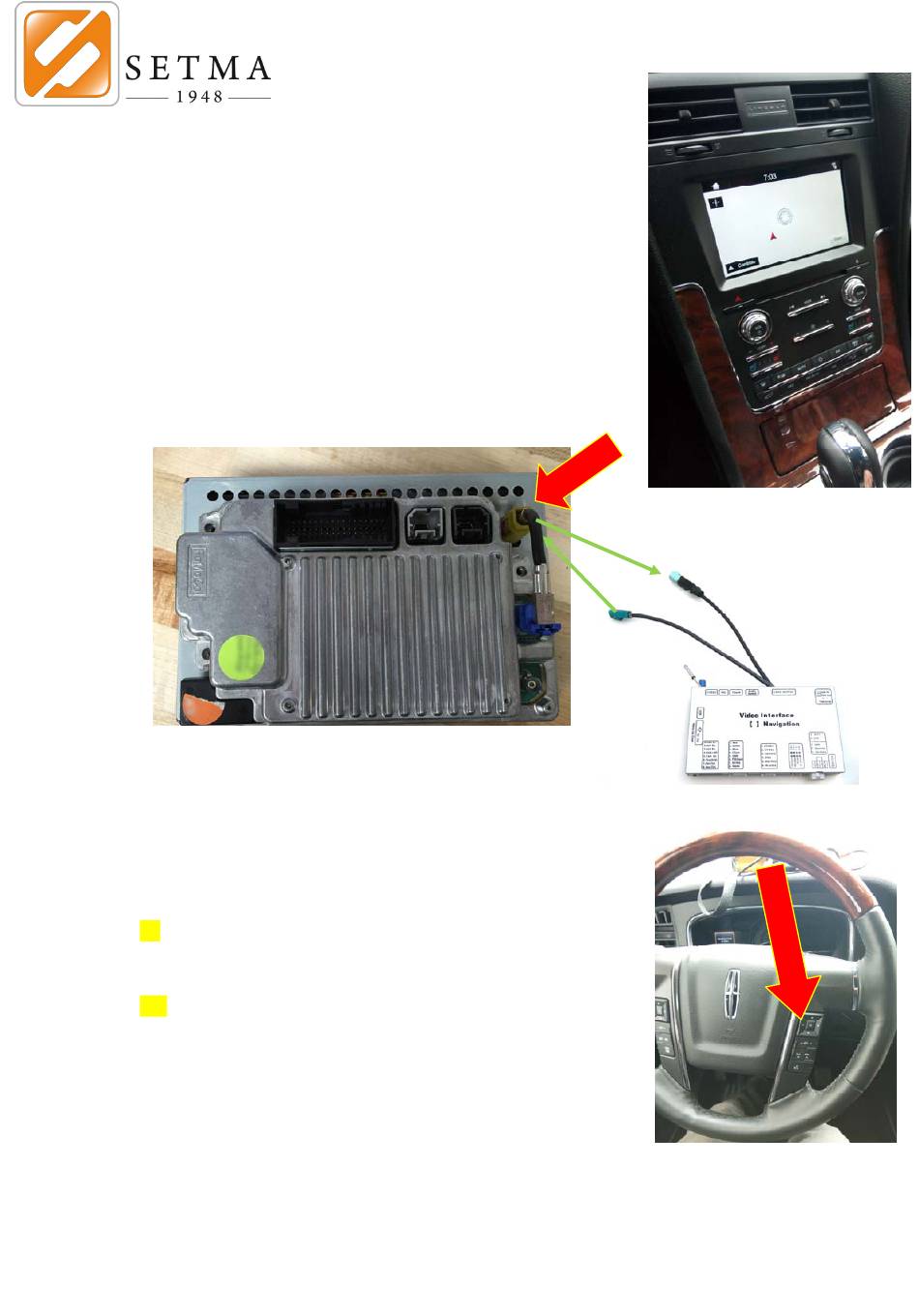

The OEM touch foil is used to control the installed navigation and android phone. With the LVDS cable installed between
the parts, the installer can immediately add hand‐touch android navi, DVR, 360
surround view and other video sources.
The Call‐Off is used long press to switch the inputs. Plug‐n‐play harness is used
behind the Head unit, the installer does not need to cut any wires.
E06FO10001 products: has Internal Digital navigation of winCE module, which makes the
picture very clearly displayed on OEM screen. it has mirror function of Android
phones and has MP5 players inside.
E06FO...‐ products: has Internal Digital navigation of Android module, which makes the
picture very clearly displayed on OEM screen. The internal wifi and GPS makes all
popular on‐line navigation like WAZE/google map works very nice. it has mirror
function of Android and iPhones and has MP5 players inside
1 / 10
Advertisement
Related Manuals for Setma E06FO100001
Summary of Contents for Setma E06FO100001
- Page 1 E06FO100001 This interface can insert high definition RGB navigation video, DVR,360 parking system and reverse camera video onto Sync3 car screens. The car models are 2016 Lincoln, Ford mustang and some other models. The E06FO10001 has the built‐in GPS module which drastically reduces the installation work. The E06FO... has ...
- Page 2 1． Connections: When the monitor is taken down from the car, the connectors behind are like this: The LVDS plug‐socket should be re‐inserted onto the plug behind the LCD, not the aluminum piece. The power harness should be inserted onto the power plug behind the monitor. USB for map update or MP5 files The map‐SD card External navigation or other high-definition video sources.
-
Page 3: Dip Settings
The CVBS input cable: External video input sockets： Yellow：AV1’s video input. White：AV2’s video input Red：reverse video input. Gray：IR output to control DVD/TV in inserted video mode. 2． DIP settings: DIP =ON side（DOWN） =OFF side（UP） 1 RGB Enabled RGB disabled 2, AV1 enabled AV1 disabled 3 AV2 enabled AV2 disabled 4 RGB=High definition RGB RGB input=1080p input with separate H.V sync. 5 Reverse signal（green wire=12V）switch to CAM Reverse signal（green wire=12V）switch to OEM video video 6 No function, should be at OFF. 7,8 No function, should be at OFF. 3. the 3 side key buttons The input box has 3 side keys, the installer may use it to tune the picture display, and touch function for the connected DVD or other devices. ... - Page 4 The Guide options: Guide‐CTRL：should be set to OFF in this model. Guide‐L：no function。 Guide‐R：no function. 5．E06FO10001‐product Manual （1） the Main Page. When the module is just started without SD card in the SD slot, the page will show a cross on white screen, the installer just click on the cross to make the touch calibration. When Calibration is done, the main page will be shown. The installer can click on each icon to go to their respective functions. ...
-
Page 5: Media Page
(4) Phone‐Link Page This module has very nicely tuned phone‐mirror function for android phones, also the touch function can also be delived. [this means, the user can touch the OEM foil to select the wanted music, go around on the map display, etc.] The module is based on winCE operation system. SETMA has another E06FO...‐product, which is based on android system, it can mirror both android and iPhone display onto car screen. 4.1 the software update of this module If the installer needs to upgrade the OS firmware, he should insert the ... - Page 6 3 FLASH 128MB 4 Storage of map SD card 5 OS WINCE6.0 CORE 6 Audio supported |ape|flac|aac|wav|mp3|wma|ogg| 7 Video supported |rmvb|mp4|3gp|mov|avi|divx|xvid|wmv|mpg|rm|flv|mkv| 8 Video decoder. QVGA>25 frame/sec 6 / 10 ...
-
Page 7: The Main Page
6．E06FO... product user’s manual FaN series has 4‐core high speed inside with 3G RAM and high‐sensitivity GPS receiver, all operation on it is just like an normal android phone, it is designed for car usage: It has internal phone‐mirror function, Android and iPhone display can both be mirrored to the car screen. It has internal wifi module, which can be connected to the hot‐spot of a phone, thus on‐line traffic information can be offered. Also on‐line navigation like WAZE can be run on it. Internal Bluetooth can be connected to the car with data communication, and internal audio of media/navigation can go to the OEM speakers. The user’s hands‐free function can also be used. - Page 8 (3) The music icon Click the music icon, then a page like this will be shown： This player can either play the music on the SD card, or the music in the USB disk. The user can re‐insert a USB disk onto the USB port any time. (4) The settings icon The installer can set the wifi, and Bluetooth of this module. He should enable the hot‐spot of his phone, and make the module connected to that spot by wifi. The installer can also set the language, display and many other feature inside this page. When ...
- Page 9 image mirroring, also the oem touch can be used to control the phone. The 3 icon is for iPhone connection. Only the picture of iPhone will be mirrored onto car screen. For Android phones, it is suggested to use the first icon, since this mode the phone is charged all the time. A．Android‐USB icon： 6.1 When the android phone is first connected, the picture on the right side will be shown, then the user connect the USB cable to the phone and the module by the USB port. The phone will ask the user if he accept “debug mode”. He selects OK, then the picture of the phone will be mirrored onto the car screen. ...
- Page 10 B． connecting to android phone with wifi mode： The display on the car screen is already self‐expanatory. Make the module connected to the hotspot of the phone, then the display will be mirrored and touch operation on car screen will be done to the phone as well. the first time the phone is connected to this module, please use the USB cable, since this module needs to push a software on the phone to make this 2 screens have the same UI. Then ...
