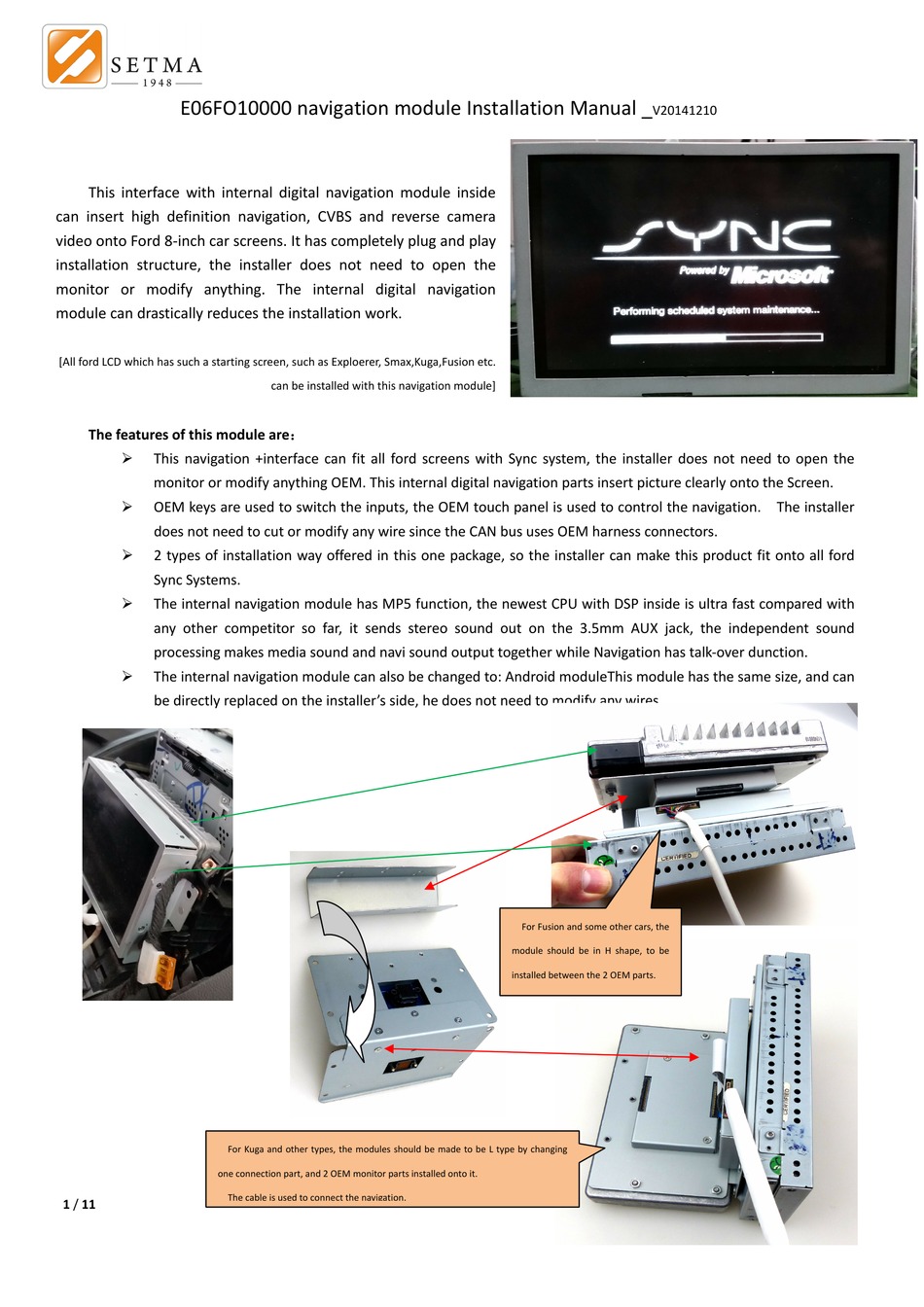

E06FO10000 navigation module Installation Manual _
This  interface  with  internal  digital  navigation  module  inside
can  insert  high  definition  navigation,  CVBS  and  reverse  camera
video onto Ford 8‐inch car screens. It has completely plug and play
installation  structure,  the  installer  does  not  need  to  open  the
monitor  or  modify  anything.  The  internal  digital  navigation
module can drastically reduces the installation work.
[All ford LCD which has such a starting screen, such as Exploerer, Smax,Kuga,Fusion etc.
The features of this module are:
This  navigation  +interface  can  fit  all  ford  screens  with  Sync  system,  the  installer  does  not  need  to  open  the
monitor or modify anything OEM. This internal digital navigation parts insert picture clearly onto the Screen.
OEM keys are used to switch the inputs, the OEM touch panel is used to control the navigation.    The installer
does not need to cut or modify any wire since the CAN bus uses OEM harness connectors.
2 types of installation way offered in this one package, so the installer can make this product fit onto all ford
Sync Systems.
The internal navigation module has MP5 function, the newest CPU with DSP inside is ultra fast compared with
any  other  competitor  so  far,  it  sends  stereo  sound  out  on  the  3.5mm  AUX  jack,  the  independent  sound
processing makes media sound and navi sound output together while Navigation has talk‐over dunction.
The internal navigation module can also be changed to: Android moduleThis module has the same size, and can
be directly replaced on the installer's side, he does not need to modify any wires.
For Kuga and other types, the modules should be made to be L type by changing
one connection part, and 2 OEM monitor parts installed onto it.
The cable is used to connect the navigation.
1 / 11
can be installed with this navigation module]
V20141210
For Fusion and some other cars, the
module  should  be  in  H  shape,  to  be
installed between the 2 OEM parts.
