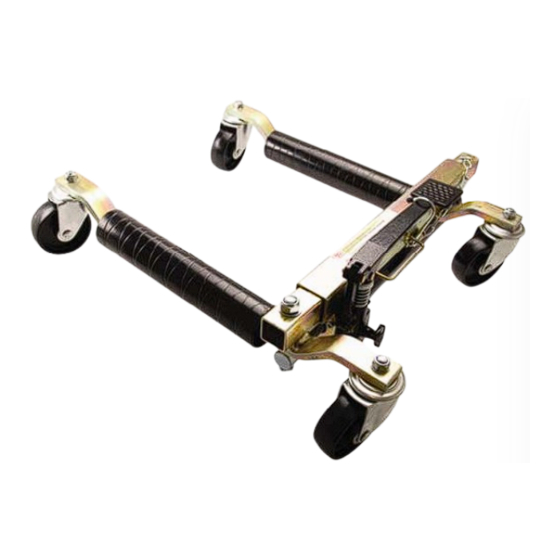

Hydraulic vehicle positioning jack, 600 kg

Advertisement

Hydraulic Vehicle Positioning Jack, 600 kg

SAFETY ADVICE

Read the complete manual prior to first use.
x
This positioning jack must only be used on flat and even ground. Never position the jack on steep ground.
Unintended movement could occur as soon as the jack lifts the tire from the ground.
x
The jack has a lifting capacity of 600kg per unit. Never exceed the jack's maximum capacity.
x
This jack must only be used on parked vehicles. DO NOT START THE ENGINE and/or drive with the jack in
use. This jack is meant to be moved manually.
x
Maximum lifting height is 20cm. Never exceed this maximum lifting height.
x
This jack was designed for applications on flat grounds. Never try to move it about obstacles, as small as
they might appear.
x
After the lifting process, remember to put in the locking bolt before you start working on the vehicle. When
you have finished, pull the locking bolt before opening the release mechanism.

INSTRUCTIONS

Lift

1. Press down the pedal to release its locking mechanism.
2. Pull the locking bolt out of its frame.
3. Open the release mechanism by turning the hand wheel counter-
clockwise.
4. Expand the jack far enough to fit it under your vehicle's tire. Position it
under the tire so that both lifting rolls touch the tire's running surface.
5. Put on the jack so that the unit is parallel to the side of the tire you wish
to lift.
6. Close the release mechanism by turning the hand wheel clockwise until
it fits firmly. Leave some space between tire and jack. This is very
important. In case of a poorly positioned jack, the tire might press
against the jack's axle and not against its rolls which might cause damage to the jack
7. To lift the tire, put one foot on the pedal and push it gently and steadily downwards until the tire has been
lifted off the ground a couple of centimeters. The jack has a firmer stand as lower the lifting height of the tire
actually is.
8. Secure the jack by safety pin.
9. Repeat the procedure with the other units
10. Move the lifted vehicle as desired.

Release the jack

1. To release the jack, pull the jack's locking bolt out of its frame.
2. Open the release mechanism by turning the hand wheel counter-clockwise.
3. The jack can be removed as soon as the tire loses contact with the jack's rolls.
