BGS technic 9784 Quick Start Manual

SPECIFICATIONS
Rated load: 2500 kg
Lifting height: 80 - 508 mm
Lifting height (rated load): 360 - 508 mm
Overall dimension (lowest position): 720 x 326 x 150 mm
Front wheel dimensions: Ø 60 x 43 mm
Rear wheel dimensions: Ø 60 x 30 mm
Lever dimensions: Ø 32 x 610 x 2.5 mm
Lever total length: 1173 mm
Lifting pad diameter: 110 mm
Lifting beam thickness: 5 mm
Side plate thickness: 5 mm
Diameter of pump piston shaft: Ø22 / Ø15 mm
Diameter of working piston shaft: Ø30 mm
Net weight: 31.5 kg
WARNING
• Read, study, and understand all warnings and operating instructions prior to use
• Do not overload this jack beyond the rated capacity.
• This jack is designed for use only on hard level surfaces capable of sustaining the load.
Use on other than hard level surfaces can result in jack instability and possible loss of load.
• This is a lifting device only. immediately after lifting, support the vehicle with jack stands
• Do not get under or allow anyone under the vehicle until it has been supported by jack stands.
• Do not move or dolly the vehicle while on the jack.
• Lift only on areas of the vehicle as specified by the vehicle manufacturer.
• Center the load on saddle prior to lifting.
• No alterations to the jack shall be made.
• Failure to heed these warnings may result in personal injury and / or property damage.
• Inspect before each use.
WARNINGS
Do not work under the
vehicle when you
are using the jack
BGS technic KG
Bandwirkerstr. 3
D-42929 Wermelskirchen

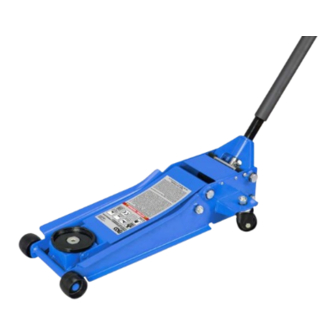

Floor Jack, hydraulic, 2.5 t
Ø 32 x 615 x 1.5 mm
Work under the vehicle
with jack stands only
Tel.: 02196 720480
Fax.: 02196 7204820
mail@bgs-technic.de
BGS 9784
Use wheel chocks
www.bgstechnic.com
