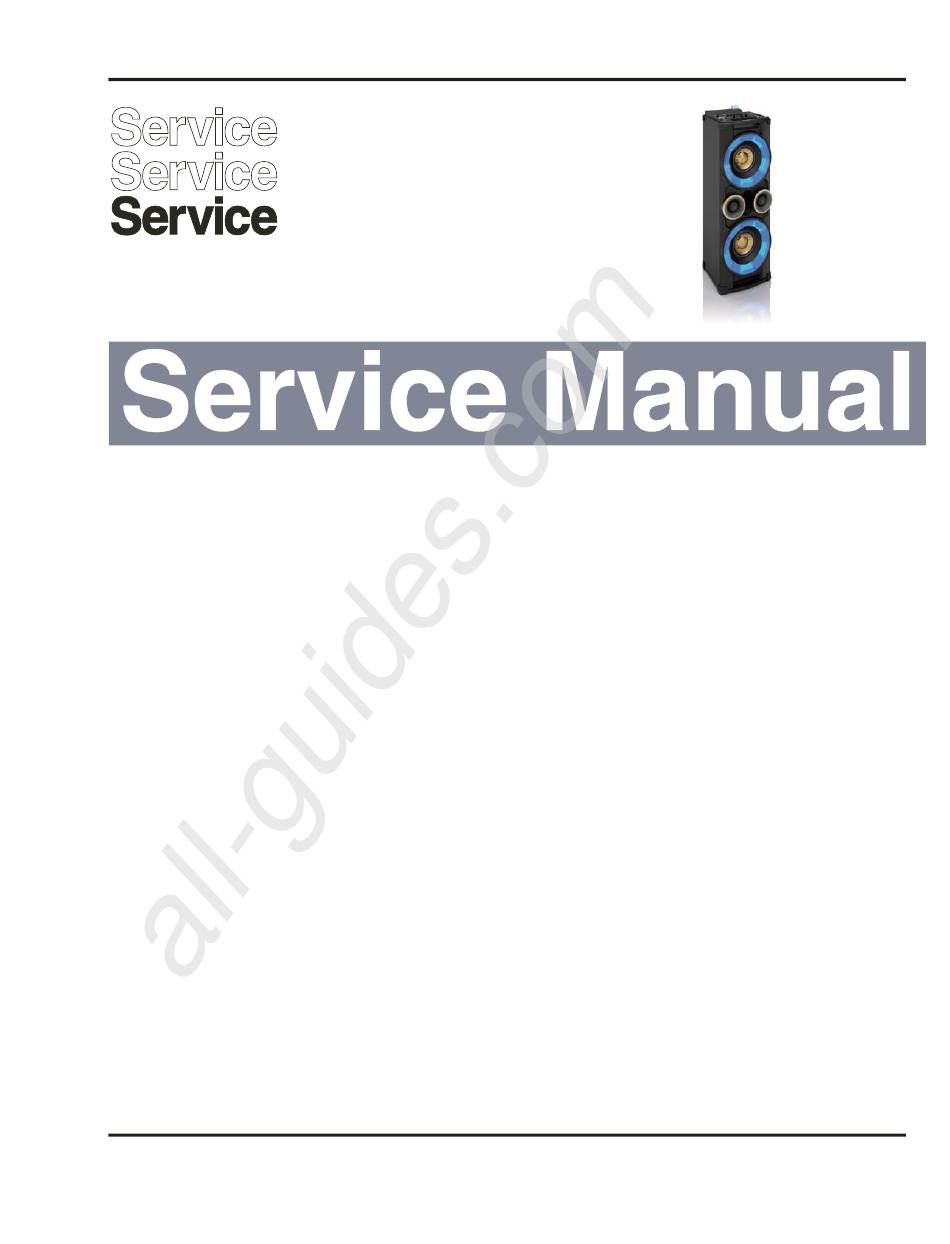

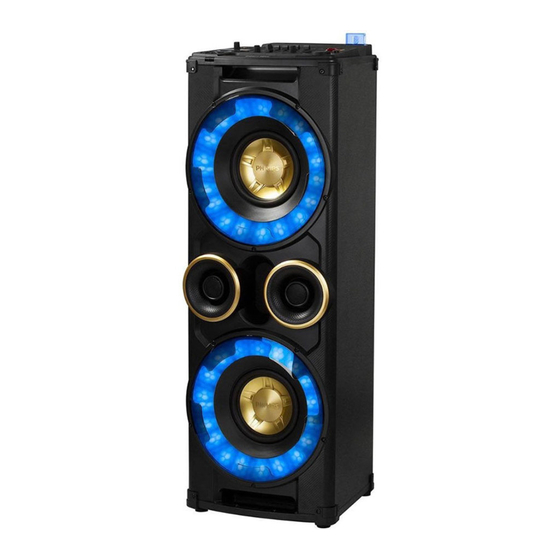

Mini Hi-Fi System
TABLE OF CONTENTS
Technical specification ...........................................................1-14
Safety instruction......................................................................2-1
Set Block diagram ....................................................................3-1
Set Wiring diagram ...................................................................4-1
Disassembly diagram ...............................................................5-1
Main and jack board
Circuit diagram.......................................................6-1...6-2...6-3
Layout diagram................................................................6-4..6-5
AMP
Circuit diagram........................................................................7-1
Layout diagram.......................................................................7-2
MCU
Circuit diagram...............................................................8-1...8-2
Layout diagram..............................................................8-3...8-4
Mechanical Exploded view.......................................................9-1
©
Copyright 2013 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without
the prior permission of Philips.
Published by LX 1
334
Service Audio
Version 1.0
All manuals and user guides at all-guides.com
board
board and CD board
Printed in The Netherlands
Subject to modi fi cation
NTRX500/
Chapter
all
3140 038 60830
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Philips NTRX500
Summary of Contents for Philips NTRX500
- Page 1 Mechanical Exploded view............9-1 © Copyright 2013 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.
- Page 2 Main Board Tuner Board MIC Board BT Board Jack Board CD Board Amp Board SMPS Board VERSION VARIATION Type /Versions: NTRX500 x/78 Service policy Board in used: MAIN BOARD VOLUME BOARD AMP BOARD DJ EFFECT BOARD JACK BOARD TUNER BOARD...
- Page 3 All manuals and user guides at all-guides.com NX5 NX7 ALL SH190 Contact List Descrpitopn Page...
- Page 4 Tested according to General Test Instruction refer to PHILIPS standary ( UAN -D1591 ) Measured according to PHILIPS standary ( UAN - L1059 ) unless other wise stated All not mentioned date, please refer to PHILIPS standary ( XUW - 0010 - JUNE 2001 ) DERIVED...
- Page 5 All manuals and user guides at all-guides.com TECHNIAL DESCRIPTION Total power 500W FOR NX5 1000W FOR NX7 ), FOUR INPUT SOURCE, ( Digital Sound Control ). IS ( Incredible Sound ) GENERAL PART OUTPUT stage Protection : Yes Temperature : Yes. Shorcircuit : Yes LoudSpeaker D.C.
- Page 6 All manuals and user guides at all-guides.com AUDIO SIGNAL PROCESSING MP3-USB Mini Hi Fi System with Digital Tuner ,Class AB Power Amplifier DSC ( Digital Sound Control ) Select AUX as input source with the following set conditions: Inject sine wave 2V at 1 KHz to L/R channels of AUX-IN socket. Set DSC to JAZZ(Flat) mode and switch off DBB.
- Page 7 All manuals and user guides at all-guides.com AUDIO SIGNAL PROCESSING MP3 - USB Mini Hi Fi System with Digital Tuner , 1CDCfor NX5 NX7 ALL IS ( Incredible Sound ) Select AUX as input source. Inject sine wave 2V at 1kHz to AUX-IN socket, one channel at a time (input level 500mV for /37,2V for /55 ). Set DSC to JAZZ ( Flat ) mode and switch of DBB, OSM &...
- Page 8 All manuals and user guides at all-guides.com TECHNIAL DESCRIPTION AUX modle GENERAL PART Description Specification Output power = , 1 Khz ) 125W± 1 Db(NX5) 250W± 1 Db(NX7) Channel Unbalance < = +/- 3 dB THD + Noise ( 0dB, 1Khz ) <=2% Channel Crosstalk ( ( 0dB, 1 KHz ) >= 40dB...
- Page 9 All manuals and user guides at all-guides.com TECHNIAL DESCRIPTION SOFTWARE IMPLEMENTED CLOCK / TIMER FUNCTION WITHOUT 32.768KHZ QUARTZ OSCILLATOR. GENERAL PART Timer Setting Clock and Timer Timer Wakeup Mode CD USB or Tuner Remarks Time Setting 12hr for /37 version, 24hrs for other version. Volume at Wakeup Last Setting Nom : 1 sec/day...
- Page 10 All manuals and user guides at all-guides.com 1-10 TECHNIAL DESCRIPTION See also SH 190 USB Audio Module (300605) Measurment are directly done at the coonector on the board GENERAL PART Measurement are directly done at the connector on CDC board Description Specification Output Resistance...
- Page 11 All manuals and user guides at all-guides.com 1-11 TECHNIAL DESCRIPTION GENERAL PART WAVE RANGE TOLERANCE TUNING GRID FM( 55/37 ) 87.5 - 108.00 MHz QUARTZ PRECISION 100 kHz FM( 12 ) 87.5 - 108.00 MHz 50KHZ AM (55/37) 530 - 1700 QUARTZ PRECISION 10 kHz AM (12)
- Page 12 All manuals and user guides at all-guides.com 1-12 TECHNIAL DESCRIPTION Bluetooth Function GENERAL PART Bluetooth Version : Ver2.1 + EDR Receive A2DP: Transmit A2DP: Remote Controlled Receive HSP Noise Reduction System INDICATORS Bluetooth Flashing Display ELECTRICAL DATA Bluetooth at Module level: Mobile Phone Unit Frequency Response...
- Page 13 All manuals and user guides at all-guides.com 1-13 TECHNIAL DESCRIPTION CD + MP3 - Part Specifications (CD MECHAISM DA11VF OF SANYO ) 1DISC for NX5 NX7 ALL Input Output Motor Logic control Active components SA5888 BU9543 Signal processsing D/A converter HF-preamplifier Servo processor Active components...
- Page 14 All manuals and user guides at all-guides.com 1-14 VERSION OVERVIEW (NX5 NX7) ALL APPROBATION TUNER AC SUPPLY DEST SURR MAINS SAFETY Wave RANGE GRID AERIAL SOCKET AERIAL SUPPLIED SOC. CORD . SPK. VOLTAGE EN60065 110-127V FM 87.5-108MHz MW 50kHz CLASS II 75 Ohm Coaxial 75 Ohm Pigtail Switched...
- Page 15 All manuals and user guides at all-guides.com 2.Safety instruction 1. General safety 2.Laser safety Safety regulations require that during a repair: This unit employs a laser. Only qualified service personnel . Connect the unit to the mains via an isolation transformer. may remove the cover, or attempt to service this device .
- Page 16 All manuals and user guides at all-guides.com BLOCK DIAGRAM...
- Page 17 All manuals and user guides at all-guides.com WIRING DIAGRAM...
- Page 18 All manuals and user guides at all-guides.com OUTER 1) Remove 46 screws A/B/C/D/E/F/G as indicated to loosen the top/front/bottom plate. Dismantling of the CD part and PCB Board 1) Remove 8 screws H&I as indicated to loosen the CD part. 2) Remove 4 screws J as indicated to loosen the CD Board.
- Page 19 All manuals and user guides at all-guides.com CIRCUIT DIAGRAM - MAIN BOARD AND JACK BOARD...
- Page 20 All manuals and user guides at all-guides.com...
- Page 21 All manuals and user guides at all-guides.com...
- Page 22 All manuals and user guides at all-guides.com PCB LAYOUT - MAIN BOARD...
- Page 23 All manuals and user guides at all-guides.com PCB LAYOUT - JACK BOARD...
- Page 24 All manuals and user guides at all-guides.com CIRCUIT DIAGRAM - AMP BOARD...
- Page 25 All manuals and user guides at all-guides.com PCB LAYOUT - AMP BOARD...
- Page 26 All manuals and user guides at all-guides.com CIRCUIT DIAGRAM - MCU BOARD AND CD BOARD...
- Page 27 All manuals and user guides at all-guides.com CIRCUIT DIAGRAM - MCU BOARD AND CD BOARD...
- Page 28 All manuals and user guides at all-guides.com PCB LAYOUT - MCU + CD BOARD...
- Page 29 All manuals and user guides at all-guides.com PCB LAYOUT - MCU + CD BOARD...
- Page 30 All manuals and user guides at all-guides.com EXPLODED VIEW...
