unilab Retro Basic Manual page 3

Advertisement

Ranger

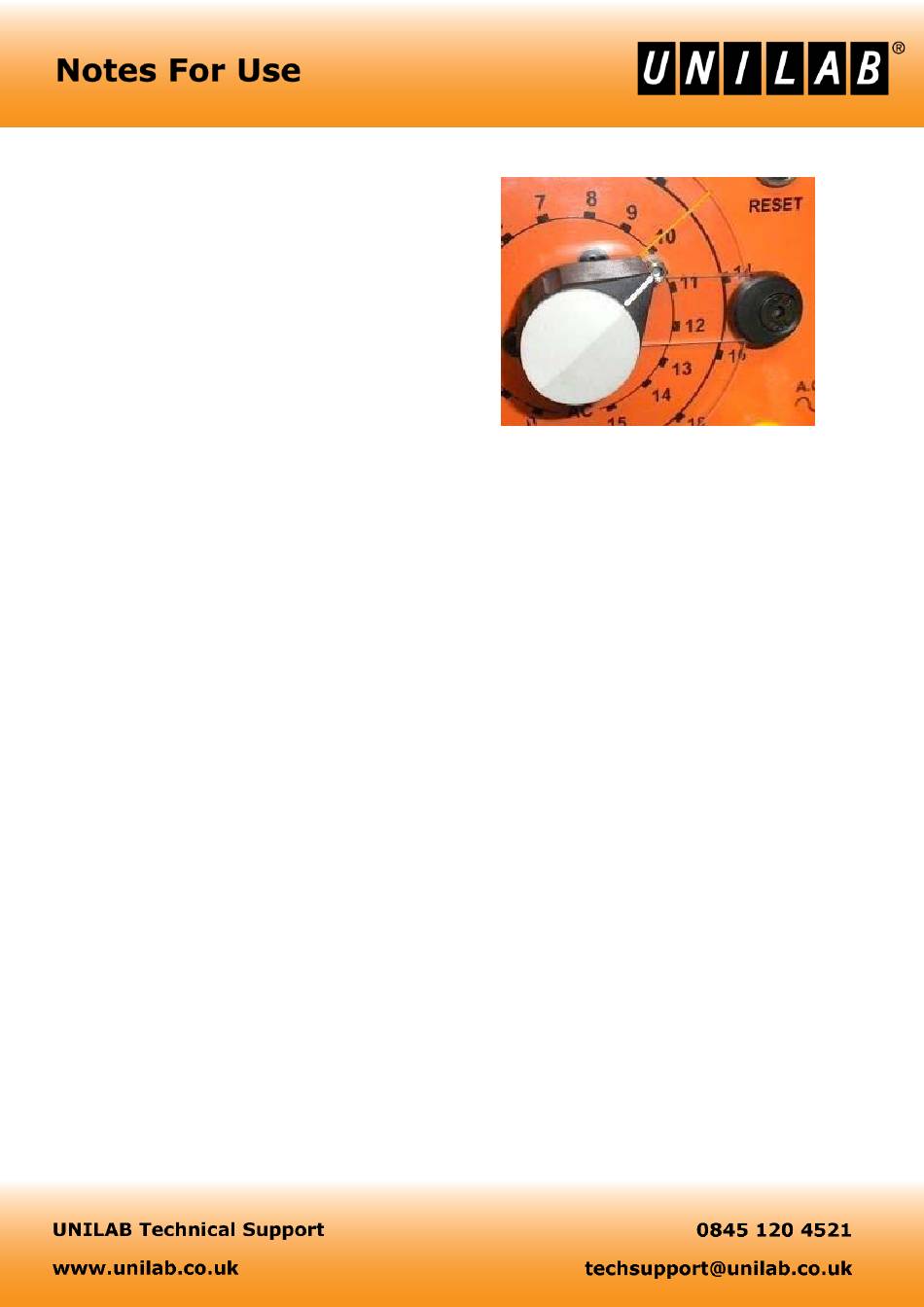

A hexagon key is used to clamp the clear Perspex
disc. The yellow line on this disc indicates the
maximum AC and DC voltage available. The
control knob can be turned to adjust the voltage
output from 0 to the preset maximum.
The DC output is higher due to the internal
smoothing capacitor (4700uF).
NOTE: AC and DC outputs are available
simultaneously, but the total current should be
limited to 8 amps.
Warnings
For your safety, this product should be used in accordance with these instructions,
otherwise the protection provided may be impaired.
EMC
This equipment is Class A according to the EMC standard EN 55011 and is intended for use
in a non-domestic environment only.
Do not open or remove covers or panels. Repairs and service may only be carried out by
our repair agent, otherwise the warranty may be void.
Use only the 3-core mains cable supplied with the unit. If the mains cable is replaced, the
rating of the replacement must be the same or better than the original.
The unit must be earthed at all times. The unit is earthed/grounded through the 3-core
mains lead, so no additional earth connection is required.
Always position the power supply so that it can be disconnected from the mains, if an
emergency arises.
This unit is intended for use in DRY conditions. Avoid spillage of water and other liquids on
to the unit. If spillage occurs, disconnect the mains supply.
There is no specific requirement for insulation of external circuits as they cannot become
hazardous live, as a result of connection to this unit. Limit the length of any connecting
leads to 3 metres.
