Dytran 3255C Series Operating Manual

Charge mode accelerometer

OG3255C

REV A ECN 5673 02/06/09

REV B ECN 11862 07/22/15

D y n a m i c T r a n s d u c e r s a n d S y s t e m s

2 1 5 9 2 M a r i l l a S t . • C h a t s w o r t h , C A 9 1 3 1 1 • P h o n e 8 1 8 - 7 0 0 - 7 8 1 8

w w w . d y t r a n . c o m • e - m a i l : i n f o @ d y t r a n . c o m

OPERATING GUIDE

MODEL 3255C

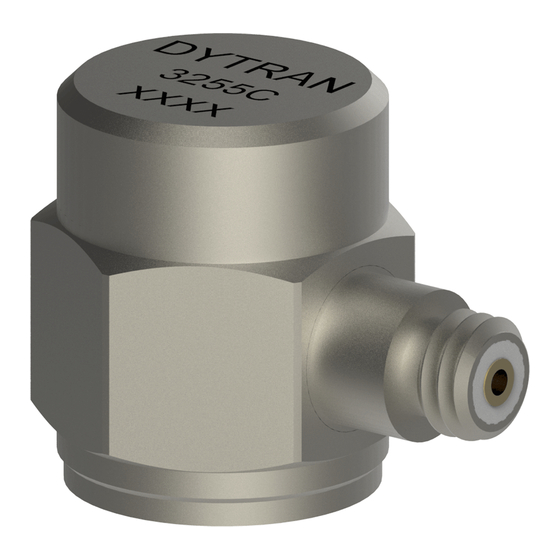

CHARGE MODE ACCELEROMETER

SIDE CONNECTOR, HERMETICALLY SEALED

NOTE:

Series 3255C features hermetically sealed construction.

Hermeticity is obtained by all-welded construction and

glass-to-metal sealed connector. Case material is titanium.

This guide contains:

1) Operating instructions, Model 3255C

2) Outline/installation drawing, Model 3255C

3) Specifications, Model 3255C

Table of Contents

Need help?

Do you have a question about the 3255C Series and is the answer not in the manual?

Page 1 D y n a m i c T r a n s d u c e r s a n d S y s t e m s 2 1 5 9 2 M a r i l l a S t . • C h a t s w o r t h , C A 9 1 3 1 1 • P h o n e 8 1 8 - 7 0 0 - 7 8 1 8 w w w .
Page 2 INTRODUCTION The force from acceleration (vibration or shock) acting upon the mounting base, is The Dytran Model 3255C is a super light transferred to the seismic mass through the weight charge mode accelerometer with 15 pC/g crystals, stressing the crystals in shear mode and sensitivity.
Page 3 Using equation 2 and making the appropriate against the mounting surface. Check to see that substitutions and solving for the output voltage of the mating surfaces are meeting properly, i.e., that the amplifier in terms of input charge, amplifier they are meeting flush and that there is not an loop gain, and input and feedback capacitance we angle formed between the two surfaces indicating have:...
Page 4 The frequency at which the sensitivity may Should a problem be encountered with the increases or decrease by 5% is approximately operation of the instrument, contact the factory for 5,000 Hz. The accelerometer is usable above this trouble shooting advice. Often our service frequency but to use it above 5,000 Hz, it must be engineers may point out something which may calibrated at the specific frequencies of intended...
