Dytran 3049E Series Operating Manual

Miniature iepe accelerometers

OG3049E.DOC

Rev B 17 APR 06

MINIATURE 3049E SERIES IEPE ACCELEROMETERS

NOTE: IEPE is an acronym for Integrated Electronics Piezoelectric types of low impedance voltage mode sensors

with built-in amplifiers operating from constant current sources over two wires. IEPE instruments are compatible

with most other manufacturers' comparable systems.

D y n a m i c T r a n s d u c e r s a n d S y s t e m s

2 1 5 9 2 M a r i l l a S t . • C h a t s w o r t h , C A 9 1 3 1 1 • P h o n e 8 1 8 - 7 0 0 - 7 8 1 8

w w w . d y t r a n . c o m • e - m a i l : i n f o @ d y t r a n . c o m

OPERATING GUIDE

10 mV/g AND 100 mV/g

HERMETICALLY SEALED AND CASE ISOLATED

NOTE:

Series 3049E Series features hermetically sealed construction

and electrically isolated case for "off-ground" performance.

Hermeticity is obtained by all-welded construction and glass-to-

metal sealed connector. Case material is titanium. Signal

ground return is electrically isolated from the mounting surface.

This guide contains:

1) Operating Instructions, Series 3049E Series.

2) Outline/installation drawing, Series 3049E Series

3) Specifications, Series 3049E Series

4) Paper, "Low Impedance Voltage Mode (LIVM) Theory and

Operation"

Table of Contents

Need help?

Do you have a question about the 3049E Series and is the answer not in the manual?

Page 1 10 mV/g AND 100 mV/g HERMETICALLY SEALED AND CASE ISOLATED NOTE: Series 3049E Series features hermetically sealed construction and electrically isolated case for "off-ground" performance. Hermeticity is obtained by all-welded construction and glass-to- metal sealed connector. Case material is titanium. Signal ground return is electrically isolated from the mounting surface.
Page 2 SPECIFICATIONS MODEL SERIES 3049E Series IEPE ACCELEROMETERS SPECIFICATION VALUE UNITS PHYSICAL WEIGHT 3049E, 3049E2 grams 3049E1, 304E3 grams SIZE, HEX x HEIGHT (all models) .39 x .54 inches MOUNTING PROVISION 3049E, 3049E2 10-32 integral stud x .15 inch 3049E1, 3049E3...

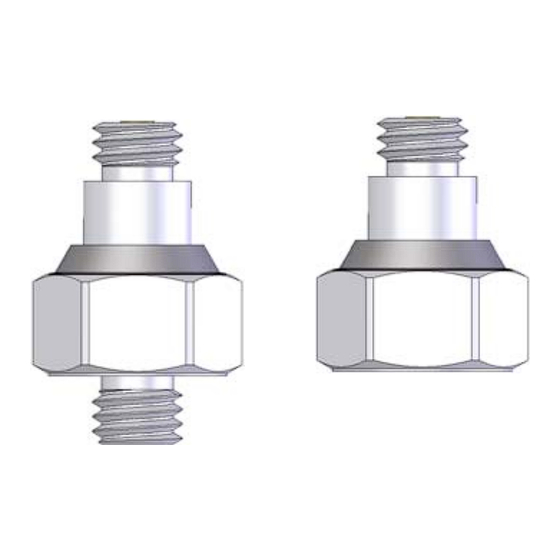

Page 4 INTRODUCTION CURRENT BIAS MONITOR REG DIODE METER SENSOR COUPLING CONNECTOR The Dytran Model 3049E Series consists of four accelerometers, differing in sensitivity and PIEZO CERAMIC mounting configuration. Stud mount versions are SEISMIC CABLE ELEMENT Model 3049E (10mV/g), and 3049E2 (100mV/g).
Page 5 (Refer to Outline/Installation drawing 127- 3049E) To install Model 3049E series accelerometers, it is necessary to prepare (or find) a flat mounting area NOTE: Do not use a pliers or vise grips on the of approximately 0.5 inch diameter.
Page 6 5% is approximately 10,000 instrument in a 200°F to 250°F oven for one hour to Hz, the frequency to which the 3049E Series series is remove all traces of the solvent. calibrated. The accelerometer is usable above this...
