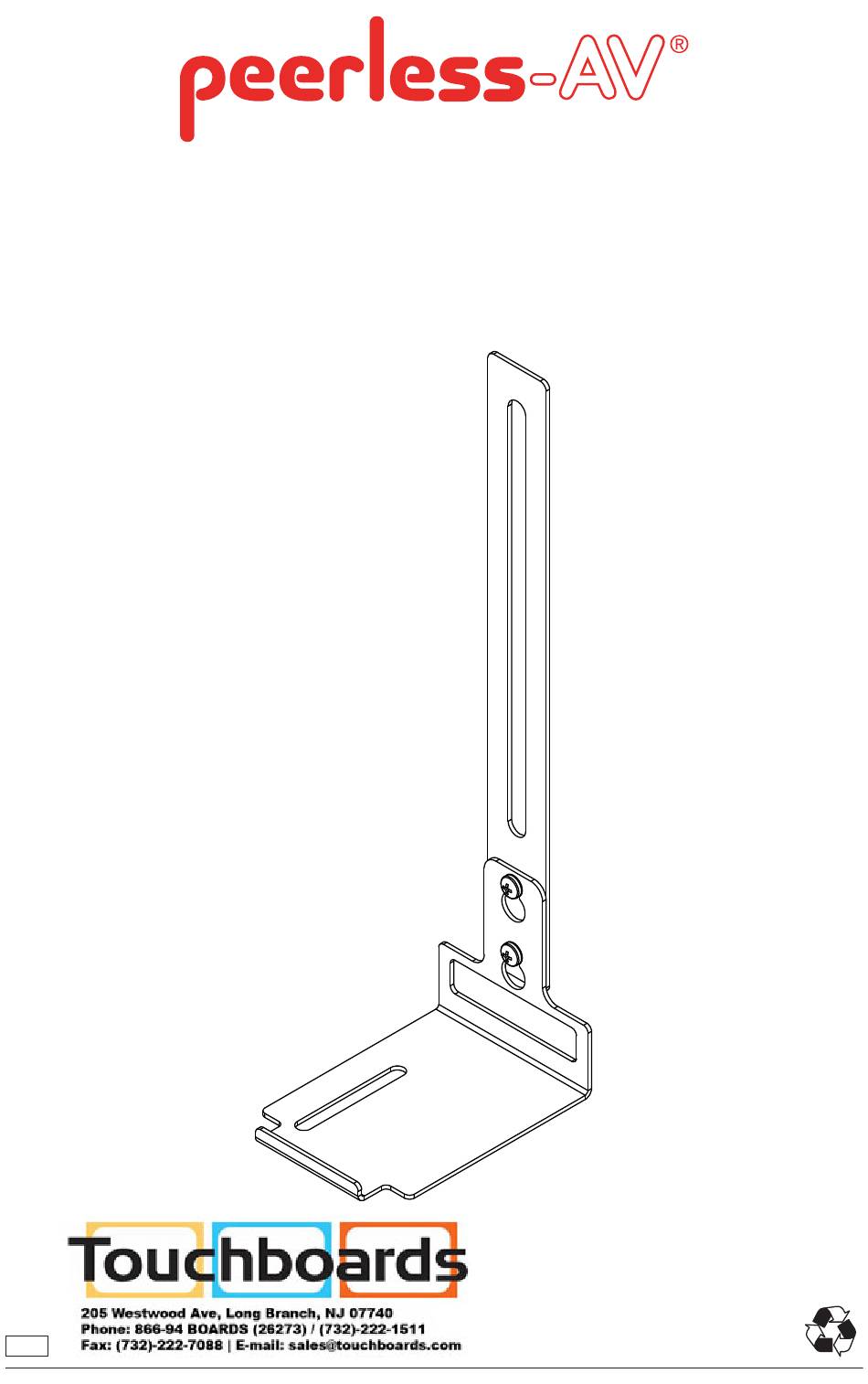

- Page 1 HDS-ASR1 2013-02-19 #:180-9046-1...
- Page 2 Tools Needed for Assembly. WARNING ENG - Before installing make sure the supporting surface will support the combined load of the equip- ment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity.
- Page 3 Parts (Before beginning, make sure you have all parts shown below). Parts List HDS-ASR1 Qty. Part # Description shelf 180-1217 adapter bracket 180-1218 #10 x 1-1/2" wood screw 510-9163 M5 x 6 mm security screw 520-1114 nylon washer 540-9439 1/4-20 x 3/8" security screw...
- Page 4 Wood stud wall. Attach to display 1a-1 1b-1 1a-1 Use stud fi nder to locate and mark stud center line. 1a-2 Level shelf. Mark mounting holes on stud center line. 2013-02-19 #:180-9046-1...
- Page 5 1a-3 1.5" (38mm) 1/8" 1/8" (3mm) (3mm) Drill mounting holes into supporting surface (1.5" (38 mm) minimum depth required). Mounting hole must center on stud. 1a-4 Install wood screws provided. Position shelf on screws. Level shelf and tighten screws. 1/8" (3mm) Maximum 80 in.
- Page 6 1b-1 Insert screws into bracket as shown. Position shelf on screws. Tighten screws. Maximum 80 in. • lb (9 N.M.). 1/8" (3mm) Tighten D (2) 2013-02-19 #:180-9046-1...
- Page 7 1b-2 Remove bottom display mounting screw. Install shelf assembly between display and adapter. 2" (51mm) MINIMUM 2013-02-19 #:180-9046-1...
- Page 8 Adjust receiver (not included). Tighten screw. Maximum 80 in. • lb (9 N.M.). 2013-02-19 #:180-9046-1...
- Page 9 Consult HDS-WHDI100 user guide to complete installation. 2013-02-19 #:180-9046-1...
-
Page 10: Limited Warranty
This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, ® distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV connection with the sale of any Peerless-AV ®... - Page 11 This page intentionally left blank.
- Page 12 Peerless-AV 2300 White Oak Circle Aurora, IL 60502 Email: tech@peerlessmounts.com Ph: (800) 865-2112 Fax: (800) 359-6500 www.peerless-av.com © 2013, Peerless Industries, Inc.
