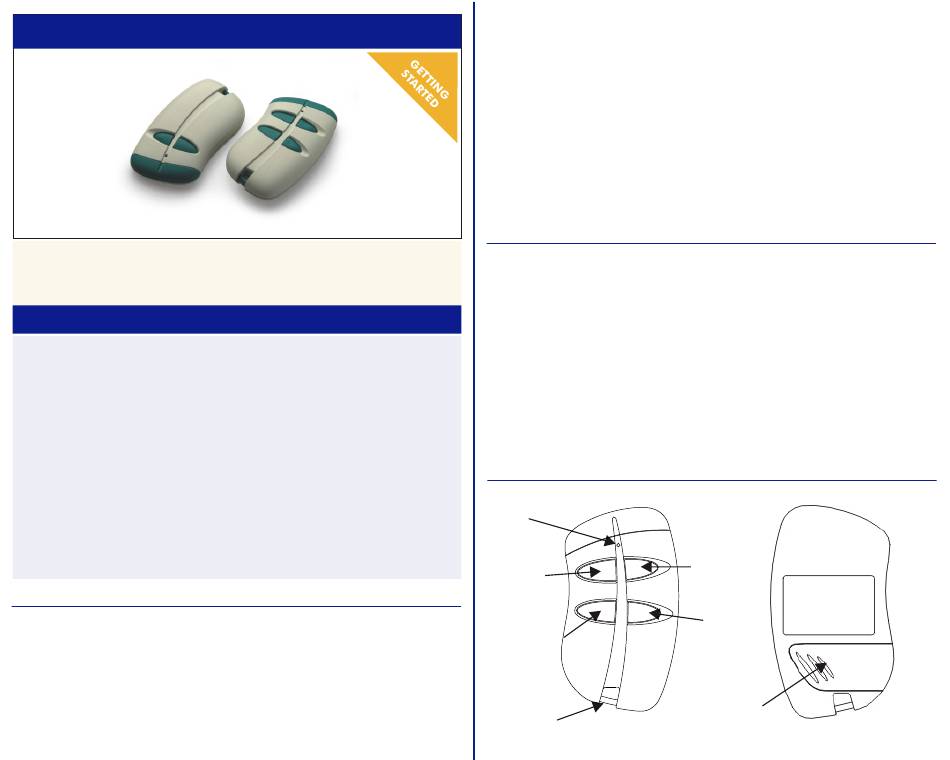

RCS - 433LBT Series Getting Started

RCS - 433LBT
Stand alone
RCS
Thank you for choosing a RCS product. You are recommended to
read this manual carefully before installing the product.
CONTENTS
1 - TRANSMITTER INTRODUCTION
1A - General information
1B - Technical specifications
1C - Main features
1D - Models
2 - CODING
3 - MEMORIZATION
4 - BATTERY ACCESS
5 - TROUBLESHOOTING
1A - General information
The radiocontrol RCS-433LBT has been designed for the control of
automatic closing systems and anti-burglar systems thanks to its very high
security coding system. (KeeLoq ® Hopping code). The code sent by the
transmitter changes at each activation, avoiding any scanning and copying
risk. A special algorithm allows to keep synchronysed transmitter and
receiver. The operating frequency is 433,92 MHz.
The receiver which makes the activation, once received the transmitter
code, has to be connected during the installation to the device to control
( gate, rolling shutters, sun-blinds, anti-burglar appliances, lighting ).
Each transmitter is identified by a serial number which allows both single
and multiple memorizations on the corresponding block receiver
( RCS-433BMR)
The transmitter ( or its different keys ) can also be stored into different
receivers and hence can do more functions.
In order to use the unused keys of the transmitter, it is enough to connect the
dedicated receiver to the mechanism to drive ( i.e. electrolock of a
pedestrian gate, a buzzer, etc. ).
The product fully complies with the European Directives 99/5/CE,
89/336/CEE, 73/23/CEE and with the Part 15 of FCC Regulations.

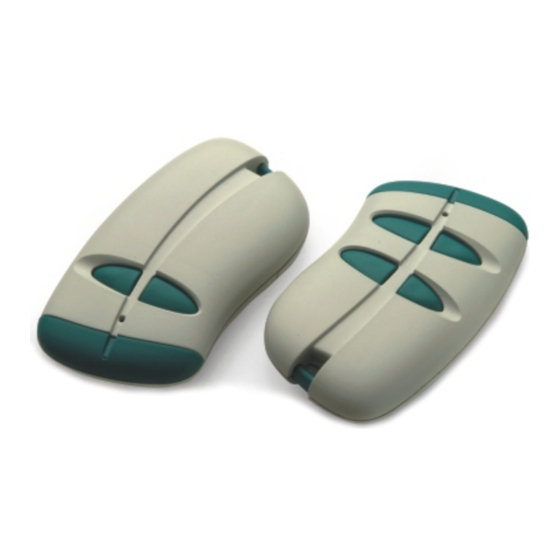

RCS-433LBT2
RCS-433LBT4
RCS-433LBTM
1B - Technical specifications
Number of keys:
Supply :
Battery life:
Current consumption :
Operating frequency :
Code combinations :
Modulation :
Rated e.r.p. :
Range in free space:
Operating temperature:
Overall dimensions:
Weight:
1C - Main features
Red
LED
Push-button
A
Push-button
Key holder
ring
Push-button
Push-button
C
2 / 4
1 Alkaline Battery 12V type 23A
12 - 18 months
25 mA
433.92 MHz
64
2
AM / ASK
50 - 100 µW
60 - 120 yd
-20 ÷ +55 °C
3.26 x 1.88 x 0.62 in
20 gr.
B
D
Battery
door
