Table of Contents
- 1 Preparing the # DU-Tx5/7-PLUS Handpieces.
- 2 Preparing for Use with Live Steam Locos.
- 3 Using the # DU-Tx5-PLUS with a 'Centre Off' ESC.
- 4 Using the # DU-Tx5-PLUS with an RCS 'Low Off' ESC.
- 5 Using the #DU-Tx5-PLUS.
- 6 Using the #DU-Tx7-PLUS.
- 7 Connecting Servos for Rx AB-Rx V2-TM.
- 8 Using RIC Switches.
- Download this manual
Advertisement
Table of Contents
Related Manuals for RCS DU-Tx5-PLUS
Summary of Contents for RCS DU-Tx5-PLUS
- Page 2 Refer to Manual Bind Rx instructions for how to bind etc. Remove Bind Plug before using Rx. Directional Constant brightness lighting. RCS # AB-Rxv2-EM/TM Auto bind RX’s have lighting outputs. # LM-0034E/T very Basic RX’s do not. For Live Steam you can use a “Y” cable to drive an R/C switch such as the # MRW-SSLS on Ch # 3 as well as the Reverser servo.
- Page 3 R/C being fully down. Ensure the reverser knob is in the middle. Turn ON the # DU-TX5-PLUS hand piece and then the loco. Once steam has been raised, select the direction of valve gear with the CH # 3 reverser knob.

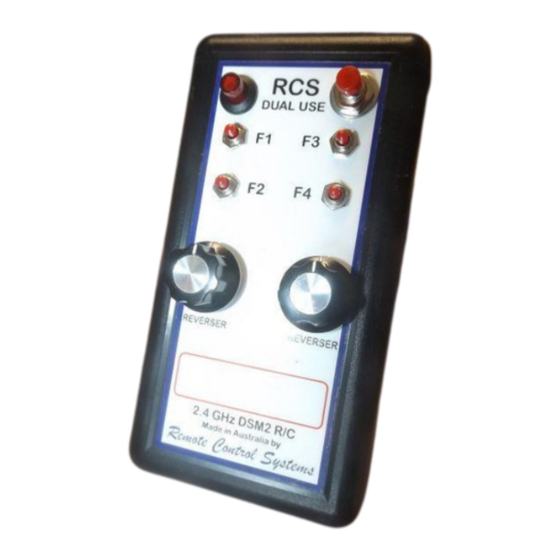

- Page 4 Operation is essentially the same as for Live Steam control. See page # 3 for pics and text. This # DU-TX5-PLUS hand piece is a 5 channel stick R/C in a smaller case. Make sure the large throttle knob is fully CCW (OFF) and small knob is centered before you switch the system on.
- Page 5 These two knobs on top row control Ch # 2 on the Left and Ch # 4 on the right. The # DU-Tx5-PLUS is mostly used with Live Steam locomotives. The two extra knobs provide two fully proportional outputs on Ch # 2 & Ch # 4. All knobs do have a centre detent.
- Page 6 – 6 – USING THE #DU-Tx7-PLUS RCS # DU-Tx7-PLUS THESE INSTRUCTIONS REFER TO THE 2.4 GHz 4 CHANNEL R/C. LAYOUT OF THE # DU-Tx7 TRANSMITTER HAND PIECE. The case front is similar to the # DU-Tx5 shown earlier. There are two pushbuttons on each of Ch # 2 & Ch # 4.
- Page 7 – 7 –...
- Page 8 – 8 –...
