P.O Box 578 Casino, NSW, 2470 Australia
Phone: International ++614 2902 9083
Australia (04) 2902 9083
Website:
http://rcs-rc.com
E mail:
info@rcs-rc.com

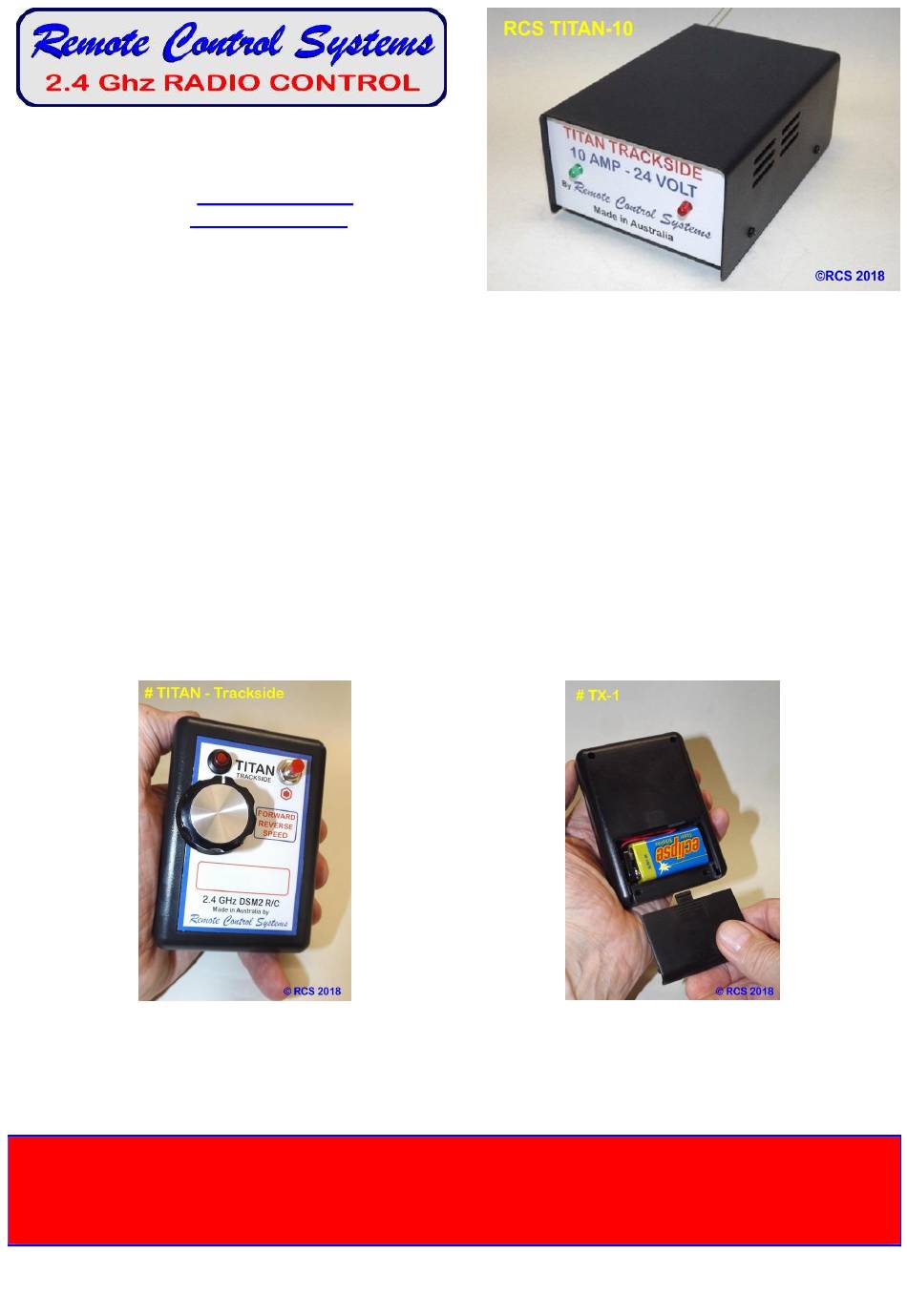

TITAN-TRACKSIDE-10
2.4 GHz Digital Proportional R/C
TABLE OF CONTENTS PROVIDED IN INSTRUCTIONS.
Page # 1
Introduction.
Page # 2
Page # 3
Page # 4
Thank you for purchasing this 2.4 GHz DSM2 single function Trackside R/C system.
TITAN-TRACKSIDE IS FOR CONTROLLING MODEL RAILWAY LAYOUTS FROM TRACKSIDE BY R/C.
It is suitable for use with all scales. Maximum voltages allowed. Must be regulated DC.
"N" scale = 12 volts. "H0" scale use12 – 15 volts & Large scale use up to 24 volts.
Operators are required to supply and use suitable fast blow fuses on both the input and output.
"N" scale = 2 amps. "H0" scale up to 3 amps. Large scales up to 6 amps.
The base unit has a PWM motor drive output which may not be suitable for DCC equipped locos.
The # CRE-57091 PWM-Linear DC filter is available to remove the PWM element.
N.B. Removing the PWM factor may result in slightly less smooth starting & stopping for some locos.
INSTRUCTION MANUAL
THESE INSTRUCTIONS REFER SPECIFICALLY TO THE TITAN-TRACKSIDE HANDPIECE.
WHEN USED FOR TRACKSIDE R/C OR BATTERY R/C
REMOVE REAR OF TTC TO INSERT
1 X 300º KNOB CONTROLS SPEED & DIRECTION.
THE 9 VOLT BATTERY.
RED BUTTON USED FOR BINDING OR SOUND TRIGGER.
LED BLINKS WHEN BATTERY LOW.
THE
TITAN-TRACKSIDE-10
IS GUARANTEED FOR ONE YEAR.
TO AVOID CONFUSION WITH OTHER OPERATORS, WE SUGGEST YOU MARK THE TX TO SHOW WHICH
TRACK CAB OR BATTERY R/C LOCO IT IS OPERATING.
CAUTION
DO NOT ATTEMPT TO ALTER THE TUNING OF THE RADIO EQUIPMENT.
DO NOT USE RADIO CONTROL EQUIPMENT IN THUNDERSTORMS.
CHILDREN UNDER 12:
ADULT SUPERVISION RECOMMENDED DURING USE.
Advertisement
Table of Contents
Related Manuals for RCS TITAN-TRACKSIDE-10
Summary of Contents for RCS TITAN-TRACKSIDE-10
- Page 1 2.4 GHz Digital Proportional R/C TABLE OF CONTENTS PROVIDED IN INSTRUCTIONS. Page # 1 Introduction. Page # 2 Preparing the TITAN-TRACKSIDE-10. Binding. Page # 3 Using the TITAN-TRACKSIDE-10. Page # 4 Wiring diagram. Thank you for purchasing this 2.4 GHz DSM2 single function Trackside R/C system.
- Page 2 – 2 – PREPARING THE # TITAN-TRACKSIDE-10. TITAN-TRACKSIDE-10 THESE INSTRUCTIONS REFER TO THE 2.4 GHz 5 CHANNEL R/C. LAYOUT OF THE TITAN TRACKSIDE TRANSMITTER HAND PIECE. Top left is the ON – OFF switch with LED. Top right is the Bind/Ch # 5 pushbutton.
- Page 3 - 3 - 3. USING TITAN-TRACKSIDE-10 R/C &TTC WITH A TRACKSIDE LAYOUT. Make sure TT handpiece knob is in the middle position first. Only then switch the TT ON. MOST IMPORTANT!! Then turn ON the layout DC power supply. FIRST TIME USE. Remove the 4 x case screws to access inside the base unit. See pic below.
