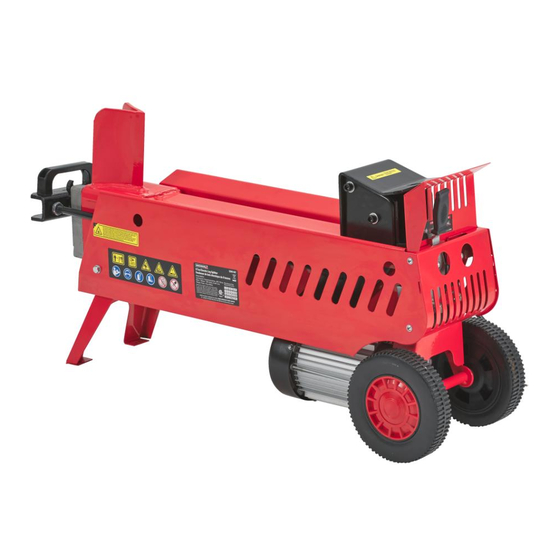

- Page 1 9 TON ELECTRIC LOG SPLITTER 120V • 60Hz • 15AMP 5 year limited warranty on tool READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. 222817 WEAR CSA APPROVED WEAR EAR WEAR A EYE PROTECTION PROTECTION FACE MASK...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS 9 TON ELECTRIC LOG SPLITTER Model Number 65575-9 Motor 120V, 60Hz, 15A Log Capacity Diameter* 5 ~320 mm Length 520 mm Splitting Force Hydraulic Pressure 20.5 Mpa Hydraulic Oil Capacity 6.3L Overall Size Length 1060 mm Width 278 mm... -
Page 3: Table Of Contents
5240-547 9 TON ELECTRIC LOG SPLITTER TABLE OF CONTENTS Product specifications ................... 1 Table of contents ................... 2 Safety warnings & cautions ................3 Application conditions ................... 6 Electrical requirements .................. 6 Set up and preparation for operation .............. 7 Wiring diagram .................... -
Page 4: Safety Warnings & Cautions
SAFETY WARNINGS & CAUTIONS SYMBOL MEANING UNDERSTAND YOUR LOG SPLITTER Read and understand the owner's manual and labels affixed to the log splitter. Learn its application and limitations as well as the specific potential hazards particular to it.v DRUGS, ALCOHOL AND MEDICATION Do not operate the log splitter while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. - Page 5 5240-547 9 TON ELECTRIC LOG SPLITTER SYMBOL MEANING PROTECT YOUR EYES AND FACE Any log splitter may throw foreign objects into the eyes. This can cause permanent eye damage. Always wear safety goggles. Everyday eyeglasses have only impact resistant lenses. They are not safety glasses.
- Page 6 SYMBOL MEANING DON'T OVERREACH Floor must not be slippery. Keep proper footing and balance at all times. Never stand on log splitter. Serious injury could occur if the tool is tipped or if the cutting tools is unintentionally contacted. Do not store anything above or near the log splitter where anyone might stand on the tool to reach them.
-
Page 7: Application Conditions
5240-547 9 TON ELECTRIC LOG SPLITTER SYMBOL MEANING PROTECT THE ENVIRONMENT Take used oil to an authorized collection point or follow the stipulations in the country where the log splitter is used. Do not discharge into drains, soil or water. MAINTAIN YOUR LOG SPLITTER WITH CARE Keep the log splitter clean for best and safest performance. -
Page 8: Set Up And Preparation For Operation
SET UP AND PREPARATION FOR OPERATION 1. Lift the log splitter by the handles at both ends and place it on a 60-75cm high, stable, flat and level work surface. 2. Familiarize yourself with the controls and features of this log splitter in the illustrations. -
Page 9: Wiring Diagram
5240-547 9 TON ELECTRIC LOG SPLITTER DO NOT ADJUST THE MAX PRESSURE LIMITING SCREW! Max pressure was set before the log splitter left the factory and the max pressure limiting screw is sealed with glue to ensure the log splitter works under pressure no more than 9 tons. -
Page 10: Log Splitter Operation
LOG SPLITTER OPERATION This log splitter is equipped with"ZHB"control system that requires it to be operated with both hands; the user's left hand controls the hydraulic control lever while the right hand controls the push button switch. The log splitter will freeze upon absence of either hand. -
Page 11: Freeing A Jammed Log
5240-547 9 TON ELECTRIC LOG SPLITTER Always set logs firmly on the log retaining plates and work table. Make sure logs will not twist, rock or slip while being split. Do not force the blade by splitting the log on the upper part. -
Page 12: Replacing Hydraulic Oil
REPLACING HYDRAULIC OIL Replace the hydraulic oil in the log splitter after every 150 hours of use. Take following steps to replace it. • Make sure all moving parts have stopped and the log splitter is unplugged. • Unscrew Oil Drain Bolt with Dipstick to remove it. •... -
Page 13: Troubleshooting
5240-547 9 TON ELECTRIC LOG SPLITTER TROUBLE SHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Fails to split logs. Log is improperly Refer to "Log Splitter positioned. Operation" section for perfect log loading. The sizes or hardness of the Reduce the log sizes log exceeds the capacity of before splitting it on the the machine. -
Page 14: Parts Schematic
PARTS SCHEMATIC... -
Page 15: Parts List
5240-547 9 TON ELECTRIC LOG SPLITTER PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the log splitter. Any attempt to repair or replace electrical parts on this log splitter may create a safety hazard unless repairs are performed by a qualified technician. - Page 16 Key# Part # Description 5240-547-30 Piston Rod 5240-547-31 Bolt M8x20 5240-547-32 Handle 5240-547-33 Flat Washer, M16 5240-547-34 Lock Nut, M16 2 5240-547-35 Copper Gasket M12 4 5240-547-36 Sliding Pressure Sensor Sleeve 5240-547-37 O-Ring 17x1.8 4 5240-547-38 Screw M10x8 2 5240-547-39 Steel Ball 8.5 1 5240-547-41 Spring...
- Page 17 5240-547 9 TON ELECTRIC LOG SPLITTER Key# Part # Description 5240-547-67 Screw M8x35 1 5240-547-68 Log Pusher 1 5240-547-69 Flat Washer, M6 4 5240-547-70 Screw M6x12 4 5240-547-71 Guard (L) 1 5240-547-72 Bolt M10x30 4 5240-547-73 Upper Plastic Insert 1 5240-547-74 Log Pusher 1 Connection Weldment 5240-547-75...
-
Page 18: Warranty
WARRANTY BENCHMARK 9 TON LOG SPLITTER WARRANTY If this Benchmark tool fails due to a defect in material or workmanship within five years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. This warranty does not include expendable parts including but not limited to blades, brushes, belts, light bulbs and/or batteries. - Page 19 5240-547 9 TON ELECTRIC LOG SPLITTER...
- Page 20 9-TON ELECTRIC LOG SPLITTER 120V • 60Hz • 15AMP 5 year limited warranty on tool 5240-547 BENCHMARK TOOLS CANADA Made in China ST. JACOBS, ONTARIO N0B 2N0 © 01 / 2021 Home Hardware Stores Limited CUSTOMER SERVICE/TECH SUPPORT 1-866-349-8665 * This Benchmark product carries a five (5) year LIMITED warranty against defects...
