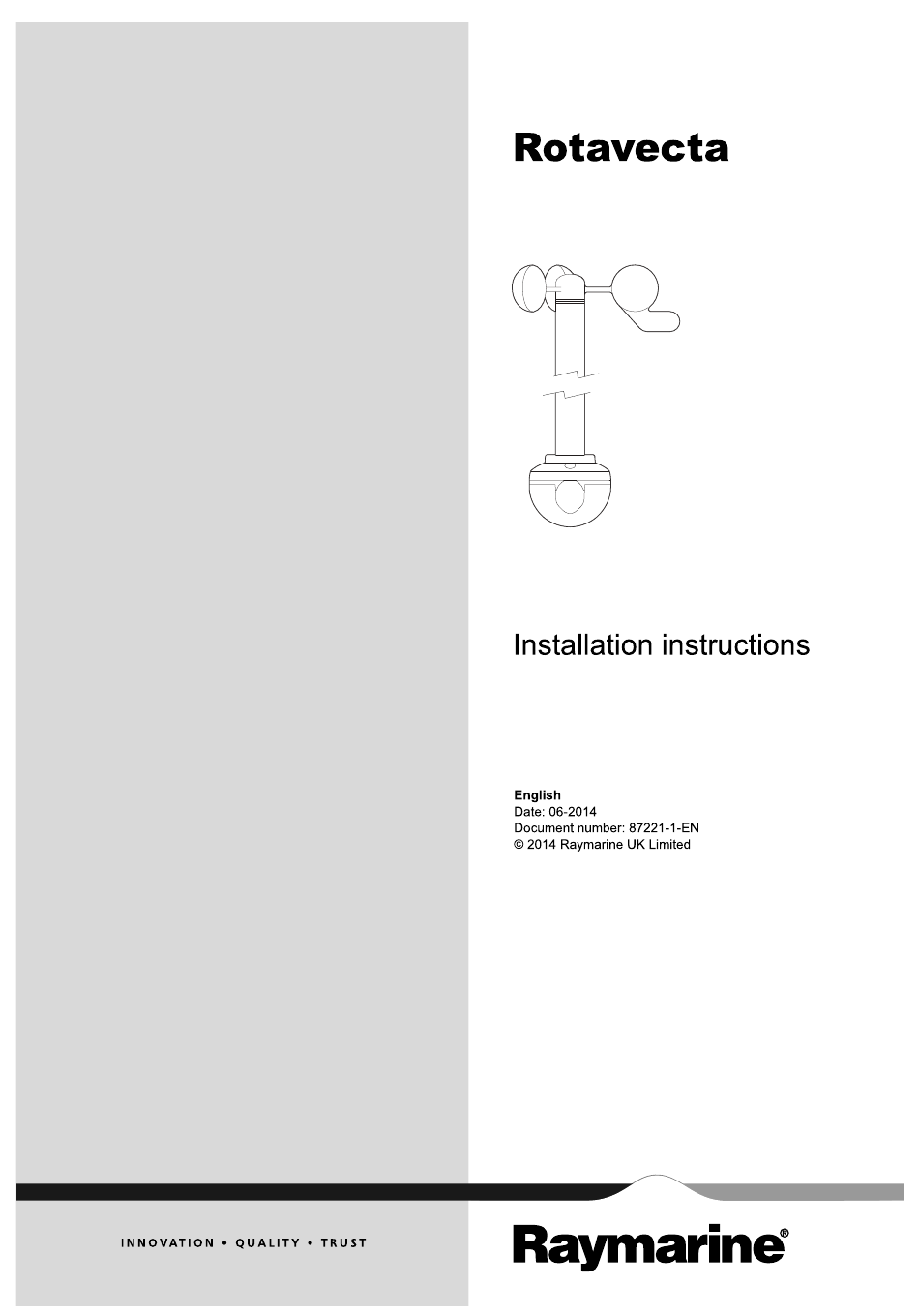

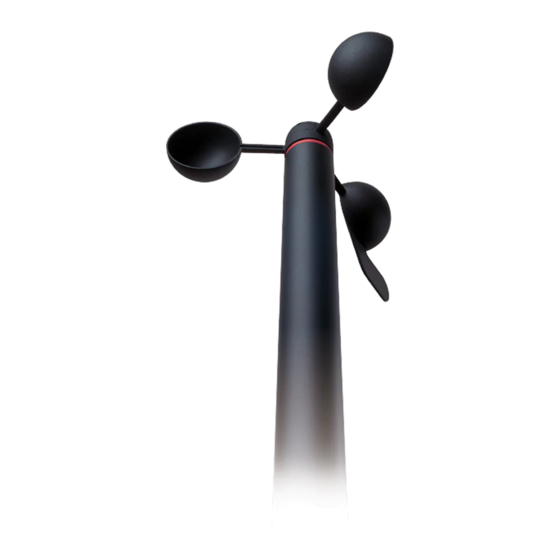

- Page 1 Ro t a ve c t a Installation instructions Date: 06-2014 Document number: 87221-1-EN © 2014 Raymarine UK Limited...
- Page 3 Raymarine UK Limited. RayTalk, Seahawk, Smartpilot, Pathfinder and Raymarine are registered trademarks of Raymarine Holdings Limited. FLIR is a registered trademark of FLIR Systems, Inc. and/or its subsidiaries. All other trademarks, trade names, or company names referenced herein are used for identification only and are the property of their respective owners.
-
Page 5: Table Of Contents
Contents Chapter 1 Important information......7 Certified Installation ........... 7 Water ingress ............7 Disclaimer ..............7 EMC installation guidelines ........7 Suppression ferrites ........... 7 Connections to other equipment ......... 8 Declaration of conformity..........8 Product disposal ............8 Warranty registration.......... - Page 6 Rotavecta...
-
Page 7: Chapter 1 Important Information
Chapter 1: Important information Disclaimer Raymarine does not warrant that this product is error-free or that it is compatible with products Certified Installation manufactured by any person or entity other than Raymarine. Raymarine recommends certified installation by a Raymarine is not responsible for damages or injuries Raymarine approved installer. -
Page 8: Connections To Other Equipment
Technical accuracy purpose (e.g. installation or maintenance), it must be replaced in the original position before the product To the best of our knowledge, the information in this is used. document was correct at the time it was produced. Use only ferrites of the correct type, supplied by However, Raymarine cannot accept liability for any Raymarine authorized dealers. -
Page 9: Chapter 2 Document And Product Information
Chapter 2: Document and product information Chapter contents • 2.1 Document information on page 10 • 2.2 Further information on page 11 • 2.3 Parts supplied on page 11 Document and product information... -
Page 10: Document Information
2.1 Document information Document illustrations Your product may differ slightly from that shown This document contains important information in the illustrations in this document, depending on related to the installation of your Raymarine product. product variant and date of manufacture. The document includes information to help you: All images are provided for illustration purposes only. -
Page 11: Further Information
2.2 Further information 2.3 Parts supplied For detailed operating instructions, refer to the The following items are supplied with your product. handbook that accompanies your display. D13100-1 1. Rotavecta assembly (including 20 m / 65.6 ft. cable) 2. Fixings x 2 3. - Page 12 Rotavecta...
-
Page 13: Chapter 3 Planning The Installation
Chapter 3: Planning the installation Chapter contents • 3.1 Installation checklist on page 14 • 3.2 Compatible instrument displays on page 14 • 3.3 Typical system on page 15 • 3.4 Tools required on page 16 • 3.5 Warnings and cautions on page 16 •... -
Page 14: Installation Checklist
3.1 Installation checklist 3.2 Compatible instrument displays Installation includes the following activities: The following instrument displays are compatible with your wind transducer. Installation Task Plan your system. Obtain all required equipment and tools. ST40 Site all equipment. Route all cables. Drill cable and mounting holes. -
Page 15: Typical System
3.3 Typical system Depth transducer iTC-5 system example Speed transducer SeaTalk system example SeaTalk SeaTalk 12 V 12 V D12343-2 Depth instrument display (SeaTalk) Speed instrument display (SeaTalk) Wind instrument display (SeaTalk) Rotavecta wind transducer D13101-1 Depth transducer SeaTalk instrument displays Speed transducer Rotavecta wind transducer 12 V dc power supply... -
Page 16: Tools Required
3.4 Tools required 3.5 Warnings and cautions Product installation requires the following tools: Important: Before proceeding, ensure that you have read and understood the warnings and Item Description Quantity cautions provided in the Chapter 1 Important Power drill information section of this document. Pozidrive screwdriver Drill bit of appropriate size* 1 Note: * The appropriate drill bit size is dependent... -
Page 17: Wind Vane Transducer / Rotavecta Location
3.6 Wind vane transducer / rotavecta 3.7 Product dimensions location requirements 187 mm (7.4 in.) When selecting a location for your wind transducer it is important to consider a number of factors. The transducer's location must: • Allow reasonable access for installation and servicing. - Page 18 Rotavecta...
-
Page 19: Chapter 4 Mounting
Chapter 4: Mounting Chapter contents • 4.1 Mounting options on page 20 • 4.2 Surface mounting on page 20 • 4.3 Rail mounting on page 21 Mounting... -
Page 20: Mounting Options
4.1 Mounting options 4.2 Surface mounting Follow the steps below to surface mount your unit on The Rotavecta can be surface or rail mounted. a mast top or radar arch. D13104-1 D13105-1 1. Surface mount Surface mounting the unit on a horizontal surface will provide optimum performance. -
Page 21: Rail Mounting
4.3 Rail mounting Rotavecta rail mount clamp The rotavecta transducer can be rail mounted using Follow the steps below to mount your unit on a 23 the supplied rail clamp. mm (0.9 in.) or 25 mm (1 in.) diameter horizontal rail. D13108-1 Fixings x 2 1. - Page 22 Rotavecta...
-
Page 23: Chapter 5 Cables And Connections
Chapter 5: Cables and connections Chapter contents • 5.1 General cabling guidance on page 24 • 5.2 Cable routing on page 24 • 5.3 Rotavecta connections on page 25 Cables and connections... -
Page 24: General Cabling Guidance
5.1 General cabling guidance 5.2 Cable routing Cable types and length Routing the cable through the deck mast It is important to use cables of the appropriate type Follow the steps below to route cable through a deck and length mast. -
Page 25: Rotavecta Connections
5.3 Rotavecta connections The rotavecta should be connected as shown below. iTC5 connection ROTA COMPASS DEPTH RUDDER D12038-1 Item Cable color Signal name Rotor + Blue Rotor – i40 / ST40 connection D12353-1 Item Cable color Signal name Rotor + Blue Rotor –... - Page 26 Rotavecta...
-
Page 27: Chapter 6 Operation
Chapter 6: Operation Chapter contents • 6.1 Calibration and linearization on page 28 • 6.2 Further information on page 28 Operation... -
Page 28: Calibration And Linearization
6.1 Calibration and linearization 6.2 Further information In order to achieve optimum data readings from your For detailed operating instructions, refer to the transducer it must be calibrated and linearized. handbook that accompanies your display. Please refer to the Installation and operation instructions that accompanied your compatible Wind instrument display for calibration and linearization procedures. -
Page 29: Chapter 7 Maintenance
Chapter 7: Maintenance Chapter contents • 7.1 Routine checks on page 30 • 7.2 Unit cleaning instructions on page 30 Maintenance... -
Page 30: Routine Checks
7.1 Routine checks 7.2 Unit cleaning instructions The following periodic checks should be made: The unit does not require regular cleaning. However, if you find it necessary to clean the unit, please follow • Examine cables for signs of damage, such as the steps below: chafing, cuts or nicks. -
Page 31: Chapter 8 Technical Support
Chapter 8: Technical support Chapter contents • 8.1 Raymarine customer support on page 32 Technical support... -
Page 32: Raymarine Customer Support
8.1 Raymarine customer support Raymarine provides a comprehensive customer support service. You can contact customer support through the Raymarine website, telephone and e-mail. If you are unable to resolve a problem, please use any of these facilities to obtain additional help. Web support Please visit the customer support area of our website www.raymarine.com... -
Page 33: Chapter 9 Technical Specification
Chapter 9: Technical specification Chapter contents • 9.1 Physical specification on page 34 • 9.2 Conformance specification on page 34 Technical specification... -
Page 34: Physical Specification
9.1 Physical specification 9.2 Conformance specification • EN 60945:2002 Dimensions • Height (Surface mount): 385 mm Conformance (15.2 in). • EMC Directive 2004/108/EC • Height (Including rail clamp): 426 mm (16.8 in). • Australia and New Zealand: C-Tick, • Cup rotation diameter: 187 mm (7.4 Compliance Level 2 in.) Weight... - Page 36 www.ra ym a rin e .c o m...
