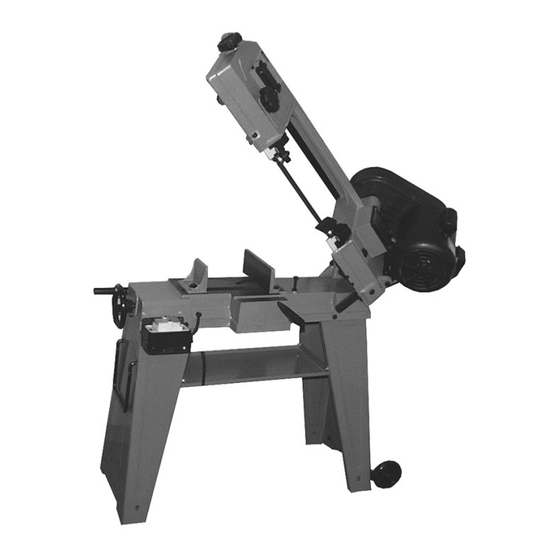

- Page 1 Operating Manual Hack band- saw MBS 115 E Ordering No. 40536 Read this operating manual carefully before Güde GmbH & Co. KG Birkichstrasse 6 74549 Wolpertshausen www.guede.com...
-
Page 2: Table Of Contents
List of Contents Description Page Properties General safety information Technical data Motor assembly Band saw assembly Band speed Saw band replacement Saw upper wheel alignment Guide bearings set-up k Saw band tension set-up Operator instructions Hints for cutting Selection of saw band Putting the saw in operation Maintenance Troubles, causes, troubleshooting... -
Page 3: Technical Data
Technical Data Supply connection: 230 V/ 50 Hz Acoustic output level: Motor output: 375 W idling: 65 dB Cutting power : 100 x 150 mm cutting: 70 dB Cutting power: 115 mm Saw band: 12,7 x 0,64 x 1638 mm Speed: 20, 28, 50 rpm Weight:... -
Page 4: Band Saw Assembly
Band Saw Assembly and Installation 1. The saw may be attached to the worktable or a stand with 6 screws. . 2. The backplate rear end should be mounted on the end of the worktable or the stand so that band saw can be tilted in the vertical position. -
Page 5: Saw Band Tension Set-Up
2. Loosen the nut and while doing so, fix the pin with a forked socket. 3. The eccentric position will give the required clearance (with correct set-up, the saw band will be precisely vertical at cutting). 4. Retighten the nut to block the eccentric position. 5. -
Page 6: Troubles, Causes, Troubleshooting
Clean the machine after every work and lubricate with oil to prevent corrosion. Use oil SAE-30 to lubricate the saw parts. Lubricate the vice parts occasionally. It is not necessary to lubricate drive wheels more frequently than annually except for cases of overloading the saw. - Page 7 4. The wood slipped by cutting 1. Excessive thrust of the saw 1. Reduce the saw band tension band 2. Reduce the V-belt tension 2. Excessive tension of V-belt 3. Use finer teething 3. Teething too coarse 4. Use coarser teething Motor gets excessively 4.
-
Page 8: Technical Drawing
Technical Drawing... - Page 9 List of Spare Parts Spare Part No. Spare Part No. Description Description Ordering Versi Figur Orderin Versi Figur g No. 40536 001 Pentagon screw 40536 041 Clamp plate 40536 002 Pentagon nut 40536 042 Insulation plate 40536 003 Washer 40536 043 Rubber ring 40536 004 Right hand stand...
-
Page 10: Wiring Diagram
Spare Part No. Spare Part No. Description Description Ordering Versi Figur Orderin Versi Figur g No. 40536 080 Spring 40536 097 Worm shaft 40536 081 case 40536 098 Grooved-head screw 40536 082 Hexagon screw 40536 099 washer 40536 083 Hexagon screw 40536 100 screw 40536... -
Page 11: Declaration Of Conformity
Bei einer nicht mit uns abgestimmter Änderung der Geräte verliert diese Erklärung ihre Gültigkeit. In a case of alternation of the machine, not agreed upon by us, this declaration will lose ist validity. Bezeichnung der Geräte: - Metallbandsäge MBS 115 E Machine Description: Artikel-Nr.: - 40536 Article-No.: Einschlägige EG-Richtlinien:...
