Summary of Contents for Coaster 203501Q

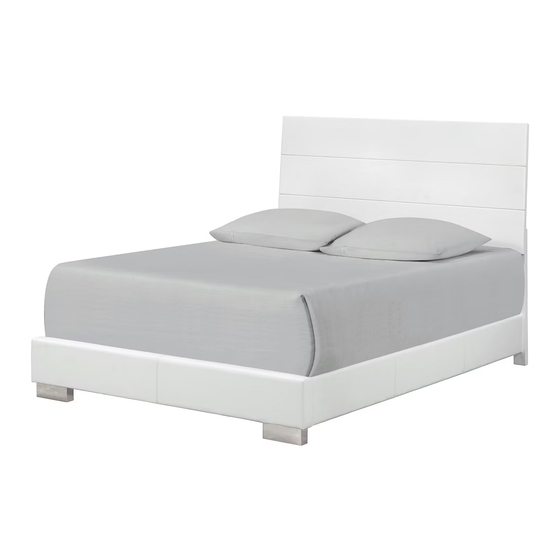

- Page 1 203501Q (B1&B2) QUEEN SIZE BED ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE www.coastercompany.com REVISION 0 : 05/16/2014 PAGE 1 OF 4 REVISION 1 : 05/27/2014...
- Page 2 B2 (BOX 2) 4PCS BED SLAT 4PCS BED SLAT SUPPORT WITH LEVELER HARDWARE IDENTIFICATION Z - B1 (BOX 1)-Hardware is located in 203501Q(B1) Z - B2 (BOX 2)-Hardware is located in 203501Q(B2) 8PCS SHORT FLAT HEAD SCREW BOLT 6PCS 6PCS...
- Page 3 **Please take note the marking on the leg ** IF PURCHASE HEADBOARD ONLY, SKIP BELOW STEPS 203501Q (B1 & B2) - BOX 1 & BOX 2 STEP 3 Align and fasten footboard leg (G) to footboard panel (H) using long flat head screw (6) and tighten with screw driver (Not included).
- Page 4 ITEM : 203501Q (B1&B2) ASSEMBLY INSTRUCTIONS STEP 4 Loosen the bolt. Align & hook bed rail (F) to headboard (HB) & footboard (H). STEP 5 STEP 6 Align and fasten bed slat support with 6.1) Fully tighten all the bolts at step 4 with big Allen wrench (9).
