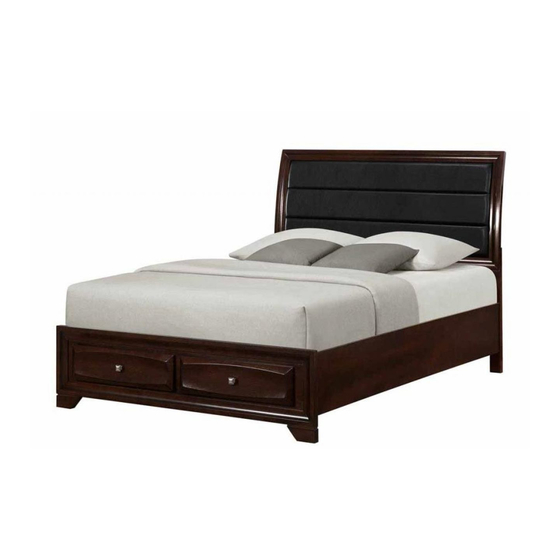

- Page 1 203481KE (B1 ~ B3) EASTERN KING SIZE BED ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE www.coastercompany.com PAGE 1 OF 6 REVISION 0: 05/01/2014 REVISION 1: 05/15/2014...
-
Page 2: Assembly Tips
203481KE (B1 ~ B3) ITEM : ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1 . Remove hardware from box and sort by size. 2 . Please check to see that all hardware and parts are present prior to start of assembly. 3 . Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
203481KE (B1 ~ B3) ITEM : ASSEMBLY INSTRUCTIONS HARDWARE IDENTIFICATION HARDWARE PACK IS HARDWARE PACK IS Z - B2 (BOX 2) Z - B1 (BOX 1) LOCATED IN 203481KE (B2) LOCATED IN 203481KE (B1) BOLT 6PCS BOLT 4PCS SMALL ALLEN WRENCH... - Page 4 Headboard & Leg "R" Marking behind the Headboard & Leg 203481KE (B1~B3) - BOX 1 TO BOX 3 STEP 2 2.1 Loosen the bolt and align and fasten bed rail (F) to headboard (HB) and footboard (D) using the bolt and fully tighten with big Allen wrench (7).
- Page 5 203481KE (B1 ~ B3) ITEM : ASSEMBLY INSTRUCTIONS STEP 3 3.1 Align and fasten drawer bottom trestle bar support with leveler (M) to upper trestle support bar (N) and drawer bottom trestle bar (J) by turning clockwise until tight. 3.2 Align and fasten drawer bottom trestle bar (J) to 'U' bracket at bed rail (F) using long flat head screw (9) and tighten with Phillips head screw driver (NOT INCLUDED).
- Page 6 203481KE (B1 ~ B3) ITEM : ASSEMBLY INSTRUCTIONS STEP 5 5.1 Align and fasten bed slat with 3 holes (G) to center rail (I) and bed slat support with leveler (L) using bolt (5) and tighten with small Allen wrench (6).Adjust leveler to touch the floor.
