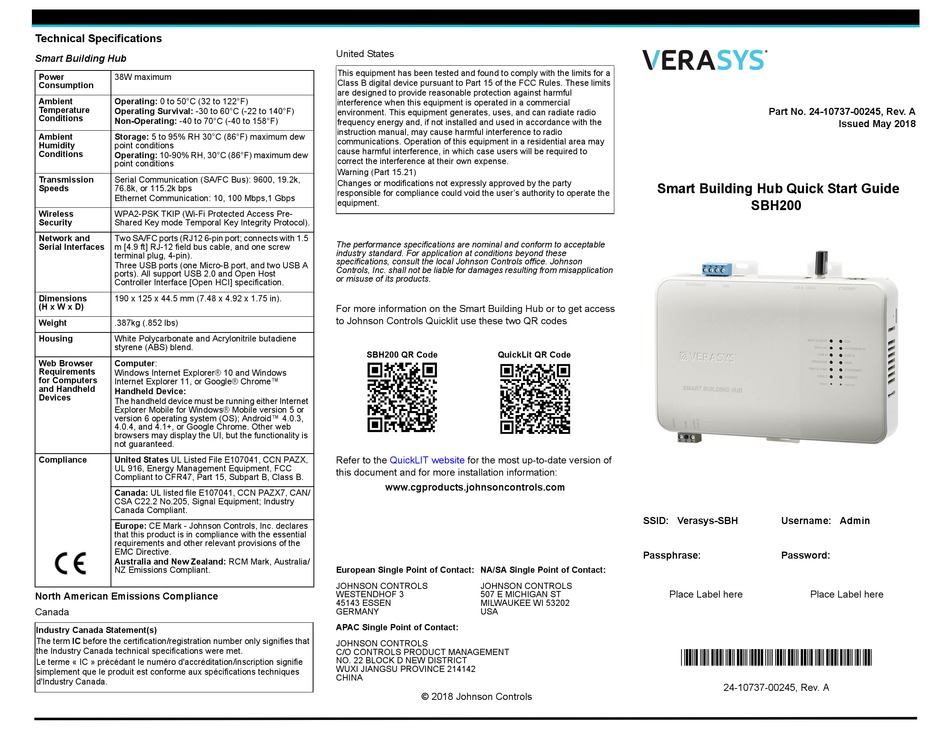

Verasys SBH200 Quick Start Manual

Technical Specifications

Smart Building Hub
Power 38W maximum
Consumption
Ambient Operating: 0 to 50°C (32 to 122°F)
Temperature
Operating Survival: -30 to 60°C (-22 to 140°F)
Conditions
Non-Operating: -40 to 70°C (-40 to 158°F)
Ambient Storage: 5 to 95% RH 30°C (86°F) maximum dew
Humidity point conditions
Conditions
Operating: 10-90% RH, 30°C (86°F) maximum dew
point conditions
Transmission Serial Communication (SA/FC Bus): 9600, 19.2k,
Speeds 76.8k, or 115.2k bps
Ethernet Communication: 10, 100 Mbps,1 Gbps
Wireless WPA2-PSK TKIP (Wi-Fi Protected Access Pre-
Security Shared Key mode Temporal Key Integrity Protocol).
Network and Two SA/FC ports (RJ12 6-pin port; connects with 1.5
Serial Interfaces m [4.9 ft] RJ-12 field bus cable, and one screw
terminal plug, 4-pin).
Three USB ports (one Micro-B port, and two USB A
ports). All support USB 2.0 and Open Host
Controller Interface [Open HCI] specification.
Dimensions 190 x 125 x 44.5 mm (7.48 x 4.92 x 1.75 in).
(H x W x D)
Weight .387kg (.852 lbs)
Housing White Polycarbonate and Acrylonitrile butadiene
styrene (ABS) blend.
Web Browser Computer:
Requirements
Windows Internet Explorer® 10 and Windows
for Computers
Internet Explorer 11, or Google® Chrome™
and Handheld
Handheld Device:
Devices
The handheld device must be running either Internet
Explorer Mobile for Windows® Mobile version 5 or
version 6 operating system (OS); Android™ 4.0.3,
4.0.4, and 4.1+, or Google Chrome. Other web
browsers may display the UI, but the functionality is
not guaranteed.
Compliance United States UL Listed File E107041, CCN PAZX,
UL 916, Energy Management Equipment, FCC
Compliant to CFR47, Part 15, Subpart B, Class B.
Canada: UL listed file E107041, CCN PAZX7, CAN/
CSA C22.2 No.205, Signal Equipment; Industry
Canada Compliant.
Europe: CE Mark - Johnson Controls, Inc. declares
that this product is in compliance with the essential
requirements and other relevant provisions of the
EMC Directive.
Australia and New Zealand: RCM Mark, Australia/
NZ Emissions Compliant.
North American Emissions Compliance
Canada
Industry Canada Statement(s)
The term IC before the certification/registration number only signifies that
the Industry Canada technical specifications were met.
Le terme « IC » précédant le numéro d'accréditation/inscription signifie
simplement que le produit est conforme aux spécifications techniques
d'Industry Canada.
United States
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when this equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area may
cause harmful interference, in which case users will be required to
correct the interference at their own expense.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
The performance specifications are nominal and conform to acceptable
industry standard. For application at conditions beyond these
specifications, consult the local Johnson Controls office. Johnson
Controls, Inc. shall not be liable for damages resulting from misapplication
or misuse of its products.
For more information on the Smart Building Hub or to get access
to Johnson Controls Quicklit use these two QR codes
SBH200 QR Code QuickLit QR Code
Refer to the QuickLIT website for the most up-to-date version of
this document and for more installation information:
www.cgproducts.johnsoncontrols.com
European Single Point of Contact: NA/SA Single Point of Contact:
JOHNSON CONTROLS JOHNSON CONTROLS
WESTENDHOF 3 507 E MICHIGAN ST
45143 ESSEN MILWAUKEE WI 53202
GERMANY USA
APAC Single Point of Contact:
JOHNSON CONTROLS
C/O CONTROLS PRODUCT MANAGEMENT
NO. 22 BLOCK D NEW DISTRICT
WUXI JIANGSU PROVINCE 214142
CHINA
© 2018 Johnson Controls
Part No. 24-10737-00245, Rev. A
Smart Building Hub Quick Start Guide
SBH200
