Verasys SBH200 Quick Start Manual

Technical Specifications (Continued)
Transmission Serial Communication (SA/FC Bus): 38.4 kbps
Speeds
Ethernet Communication: 10, 100 Mbps,1 Gbps
Wireless WPA2-PSK TKIP (Wi-Fi Protected Access Pre-
Security Shared Key mode Temporal Key Integrity
Protocol).
Network and Two SA/FC ports (RJ12 6-pin port; connects with
Serial 1.5 m [4.9 ft] RJ-12 field bus cable, and one screw
Interfaces terminal plug, 4-pin).
Three USB ports (one Micro-B port, and two USB
A ports). All support USB 2.0 and Open Host
Controller Interface [Open HCI] specification.
Dimensions 190 x 125 x 44.5 mm (7.48 x 4.92 x 1.75 in).
(H x W x D)
Housing White Polycarbonate and Acrylonitrile butadiene
styrene (ABS) blend.
Web Browser Computer:
Requirements
Windows Internet Explorer® 10 and Windows
for Computers
Internet Explorer 11, or Google® Chrome™
and Handheld
Handheld Device:
Devices
The handheld device must be running either
Internet Explorer Mobile for Windows® Mobile
version 5 or version 6 operating system (OS);
Android™ 4.0.3, 4.0.4, and 4.1+, or Google
Chrome. Other web browsers may display the UI,
but the functionality is not guaranteed.
Compliance United States UL Listed File E107041, CCN
PAZX, UL 916, Energy Management Equipment,
FCC Compliant to CFR47, Part 15, Subpart B,
Class B.
Canada: UL listed file E107041, CCN PAZX7,
CAN/CSA C22.2 No.205, Signal Equipment;
Industry Canada Compliant.
Europe: CE Mark - Johnson Controls, Inc.
declares that this product is in compliance with the
essential requirements and other relevant
provisions of the EMC Directive.
Australia and New Zealand: RCM Mark,
Australia/NZ Emissions Compliant.
North American Emissions Compliance
United States
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when this equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area may
cause harmful interference, in which case users will be required to
correct the interference at their own expense.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Canada
Industry Canada Statement(s)
The term IC before the certification/registration number only signifies
that the Industry Canada technical specifications were met.
Le terme « IC » précédant le numéro d'accréditation/inscription
signifie simplement que le produit est conforme aux spécifications
techniques d'Industry Canada.
The performance specifications are nominal and conform to
acceptable industry standard. For application at conditions beyond
these specifications, consult the local Johnson Controls office.
Johnson Controls, Inc. shall not be liable for damages resulting from
misapplication or misuse of its products.
For more information on the Smart Building Hub or to get
access to Johnson Controls Quicklit use these two QR
codes.
SBH200 QR Code QuickLit QR Code
Refer to the QuickLIT website for the most up-to-date
version of this document and for more installation
information:
www.cgproducts.johnsoncontrols.com
European Single Point of Contact: NA/SA Single Point of Contact:
JOHNSON CONTROLS JOHNSON CONTROLS
WESTENDHOF 3 507 E MICHIGAN ST
45143 ESSEN MILWAUKEE WI 53202
GERMANY USA
APAC Single Point of Contact:
JOHNSON CONTROLS
C/O CONTROLS PRODUCT MANAGEMENT
NO. 22 BLOCK D NEW DISTRICT
WUXI JIANGSU PROVINCE 214142
CHINA
© 2018 Johnson Controls.
Part No. 24-10737-00229, Rev. A

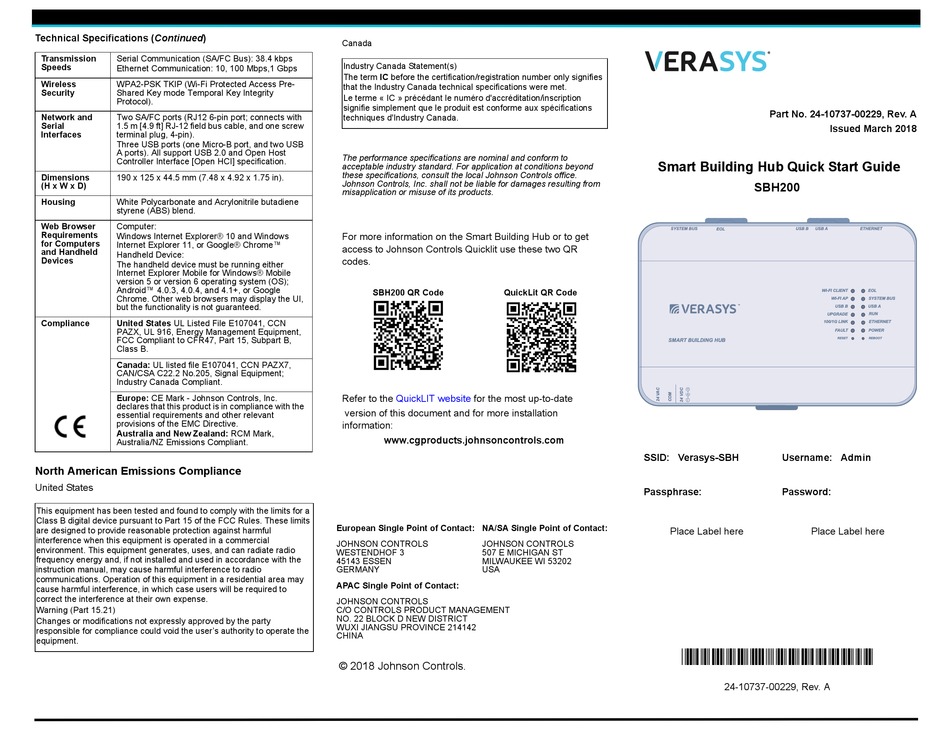

Smart Building Hub Quick Start Guide
SBH200
USB B USB A
SYSTEM BUS EOL
WI-FI CLIENT

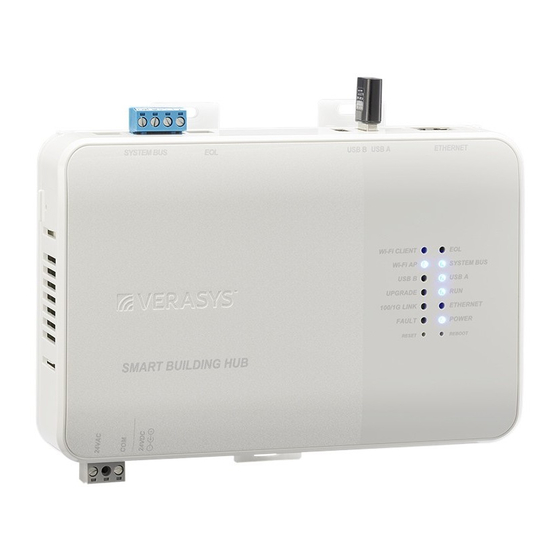

SMART BUILDING HUB
