S P E C I F I C A T I O N S
Max. Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . .1200 RPM
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4" NPT
Air Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3/8" ID
Recommended Air Pressure . . . . . . . . . . . . . . . . . . . . .90 PSIG
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.6 LBS.
Air Consumption . . . . . . . . . . . . . . . . . . .4 CFM (28.48 SCFM)
Chuck Range Diameter . . . . . . . . . . . . . . . . . . . . . . . . . .3/8"
Horsepower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Sound Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84dBA
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
MT1810
• Parts Breakdown
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.
MT1810
1

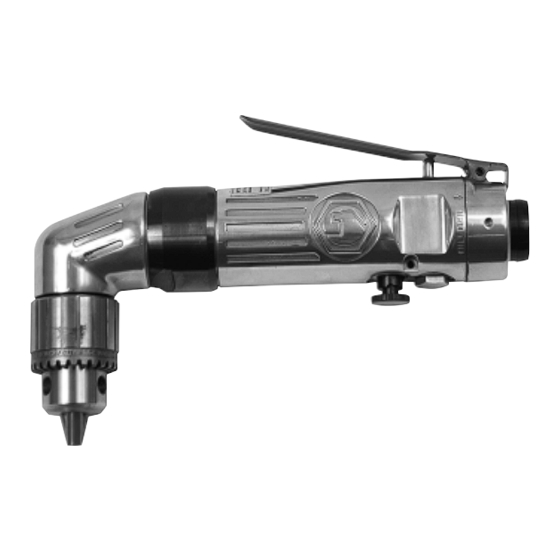

MT1810
3/8"
Right Angle
Reversible
Air Drill
w/Keyed
Industrial
Chuck
Rev. 10/09/03
