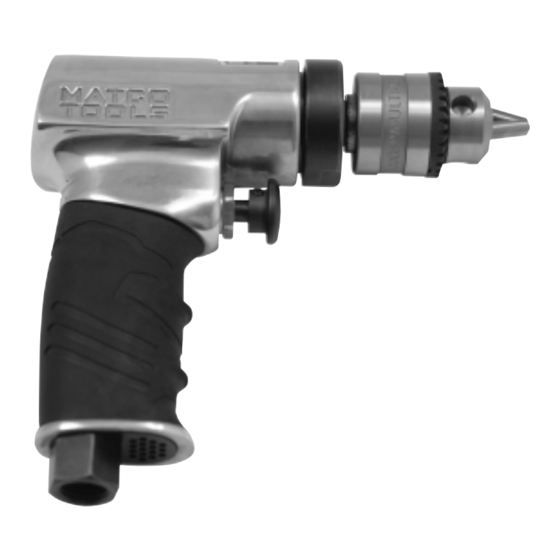

1/4" air drill

Advertisement

Quick Links

• Operating Instructions • Warning Information
S P E C I F I C A T I O N S
Max. Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . 2800 RPM
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Air Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8" ID
Recommended Air Pressure . . . . . . . . . . . . . . . . . . . . . 90 PSIG
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 LBS.
Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 CFM
Chuck Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4"
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
MT1884
• Parts Breakdown
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.
MT1884
1
MT1884
1/4"
Air Drill
Rev. 11/14/03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT1884 and is the answer not in the manual?

Questions and answers

Summary of Contents for Matco Tools MT1884

  • Page 1 S P E C I F I C A T I O N S MT1884 Max. Free Speed ......2800 RPM Air Inlet .
  • Page 2 MT1884 1/4" Air Drill FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY THIS INSTRUCTION MANUAL CONTAINS • Place the tool on the work before starting the tool. IMPORTANT SAFETY INFORMATION. • Slipping, tripping and/or falling while operating air READ THIS INSTRUCTION MANUAL CAREFULLY...
  • Page 3 MT1884 1/4" Air Drill FEATURES • Speed Trigger • Jacobs Variable ® keyed chuck • Short front gear case for ease of access in tight areas • Rear handle exhaust to direct air away from the work • Built in Matco comfort grip •...
  • Page 4 MT1884 1/4" Air Drill ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. RS188401 Motor Housing RS188419 Front End Plate RS188402 Rubber Grip RS10920 Ball Bearing RS188403 Air Inlet RS188421 Ball Bearing RS188404 Trigger RS188422 Set Screw RS188405 Valve Stem...
