- Page 1 Hornet S Quick Start User Manual www.JYU.com...
-
Page 2: Safety First
※ Instruction ※ Quick Start User Manual Attention 1. The Hornet S is not a toy and must not be used by anyone 14 years old or younger. 2. The propellers operate at high speed and may cause injury. Warnings Never fly the Hornet S closer than 600 feet (200 meters) - Page 3 Always fly the Hornet S in a way that allows it remain in sight at all times. Always fly the Hornet S in an open field. Tall buildings and areas with many houses or trees will obstruct the GPS signal and make flying difficult.
-
Page 4: Part Descriptions

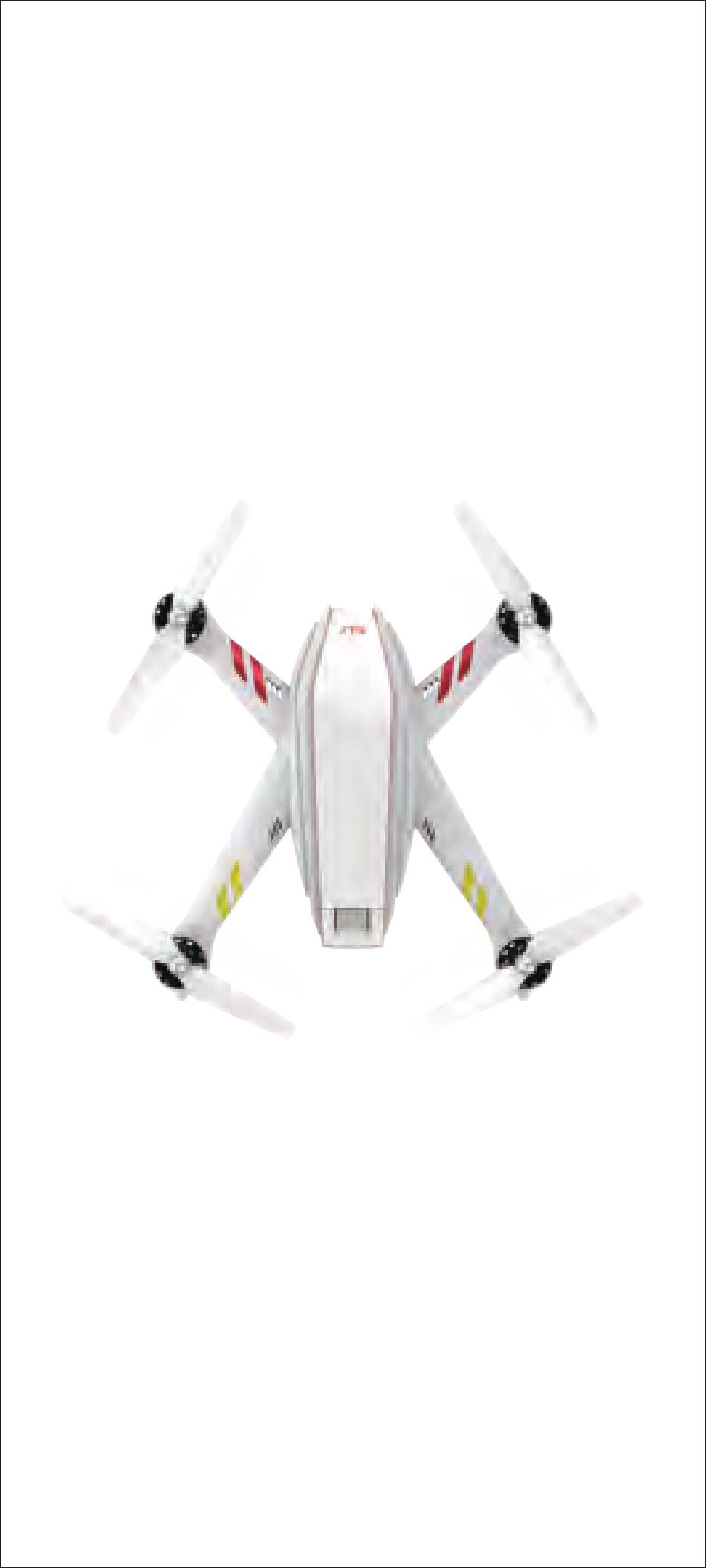

Part Descriptions propeller motor Battery latch power on/off gimbal (only for aerial version) FPV camera (only for FPV version) camera mount lock battery pack lock flight LED Battery capacity indicator 100% charging port battery power on/off 1. Short press to check battery capacity. 2. - Page 5 Hornet S communication remote battery indicator capacity indicator Red: disconnected Green: battery capacity ok Green: connected Red: low capacity photo/video (only for aerial RGB mode version) left stick right stick power on/off hook return to home take off/land mode switch 3.
- Page 6 Hornet S specifications Aircraft Hornet S Outdoor Anti-wind Level 5 Level 15-20 Minutes Max Flight Time Available One key to launch Max Flight Speed 120km/h （professional mode） 120m(beginner mode & Max Flight Height normal mode) Dual mode(GPS/GLNOSS) Transmit Distance Weight(Including...
- Page 7 Manual Flight(US Orientation) Turn Turn Turn Turn Left Right Left Right Down Down Left Stick Left Stick Front Front Left Right Left Right Back Back Right Stick Right Stick...
-
Page 8: Propeller Installation
Propeller installation Put the black propellers on motors 1 and 3, then turn counter clockwise to attach. Put the silver propellers on motors 2 and 4, then turn clockwise to attach. Warning: Do not use glue or thread locking compound when attaching the propeller. Propellers Disassembly：... -
Page 9: Prepare The Remote Control
1. beginner mode mode switch Turn on the remote control. The battery capacity indicator will turn Green. The Hornet S communication indicator will also turn Green when the remote control successfully connects to the Hornet S. Attention: When the remote control's battery power is low, the power indicator will flash red to warn you... - Page 10 (Must land now) Attenion: LED 1 and 2 are on the front side of the Hornet S. You can configure these lights to operate as you like. LED 3 and 4 are on the rear side of the Hornet S and indicate flight status.
-
Page 11: Compass Calibration
Compass Calibration ATTENTION: 1. You should calibrate the compass before your first flight. There is no need to recalibrate after the first calibration if you always fly in the same location. 2. A compass is easily effected by magnetic materials so the remote control should be calibrated in an open field far away from high voltage lines, large metal objects and electronic devices. - Page 12 Calibration Methods Method 1: Pick up the aircraft with the palms of your hands so that it is positioned with the front of the aircraft pointing straight down, towards the ground. Begin to slowly spin the aircraft in a clockwise direction. As you spin the aircraft, slowly turn yourself 360 degrees in a counterclockwise direction (see the drawing below).
- Page 13 Method 2： Pick up the aircraft with the palms of your hands so that it is positioned with the front of the aircraft pointing straight down, towards the ground. Begin to slowly move the the aircraft in a Figure 8 pattern (see the drawing below).
- Page 14 Configuration Install the Hornet S configuration software on your PC. The software is available on www.jyu.com in the download center. Double click on "Hornet S. exe" to install. Flight Parameters Connect the Hornet S to your computer then open the PC software to configure the flight...
-
Page 15: Your First Flight
Hornet S is ascending. WARNING: Read the user operation manual carefully and watch the instructional video before attempting to fly the Hornet S. Failure to do so may result in a crash, damage to the vehicle, damage to other property or injury. - Page 16 Let the left stick return to the middle position, then gently push it forward to take off. When the Hornet S is high enough for you, let the left stick return to the middle position, it will hover at that height.
