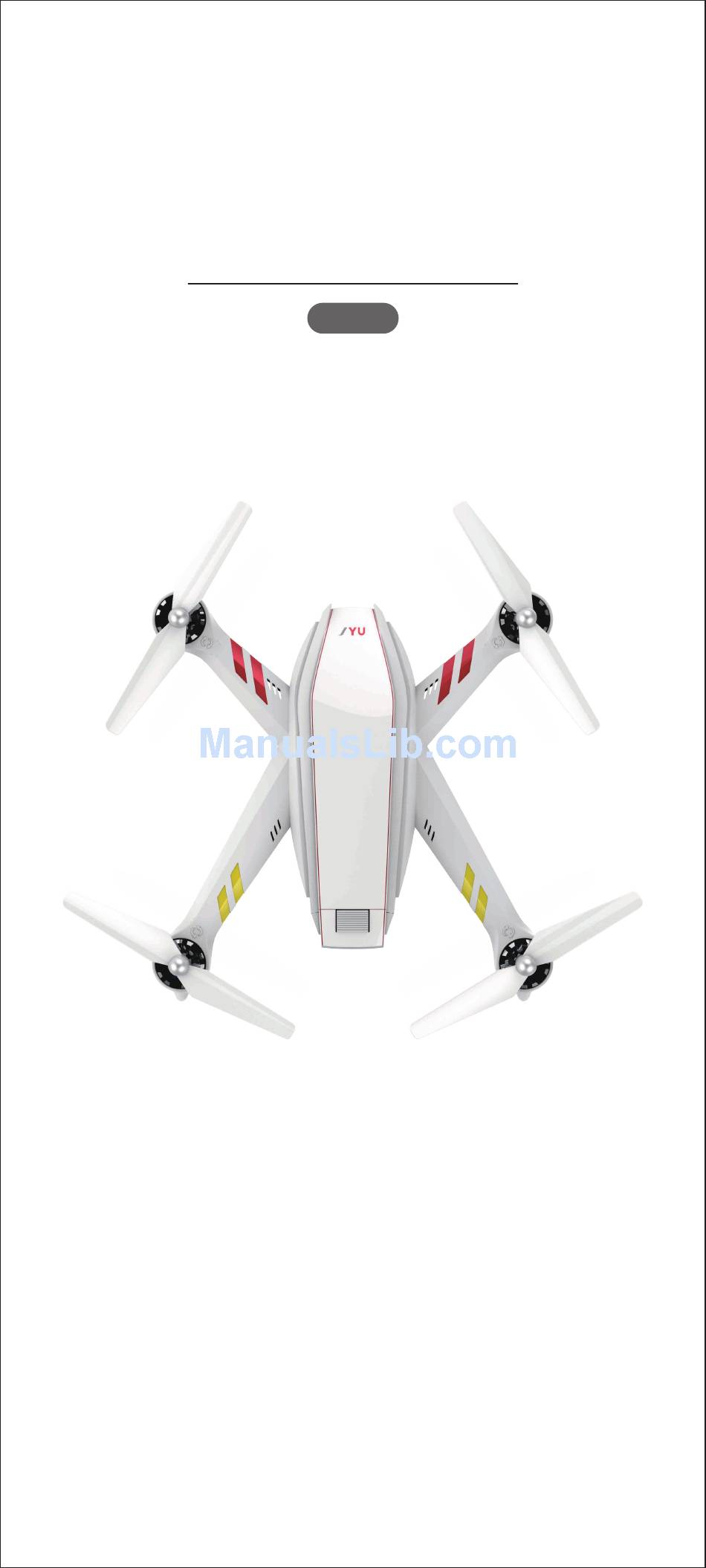

Hornet S
MB1
Instruction Manual
www.JYU.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hornet S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JYU Hornet S

Summary of Contents for JYU Hornet S

  • Page 1 Hornet S Instruction Manual www.JYU.com...

  • Page 2: Safety First

    ※ Instruction ※ Quick Start User Manual Attention 1. The Hornet S is not a toy and must not be used by anyone 14 years old or younger. 2. The propellers operate at high speed and may cause injury. Warnings Never fly the Hornet S closer than 600 feet (200 meters)
  • Page 3 Always fly the Hornet S in a way that allows it to remain in sight at all times. Always fly the Hornet S in an open field. Tall buildings and areas with many houses or trees will obstruct the GPS signal and make flying difficult.

  • Page 4: Part Descriptions

    Part Descriptions propeller motor Battery latch power on/off gimbal (only for aerial version) FPV camera (only for FPV version) camera mount lock battery pack lock flight LED Battery capacity indicator 100% charging port battery power on/off 1. Short press to check battery capacity. 2.
  • Page 5 Hornet S specifications Aircraft Hornet S Outdoor Anti-wind Level 5 Level 15-20 Minutes Max Flight Time Available One key to launch Max Flight Speed 120km/h （professional mode） 120m(beginner mode & Max Flight Height normal mode) Dual mode(GPS/GLNOSS) Transmit Distance Weight(Including...

  • Page 6: Propeller Installation

    Propeller installation Put the black propellers on motors 1 and 3, then turn counter clockwise to attach. Put the silver propellers on motors 2 and 4, then turn clockwise to attach. Warning: Do not use glue or thread locking compound when attaching the propeller. Propellers Disassembly：...
  • Page 7 (Must land now) Attenion: LED 1 and 2 are on the front side of the Hornet S. You can configure these lights to operate as you like. LED 3 and 4 are on the rear side of the Hornet S and indicate flight status.
  • Page 8 Connect the Hornet S to your computer using the USB ● cable supplied with the aircraft. Open the PC software, you will see the Hornet S icon. ● Install the driver file by selecting the appropriate file from the install directory.

  • Page 9: Parameter Setting Instruction

    Parameter Setting Instruction 1. Parameter Setting Open the PC software and select the Hornet S device ● to bring up the main screen. COM1 Connect Click on the Connect button and wait for all of the ● current parameter data to load and be displayed on the screen.
  • Page 10 2. Be careful when flying the Hornet S for the first time after changing any flight parameters until you understand how those changes effect the performance of the aircraft. 3. Be aware that the flight parameters only effect performance in Beginner and Normal modes - they are not active in Professional mode.
  • Page 11 Turn the Remote Controller's power ON ● Connect the Remote Controller to your PC using the ● USB cable supplied with the Hornet S. If you have not done so previously, select the | RD12 ● device driver and install it.
  • Page 12 4. Upgrade Firmware You can use your computer and the Hornet S PC software to check for Remote Controller software updates that may be available from JYU. If a new software version is available, you may load it on to your Remote Controller in...
