Detection Systems DS7060 Quick Start Manual

DETECTION SYSTEMS AUSTRALIA
INITIAL PROGRAMMING INSTRUCTIONS FOR THE DS7060 PANEL
VERSION 1.05
NOTE: PLEASE ENSURE THAT THE KEYPAD ADDRESS JUMPER IS INSTALLED IN THE KEYPAD
PRIOR TO CONNECTION TO THE PANEL.

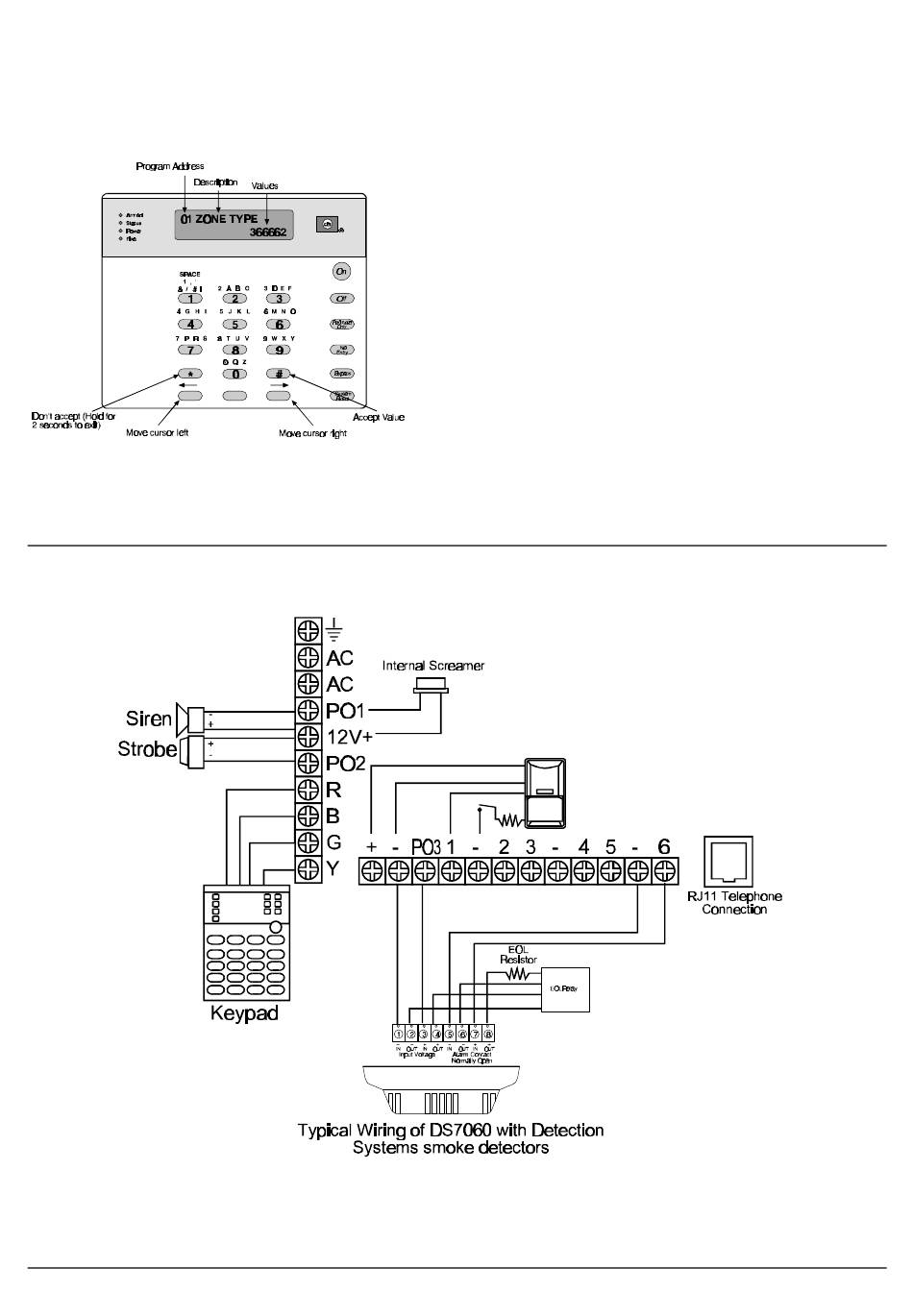

TYPICAL INSTALLATION

Page 1 of 2

Entering programmer mode

•
Enter the programmers code followed by # 0 - the default code is
9876
•
Enter the program address - for example 01
•
Press # to move the cursor to the address values (or * to clear
the address and start again)
•
Enter your selected values - use the cursor keys to select the
correct digit
•
Press # to save these values or * to start again
•
Press * for 2 seconds to exit programmer mode
Note that numbers above 9 are hexadecimal. The HEX character
values are:
*0 = A *1 = B
Quick Start Guide for DS7060 33949E
*2 = C *3 = D *4 = E
Program Address 08 as : 802
PO1 = Burglar/Fire alarm
PO2 = Strobe
PO3 = Power reset for smoke detectors
Copyright © 1997 Detection Systems, Inc.
*5 = F
